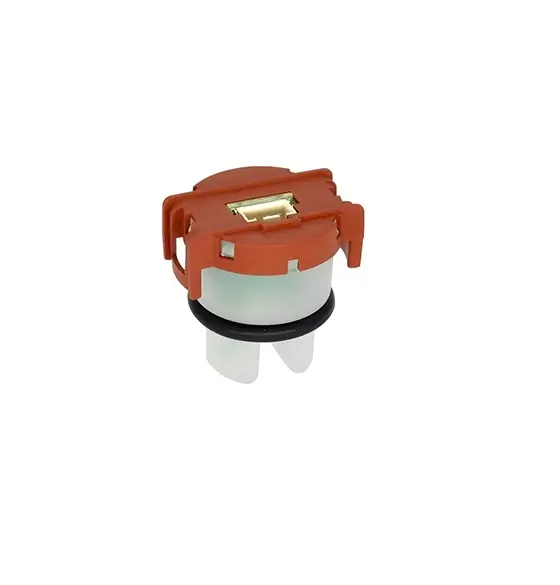

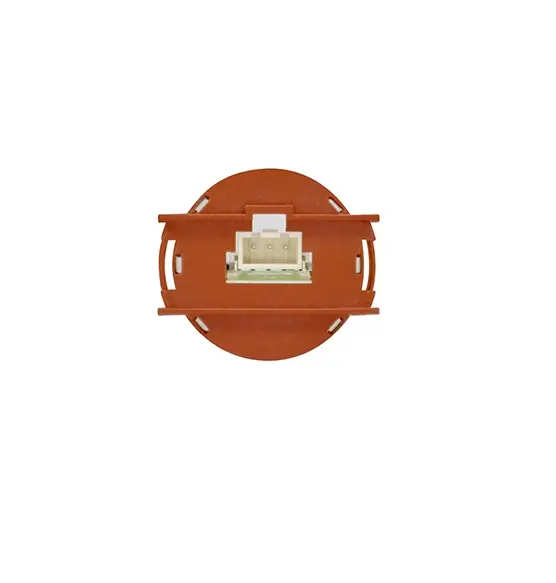

Asair AZDM01 Turbidity Sensor Module - Analog Output
The Asair AZDM01 is an infrared photoelectric turbidity sensor module designed for liquid clarity measurement, providing a direct analog voltage output signal compatible with 5V microcontroller systems like Arduino, Raspberry Pi, and industrial PLCs for water quality monitoring.
Features
- Infrared photoelectric sensing principle for accurate turbidity detection.
- Analog voltage output for direct interfacing with ADC inputs.
- Wide operating temperature range from 4°C to 85°C.
- Waterproof design suitable for continuous liquid immersion applications.
- Low power consumption with typical supply current of 25mA at 5VDC.
Out of stock
The Asair AZDM01 turbidity sensor operates on a photoelectric principle, where an internal infrared LED emits light through a transparent measurement chamber. As liquid flows through, suspended particles scatter and attenuate the light, which is detected by a photosensitive element. This change in light intensity is converted into a corresponding analog voltage signal at the output terminal.
The module is engineered for stability and reliability in aqueous environments, featuring a waterproof housing that protects its internal electronics. With a fast response time and a sampling period of ≥100ms, it is suitable for real-time monitoring in various liquid processing systems, from aquaponics to industrial wastewater treatment.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 6 × 3 cm |
