Arducam B01675MP 5MP 1080p Pan Tilt Zoom PTZ Camera for Raspberry Pi
The Arducam B01675MP is a 5MP PTZ camera module designed for Raspberry Pi 4, 3B+, and 3 models, featuring remote pan, tilt, and optical zoom control via servo motors and a varifocal lens for dynamic monitoring applications.
Features
- True PTZ functionality with servo-controlled pan/tilt and a 3.2-11.1mm varifocal lens for optical zoom, enabling wide-area coverage from a single Raspberry Pi.
- Integrates a 5MP OV5647 sensor capable of 1080p video, with software-switchable IR cut filter for automatic day/night vision switching.

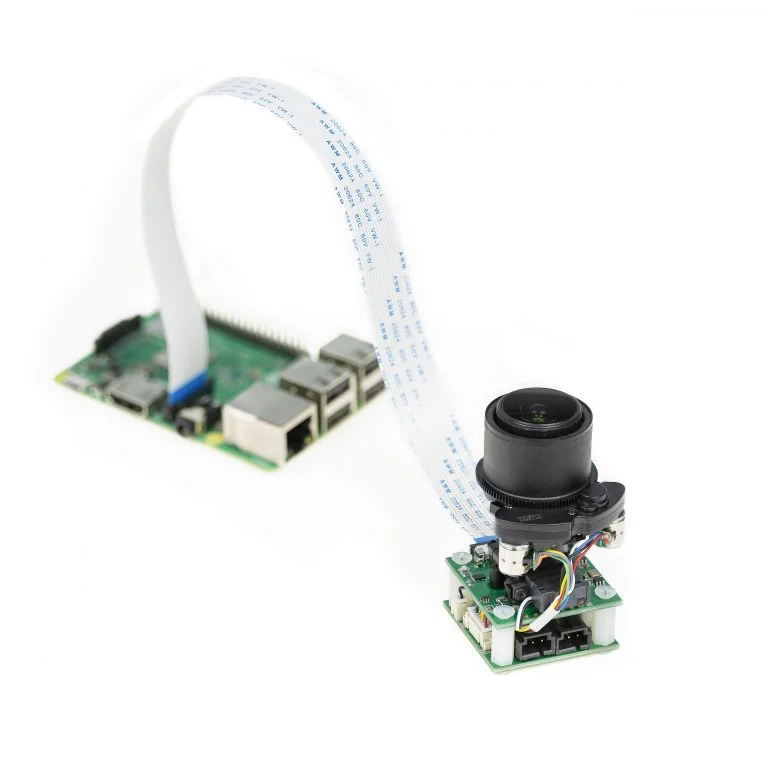

- Direct connection via Raspberry Pi’s CSI interface using the included FPC cable, simplifying hardware setup for surveillance and robotics projects.
- Comprehensive software control for autofocus, PTZ movements, and zoom via keyboard or GPIO, supported by Arducam’s libraries and examples.

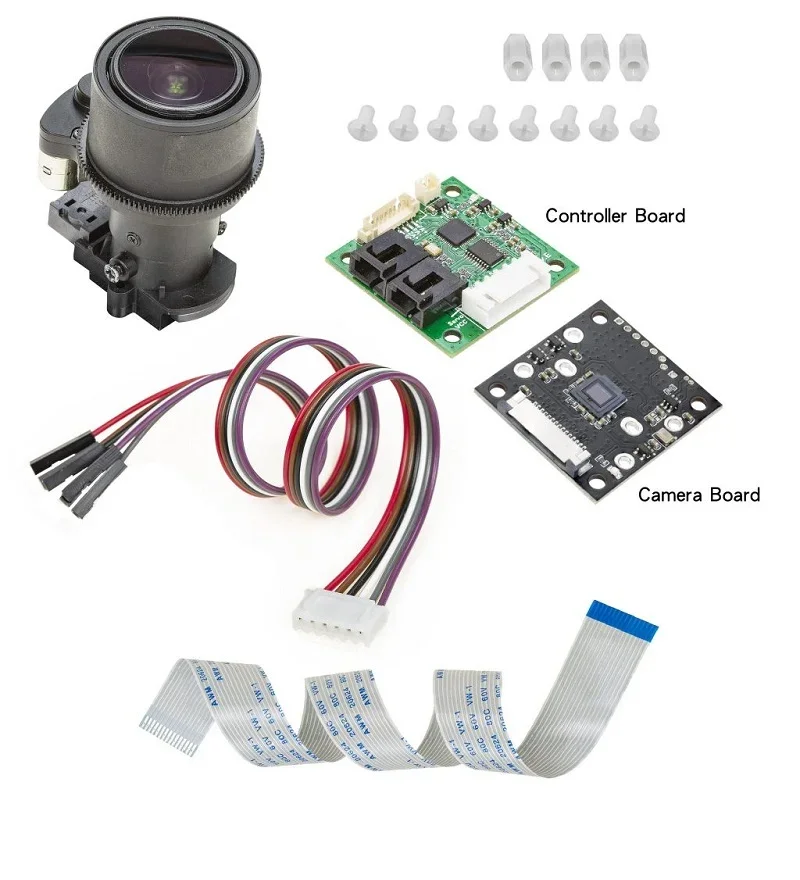

- Complete kit includes PTZ lens assembly, controller board, camera sensor board, FPC cable, and jumper wires for immediate integration.
Out of stock

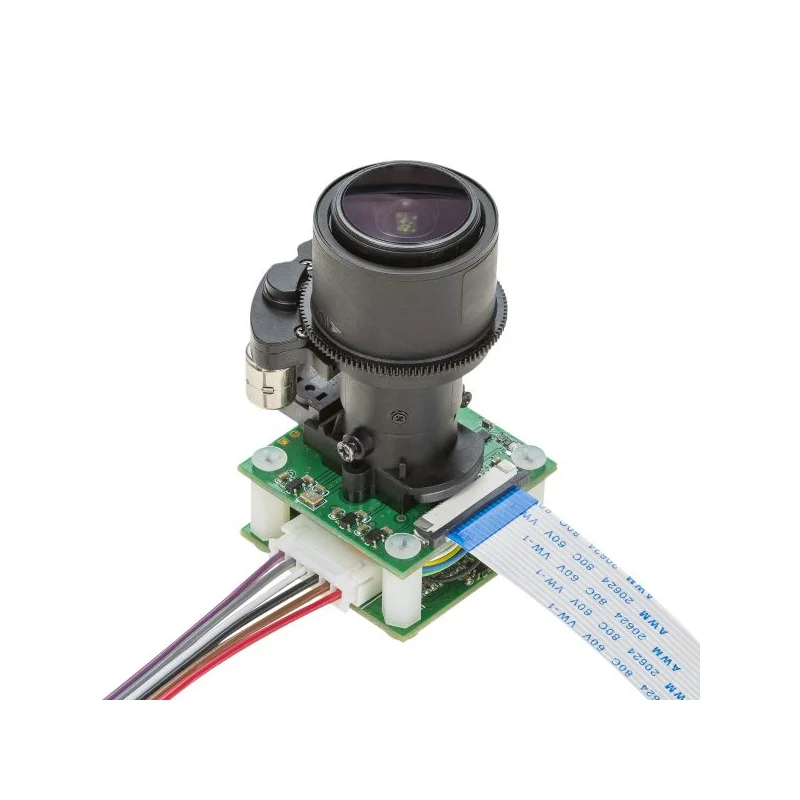

The Arducam B01675MP PTZ Camera brings professional pan, tilt, and zoom capabilities to the Raspberry Pi ecosystem. This module combines a 5MP OV5647 sensor with a motorized 6-element optical zoom lens (3.2-11.1mm) and two servos for precise directional control, allowing a single camera to monitor areas typically requiring multiple fixed units. It connects directly to the Pi’s CSI port, leveraging the full bandwidth of the interface for high-quality 1080p video streaming.
Control is managed through a dedicated controller board, which handles servo PWM signals and lens motor drivers. The system supports software-triggered IR cut filter switching for low-light performance, making it suitable for 24/7 surveillance. Its architecture is ideal for developers building advanced IoT vision systems, robotic platforms, or automated security setups where dynamic framing and detailed inspection are required.
Additional Information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 8 × 11 × 4 cm |
