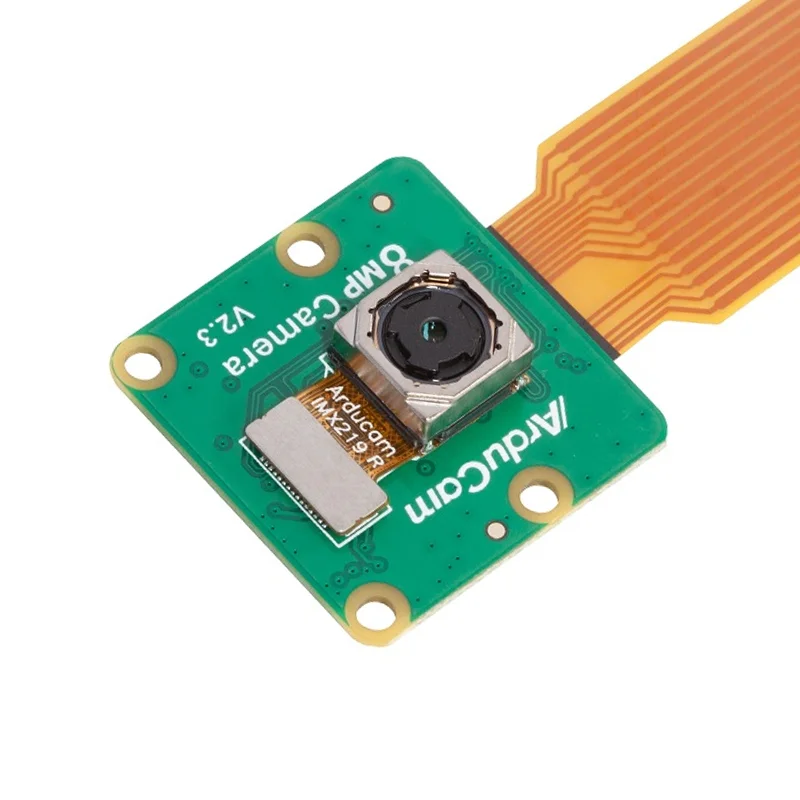

Arducam 8MP IMX219 Auto Focus Camera Module w/ Motorized Lens for Raspberry Pi
The Arducam 8MP IMX219 Auto Focus Camera Module integrates a motorized lens for software-controlled focus, offering programmable auto and manual focus via Python scripts for Raspberry Pi 4B, 3B+, Zero, and Zero 2W.
Features
- 8MP Sony IMX219 sensor delivers 3280 x 2464 resolution stills and video for high-definition imaging.
- Motorized focus lens enables software-controlled auto and precise manual focus via keyboard or Python scripts, eliminating physical lens adjustments.

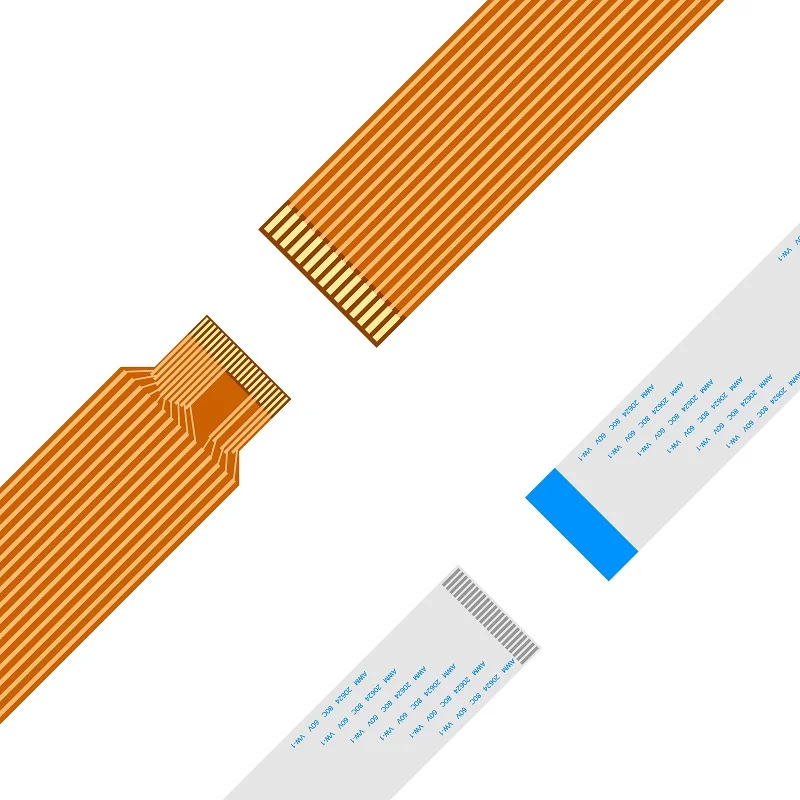

- Wide compatibility with all Raspberry Pi models (1/2/3/4/Zero/Zero 2W) using included 15-22pin and 22-22pin FPC cables.
- 77.6° diagonal field of view with 2.8mm focal length and F2.2 aperture for versatile scene capture.
- Integral IR-cut filter ensures accurate color reproduction for visible light applications like robotics and analytics.
Out of stock
The Arducam 8MP IMX219 Auto Focus Camera Module replaces fixed-focus Raspberry Pi cameras with a software-controlled motorized lens system. This allows developers to programmatically adjust focus via Python scripts using OpenCV, enabling precise manual control or autofocus routines without physical tools.
Built around the Sony IMX219 1/4-inch sensor, the module captures detailed 8-megapixel stills and supports various video modes. Its integrated IR-cut filter ensures optimal color fidelity for computer vision projects, while the broad Raspberry Pi compatibility makes it a drop-in upgrade for drones, robotic systems, and intelligent video analytics platforms.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 10 × 12 × 5 cm |
