Arducam B0032 OV5647 CS-Mount Camera Board for Raspberry Pi
The Arducam B0032 is a 5MP OV5647 sensor camera board with a CS-mount lens, designed for direct connection to Raspberry Pi 4, 3B+, and 3 models via the dedicated CSI interface. It provides stable video capture and supports FREX/STROBE signals for multi-camera synchronization in imaging and monitoring projects.
Features
- 5MP Omnivision OV5647 image sensor delivers 2592×1944 resolution for sharp stills and video.

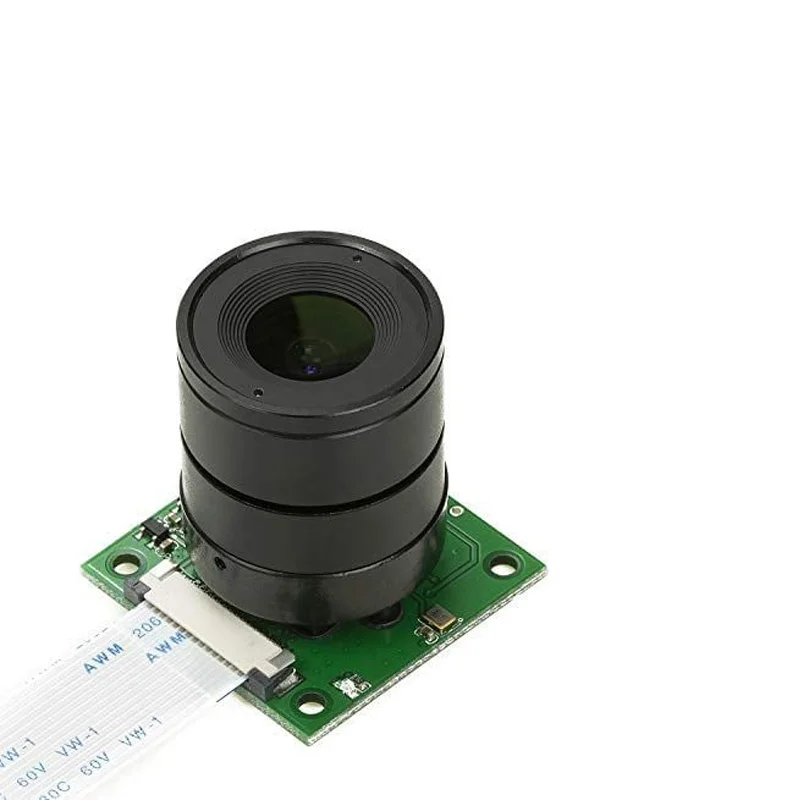

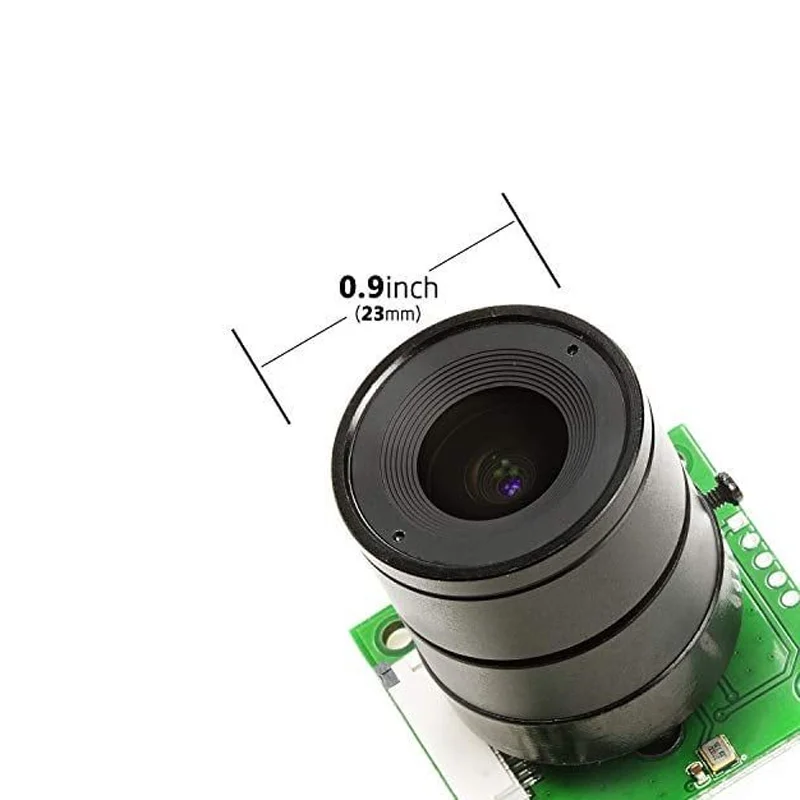

- CS-mount lens compatibility (LS-2717CS) allows for manual focus and potential lens interchangeability.
- Direct Raspberry Pi integration via the dedicated 15-pin CSI interface for fast, stable data transfer.

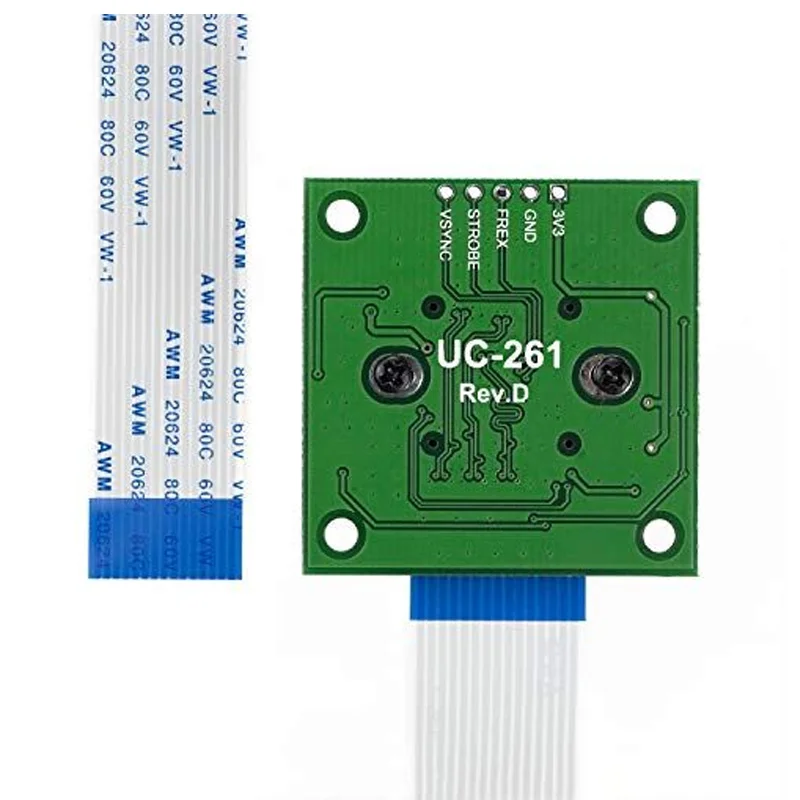

- Supports FREX and STROBE signals for hardware-triggered, synchronized multi-camera capture setups.
- Compact 36x36mm board with included 15-pin and 22-pin FPC cables for flexible Raspberry Pi model compatibility.
Out of stock
The Arducam B0032 camera board integrates the Omnivision OV5647 5-megapixel CMOS sensor into a compact module specifically engineered for Raspberry Pi single-board computers. It connects via the native Camera Serial Interface (CSI), ensuring a high-bandwidth, low-latency pipeline for image and video data, which is critical for real-time applications like monitoring or machine vision.
This revision offers improved optical performance over earlier Pi camera modules, featuring a manual-focus CS-mount lens. The board provides hardware synchronization signals (FREX and STROBE), enabling precise timing for multi-camera arrays—a key requirement for 3D scanning, stereo vision, or high-speed capture systems. With support for video modes up to 1080p@30fps and a peak operating current of 300mA, it balances performance with the power constraints typical of embedded Pi projects.
Additional Information
| Weight | 0.067 kg |
|---|---|
| Dimensions | 3.6 × 3.6 cm |
