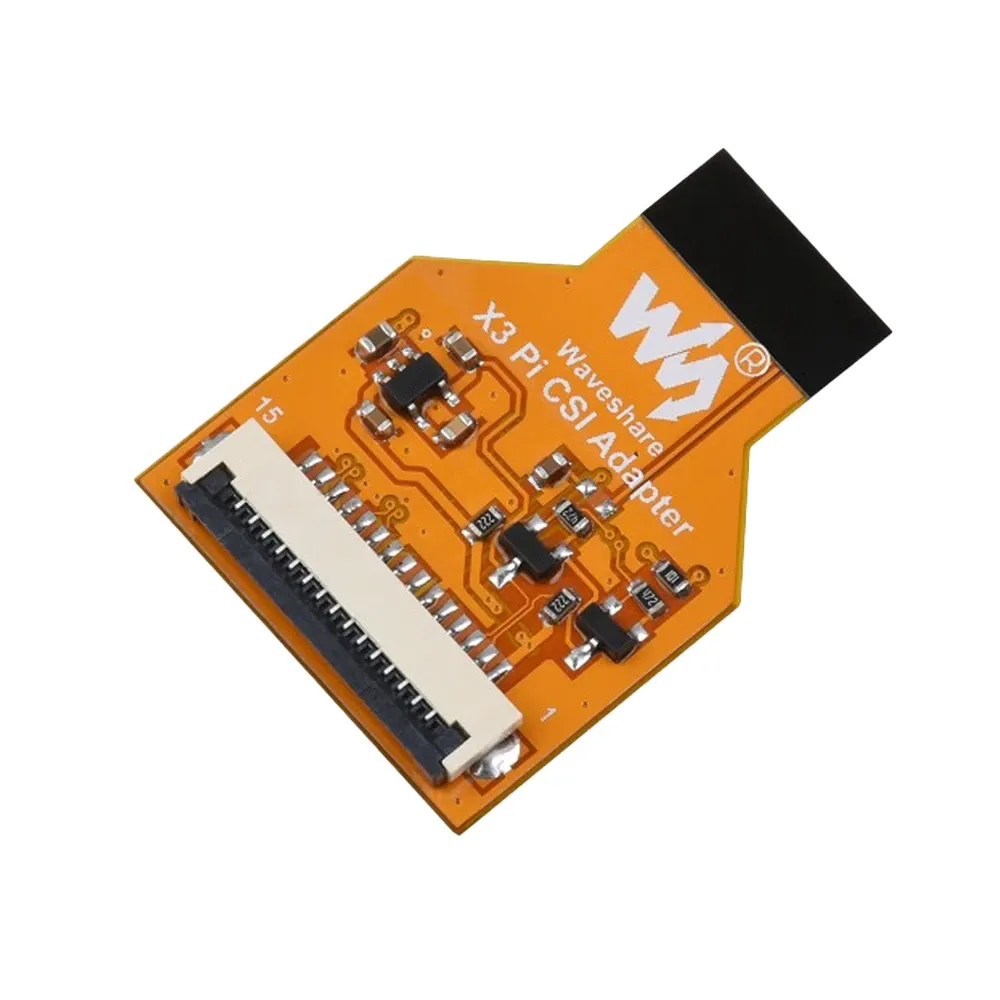

Waveshare CSI Adapter for RDK X3 Board (24PIN to 15PIN)

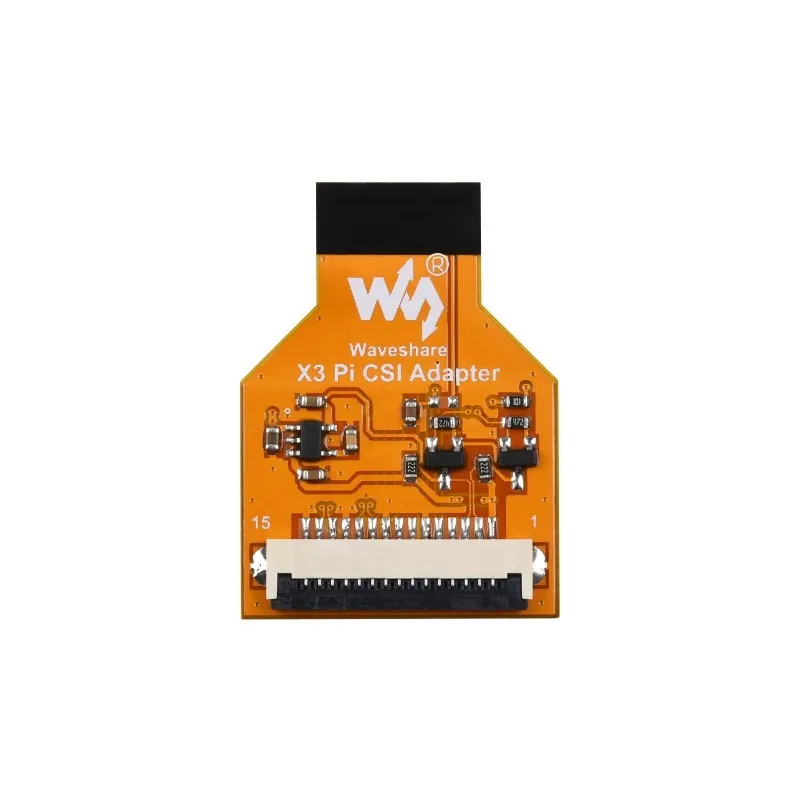

Waveshare CSI Adapter for RDK X3 Board (24PIN to 15PIN) - Image 2
SKU: SBCD-1172
📋 GST Invoice Available

Waveshare CSI Adapter for RDK X3 Board (24PIN to 15PIN)

₹359.00 (Inclusive of all taxes)
Out of Stock

The Waveshare CSI Adapter seamlessly connects Raspberry Pi-compatible camera modules (like OV5647, IMX219, IMX477) to the RDK X3 Development Board via a 24PIN to 15PIN interface, enabling advanced vision applications.

Features

  • 24PIN to 15PIN CSI interface for RDK X3 Development Board.
  • Enables integration of Raspberry Pi CSI camera modules.
  • Compatible with popular sensors like OV5647, IMX219, and IMX477.
  • Ensures stable data transmission for vision-based projects.

Out of stock

Description

The Waveshare CSI Adapter for the RDK X3 Development Board is a compact and reliable solution for integrating Raspberry Pi-compatible CSI camera modules with the RDK X3 platform. Featuring a 24PIN to 15PIN interface conversion, it enables seamless compatibility with popular camera modules such as the OV5647, IMX219, and IMX477.

Its high-quality build ensures stable signal transmission and quick installation. Ideal for developers and engineers working on vision-based AI applications, robotics, or embedded projects, this adapter allows the RDK X3 board to harness the rich ecosystem of Raspberry Pi camera modules with ease and performance.

Key Features

  • Provides 24PIN to 15PIN CSI camera interface conversion.
  • Specifically designed for the RDK X3 Development Board.
  • Ensures compatibility with a wide range of Raspberry Pi CSI camera modules.
  • Supports high-performance sensors including OV5647, IMX219, and IMX477.
  • Facilitates straightforward plug-and-play installation for rapid prototyping.
  • Delivers stable and reliable signal transmission for critical vision applications.

Applications

  • Vision-based AI applications requiring Raspberry Pi camera integration.
  • Robotics projects utilizing embedded vision systems.
  • Embedded development requiring compact camera solutions.
  • Prototyping and testing with various CSI camera modules on RDK X3.

Technical Specifications

Interface24PIN to 15PIN CSI
CompatibilityRDK X3 Development Board
Supported Camera ModulesRaspberry Pi CSI (OV5647, IMX219, IMX477)
Connector TypeStandard CSI Connectors
Length32.87 mm
Width23.88 mm
Weight5 g

Frequently Asked Questions

What is the primary function of the Waveshare CSI Adapter for RDK X3?

This adapter facilitates the connection of standard Raspberry Pi CSI camera modules, such as OV5647, IMX219, and IMX477, to the RDK X3 Development Board. It converts the RDK X3's 24-pin CSI interface to a 15-pin standard, enabling broader camera compatibility for vision projects.

Which camera modules are compatible with this adapter?

The adapter supports popular Raspberry Pi CSI camera modules, specifically mentioning the OV5647, IMX219, and IMX477 sensors. This allows RDK X3 users to leverage a wide array of existing camera hardware designed for the Raspberry Pi ecosystem.

What type of interface conversion does this adapter provide?

The adapter performs a physical conversion from a 24-pin CSI interface, typically found on the RDK X3 Development Board, to a 15-pin CSI interface. This standard 15-pin connector is commonly used by Raspberry Pi camera modules for signal transmission.

What are the main benefits of using this adapter with the RDK X3?

Using this adapter enables the RDK X3 to access the vast ecosystem of Raspberry Pi camera modules, significantly expanding its capabilities for vision-based applications. It offers stable data transmission and a plug-and-play installation for efficient development.

Package Includes

  • 1 × Waveshare CSI Adapter for RDK X3 Development Board (24PIN to 15PIN)

Additional Information

Weight 0.005 kg
Dimensions 3.287 × 2.388 cm
