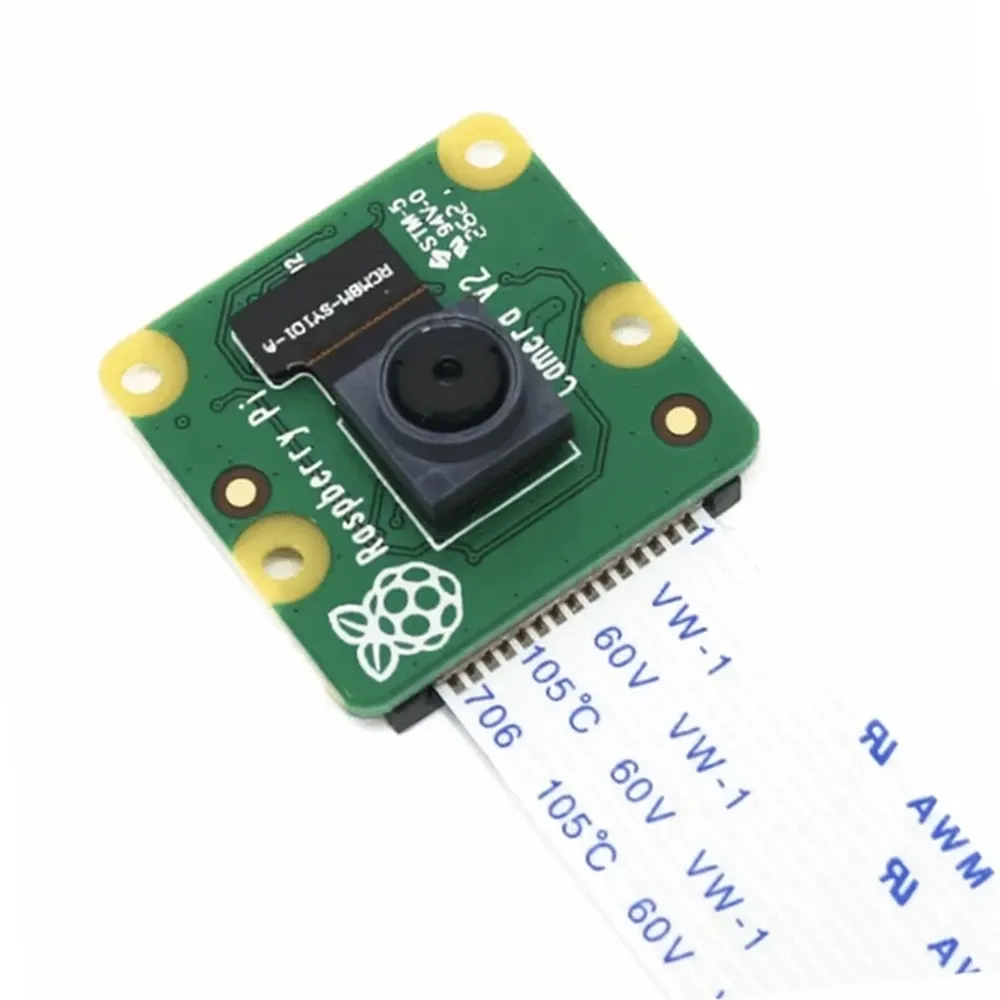

Raspberry Pi Camera V2 (Official)
The Official Raspberry Pi Camera Module V2 features an 8-megapixel Sony IMX219 sensor with a fixed-focus lens, capable of capturing 3280×2464 pixel static images and supporting 1080p30, 720p60, and 640x480p90 video. Designed for seamless integration, it connects directly to your Raspberry Pi board via the dedicated CSI interface and included ribbon cable.
Features
- Features an 8-megapixel Sony IMX219 sensor for high-resolution imaging.
- Captures static images at 3280 x 2464 pixels with a fixed-focus lens.
- Supports versatile video recording: 1080p30, 720p60, and 640x480p90.
- Integrates seamlessly with all Raspberry Pi models via the dedicated CSI camera interface.
Out of stock
The Official Raspberry Pi Camera Module V2 provides a robust imaging solution for your Raspberry Pi projects, featuring a high-quality 8-megapixel Sony IMX219 image sensor. This custom-designed add-on board includes a fixed-focus lens, enabling the capture of sharp 3280 x 2464 pixel static images. Beyond still photography, it supports versatile video recording capabilities, including 1080p at 30 frames per second, 720p at 60 frames per second, and 640×480 resolution at up to 90 frames per second.

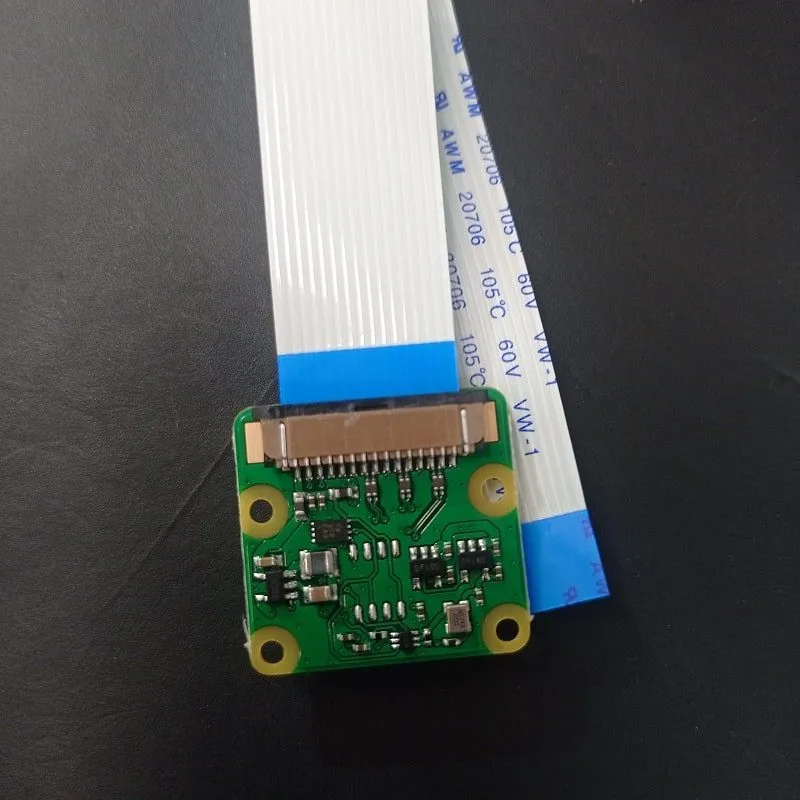

Connecting to your Raspberry Pi is straightforward, utilizing one of the small dedicated CSI (Camera Serial Interface) sockets on the board’s upper surface via a supplied ribbon cable. The compact size of 25mm x 23mm x 9mm and a weight of just over 3g make it ideal for mobile, drone, and space-constrained applications. It is fully compatible with Raspberry Pi 1, 2, and 3 models, and its functionality is supported within the latest versions of the Raspbian operating system. Developers can access the camera through MMAL and V4L APIs, with extensive support from third-party libraries like Picamera for Python.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.5 × 2.3 × 0.9 cm |
