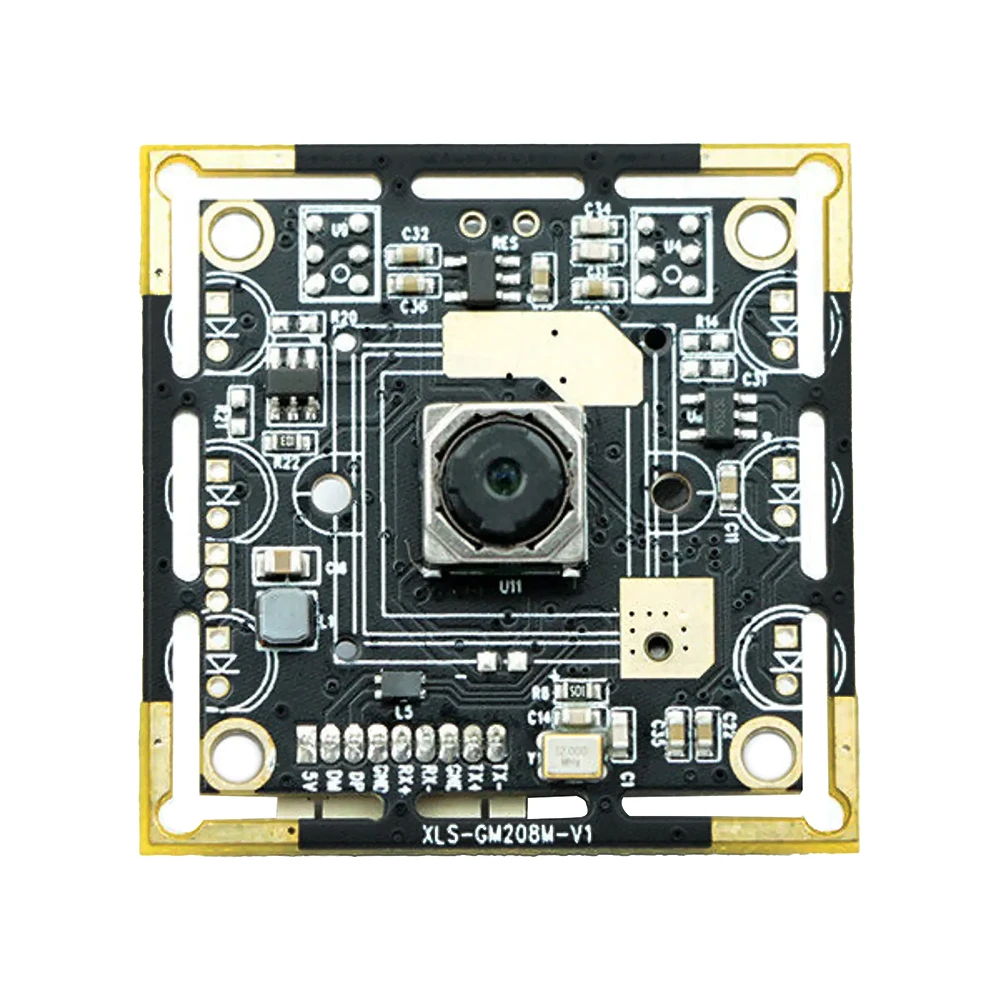

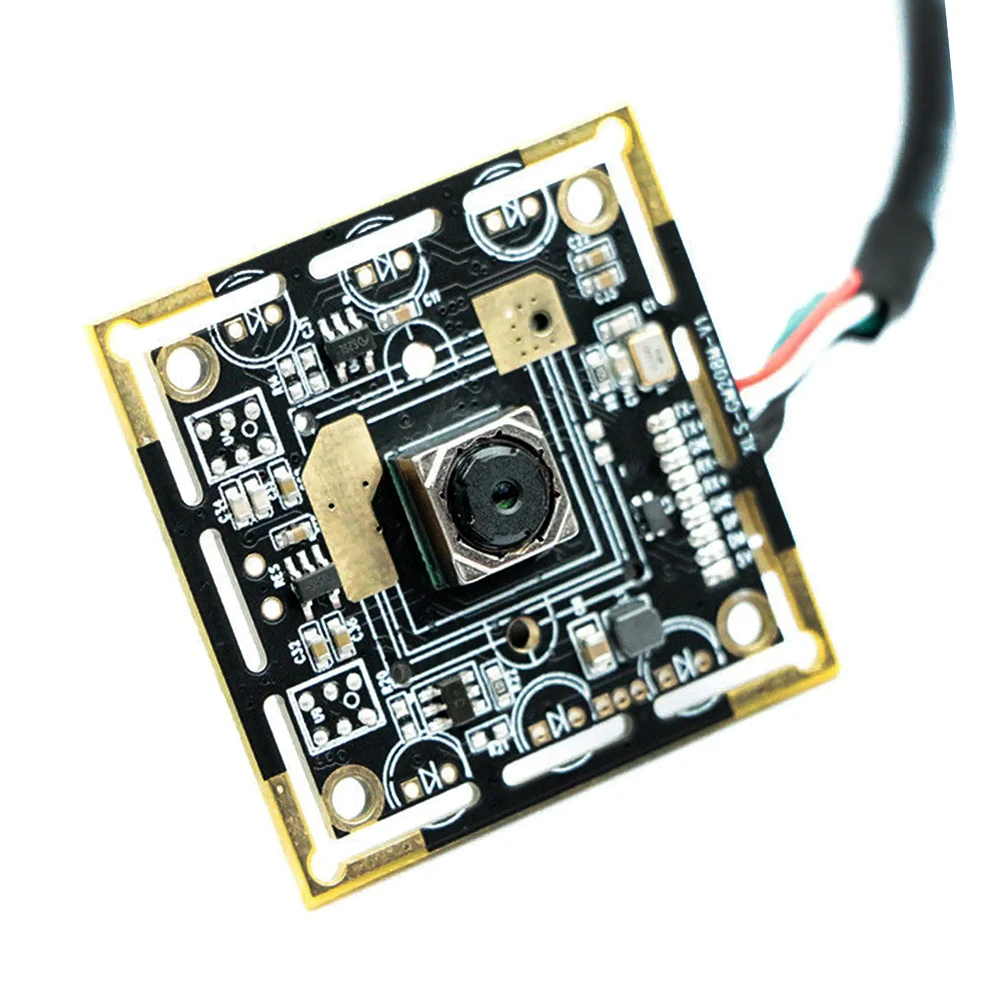

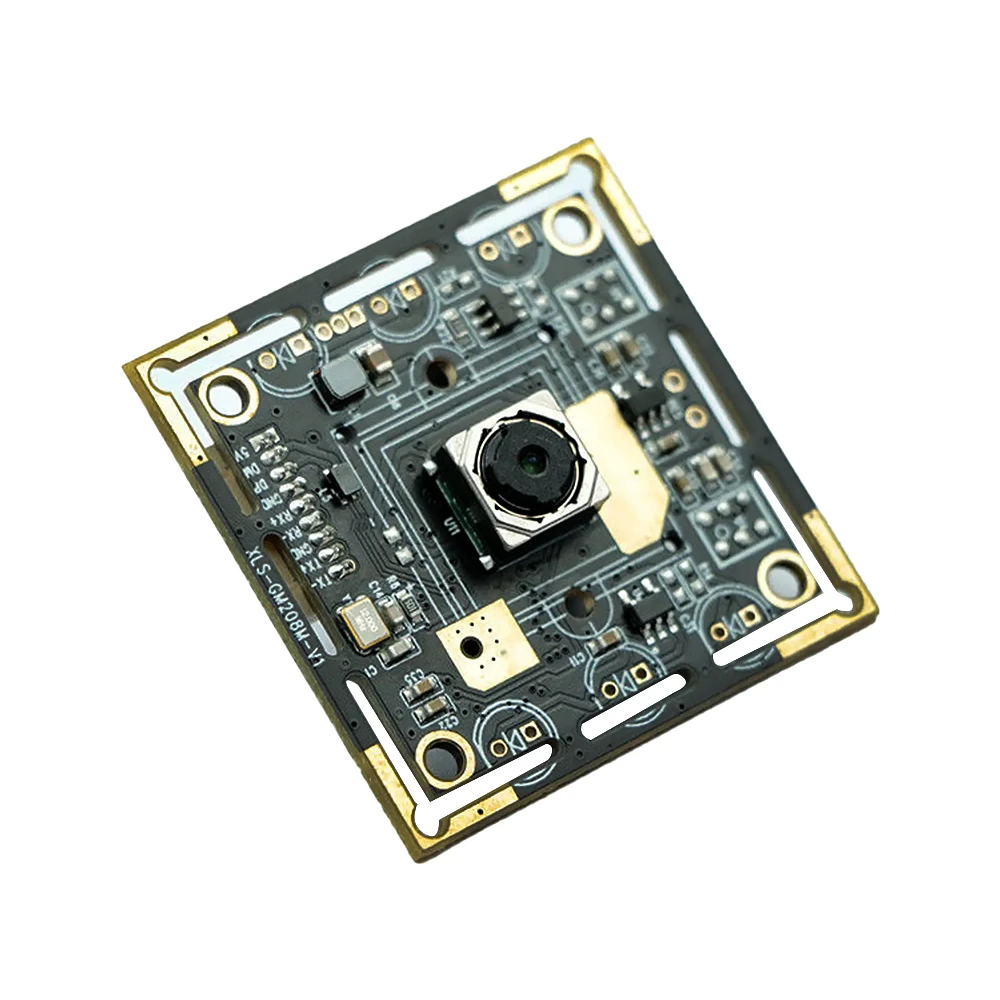

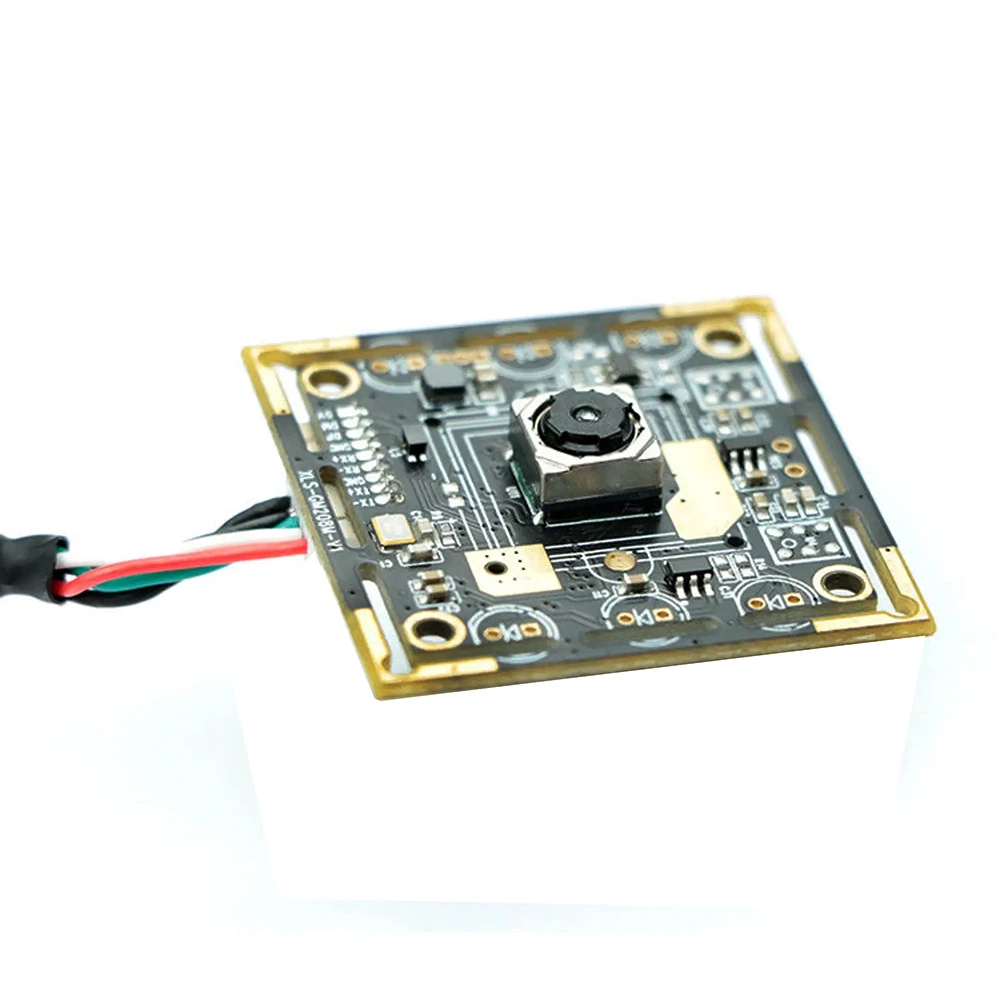

SinoSeen 8MP USB 3.0 Camera Module w/ Sony IMX179

No additional drivers are required for most operating systems. The module is UVC (USB Video Class) compliant, meaning it will be recognized as a standard webcam by Windows, Linux, Mac OS, and Android. You can access the video stream using any application that supports webcams, such as OBS Studio, VLC, OpenCV, or native camera apps. For advanced parameter control, you may use platform-specific camera configuration tools or SDKs.

The module is designed for USB bus power and operates at a standard 5V DC supply. It draws approximately 200mA of current during operation. You must use a USB 3.0 port or a powered USB 2.0 hub that can provide sufficient power. The included USB 3.0 Type-C cable supplies both data and power, simplifying the connection. Ensure your host device's USB port can deliver the required 5V/1A to be safe, especially when using extension cables.

This module features a fixed-focus lens, meaning the focal distance is set at the factory and cannot be manually adjusted. However, you can control various image parameters digitally through software. Using UVC extension units or compatible software, you can adjust settings like brightness, contrast, saturation, sharpness, exposure (auto/manual), white balance, and gain. These adjustments are made via standard UVC controls supported by many video capture applications and libraries.

The camera supports its native 8MP resolution of 3264 x 2448 (4K UHD) at up to 60 frames per second, depending on the selected output format and host system performance. It also supports standard lower resolutions like 1080p (1920x1080) and 720p (1280x720) at higher frame rates. The available frame rates for each resolution are enumerated by the UVC driver when you connect the device. Performance is optimal over a USB 3.0 connection to handle the high data rate of 4K streaming.

Yes, the Sony IMX179 sensor is known for its good low-light performance due to its 1.4μm pixel size, which allows it to capture more light. The module provides software-controlled parameters like exposure time and gain to further improve image quality in dim conditions. For best results in low light, use a manual exposure mode, increase the gain setting, and consider the MJPG compression format which can sometimes preserve more detail than YUY2 in challenging lighting.
