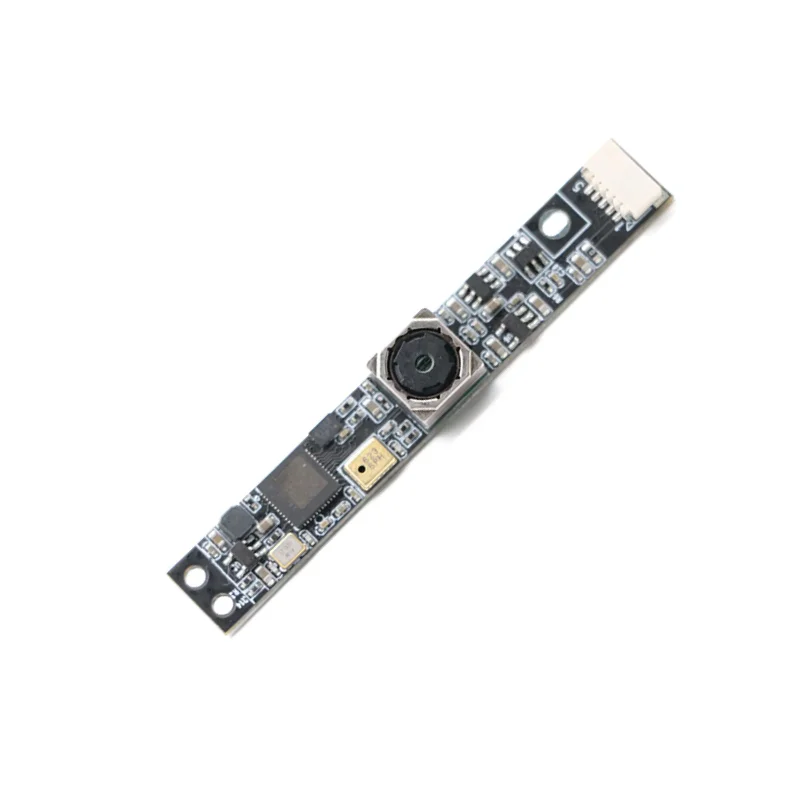

SinoSeen Strip Shape 8MP Raspberry Pi Camera Module USB2.0 w/ Microphone

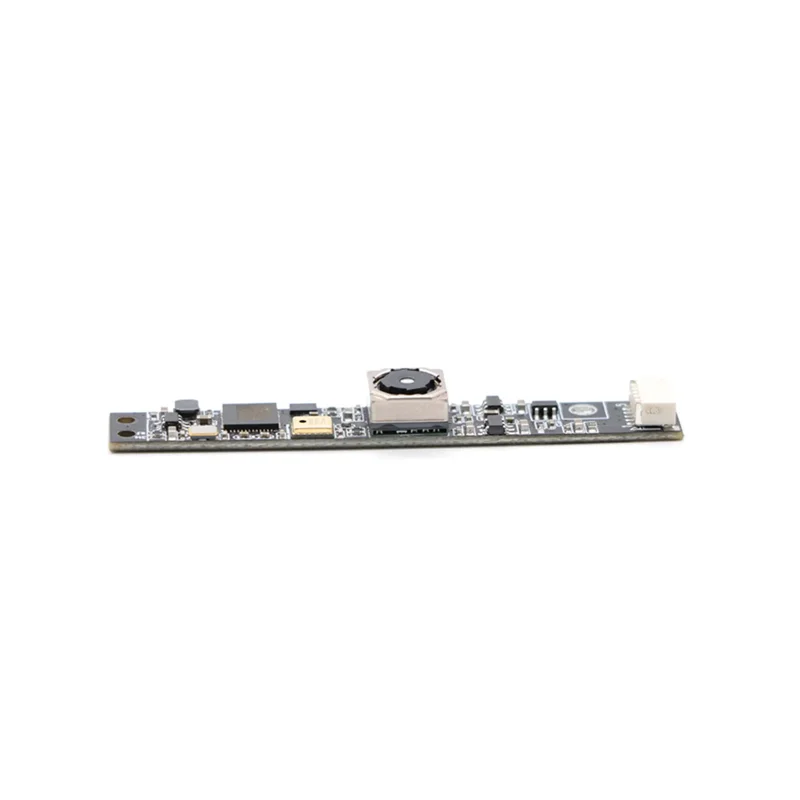

SinoSeen Strip Shape 8MP Raspberry Pi Camera Module USB2.0 w/ Microphone - Image 2
SKU: IOWC-0459
📋 GST Invoice Available

SinoSeen Strip Shape 8MP Raspberry Pi Camera Module USB2.0 w/ Microphone

₹2,629.00 (Inclusive of all taxes)
Out of Stock

The SinoSeen Strip Shape 8MP Camera Module is a compact USB 2.0 vision sensor built around the Sony IMX179 CMOS sensor, featuring an integrated microphone and autofocus. Its ultra-slim 62x9mm form factor makes it ideal for space-constrained installations in smart devices, kiosks, and Raspberry Pi or Linux-based AI vision projects.

Features

  • 8MP Sony IMX179 Sensor: Delivers sharp 3264 x 2448 resolution images with reliable low-light performance for clear video capture.
  • Ultra-Slim Strip Design (62x9mm): Enables installation in tight spaces like smart doorbells, tablets, and embedded systems.
  • Integrated Autofocus & Microphone: Features autofocus from 10cm to infinity and built-in audio capture for complete multimedia applications.
  • Wide 78° Field of View: Provides a broad perspective with a 5P+IR lens, minimizing distortion for comprehensive scene coverage.
  • Plug-and-Play USB 2.0: Offers broad compatibility with Windows, Mac, Linux, and Android systems for rapid prototyping and deployment.

Out of stock

Description

The SinoSeen Strip Shape 8MP Camera Module integrates a high-performance Sony IMX179 CMOS sensor into an exceptionally slim 62mm by 9mm PCB. This design prioritizes minimal footprint without compromising on core imaging capabilities, making it a specialized solution for embedded vision systems where space is at a premium. The module supports autofocus across a practical range and includes an onboard microphone, providing both visual and audio data capture over a single USB 2.0 interface.

Engineered for developer and integrator flexibility, the camera operates on a standard USB Video Class (UVC) protocol, ensuring plug-and-play functionality across major desktop and mobile operating systems. Its 78-degree field of view with a multi-element lens assembly balances wide-angle coverage with low distortion, suitable for applications ranging from teleconferencing to machine vision. The combination of a reliable sensor, integrated audio, and a form-factor-driven design makes this module a practical choice for upgrading or prototyping smart devices, interactive kiosks, and IoT endpoints requiring compact vision sensing.

Key Features

  • High-resolution 8-megapixel imaging powered by the trusted Sony IMX179 CMOS sensor.
  • Ultra-compact strip-shaped PCB (62mm x 9mm) for seamless integration into space-limited enclosures.
  • Integrated autofocus system with a focus range from 10 centimeters to infinity.
  • Onboard microphone enables synchronized audio and video capture for multimedia applications.
  • Wide 78-degree field of view provided by a 5P+IR lens assembly for broad scene coverage.
  • Universal USB 2.0 UVC interface ensures plug-and-play compatibility without custom drivers.
  • Broad OS support for Windows, macOS, Linux, and Android-based development platforms.
  • Low-distortion optics deliver clear image quality suitable for computer vision and monitoring tasks.

Applications

  • Smart Doorbells & Security: Provides compact, high-resolution video and audio feed for home automation and surveillance systems.
  • Interactive Kiosks & Vending Machines: Enables face detection, user interaction analytics, and touch-free interfaces in public terminals.
  • Embedded AI Vision: Serves as a vision sensor for Raspberry Pi, NVIDIA Jetson, or Linux SBCs running OpenCV, TensorFlow Lite, or other ML frameworks.
  • Teleconferencing & Streaming: Functions as a slim-profile webcam for video calls, live streaming, and content creation on PCs and single-board computers.
  • Portable & Tablet Integration: Ideal for adding camera functionality to custom tablets, handheld devices, and mobile data collection units.

Technical Specifications

Sensor ModelSony IMX179 CMOS
Resolution8MP (3264 x 2448)
Sensor Size1/3.2 inch
Lens Focal Length3.5mm
Aperture (F)F2.2
Focus TypeAuto Focus
Field of View (FOV)78°
InterfaceUSB 2.0
AudioIntegrated Microphone
Dimensions (L x W)62mm x 9mm
Weight4g
Compatible OSWindows, Mac, Linux, Android

Frequently Asked Questions

What operating systems are compatible with this SinoSeen USB camera module?

The module uses a standard USB Video Class (UVC) driver, making it plug-and-play compatible with Windows 7/10/11, macOS, most Linux distributions (including Raspberry Pi OS), and Android. No proprietary drivers are required for basic video functionality, ensuring quick setup for development on platforms like the Raspberry Pi, Jetson Nano, or standard PCs.

How do I connect and use this camera module with a Raspberry Pi?

Simply connect the module's USB cable to a free USB port on your Raspberry Pi. The Pi will recognize it as a standard UVC webcam. You can then access the video feed using software like OpenCV, VLC, or Motion. For Python development, use the `cv2.VideoCapture()` function with the appropriate device index. The integrated microphone audio stream is typically accessible as a separate ALSA audio input device on the Pi.

What is the effective focus range and how does the autofocus work?

The camera's autofocus system operates from a minimum distance of 10 centimeters (approx. 4 inches) to infinity. It uses a contrast-detection autofocus algorithm, which adjusts the lens element automatically to achieve the sharpest possible image. The focus is managed internally by the camera's controller; no manual configuration or external commands are needed for basic operation, making it ideal for fixed-installation applications.

Can this camera module be used for computer vision and AI projects?

Yes, its 8MP Sony IMX179 sensor provides sufficient resolution for tasks like object detection, facial recognition, and optical character recognition (OCR). The USB 2.0 interface offers a stable data stream for processing with libraries like OpenCV, TensorFlow Lite, or PyTorch on a Raspberry Pi, Linux PC, or edge AI device. The slim form factor is particularly advantageous for embedding vision into final products like smart appliances or kiosks.

What are the physical dimensions and how should it be mounted?

The PCB measures 62mm in length and only 9mm in width, with a thickness determined by the sensor and lens stack. It is designed for surface mounting within an enclosure. For secure installation, use the mounting holes on the PCB or adhesive pads, ensuring the lens aperture has a clear, unobstructed view. The flexible cable should be routed to avoid strain on the USB connector for long-term reliability.

Package Includes

  • 1 x SinoSeen Strip Shape 8MP Raspberry Pi Camera Module (USB 2.0 with Microphone)

Additional Information

Weight 0.004 kg
Dimensions 6.2 × 0.9 cm
