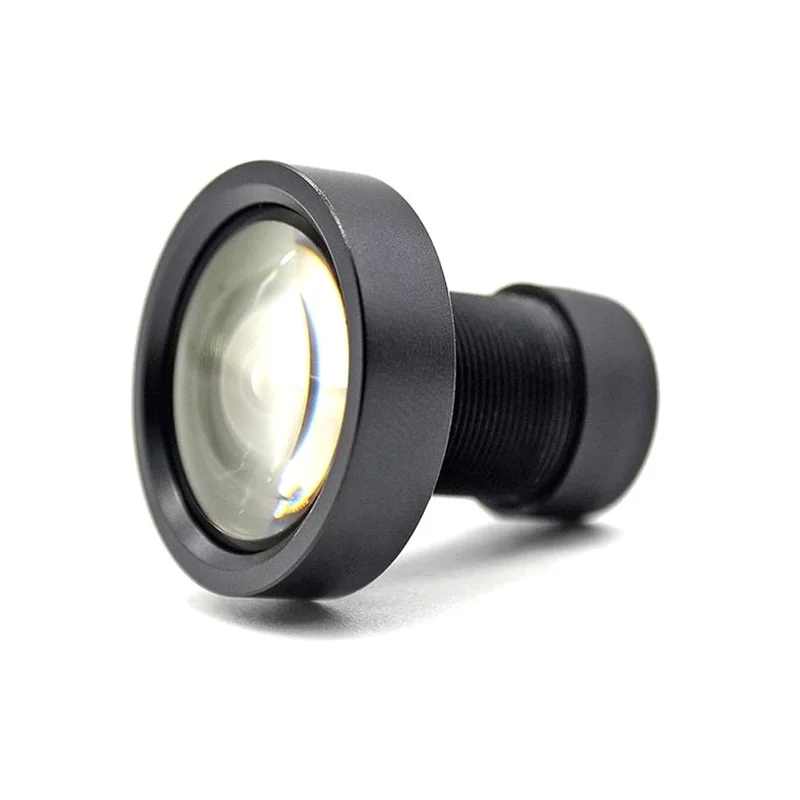

EDATEC 8MP 4.5mm M12 Lens for Raspberry Pi Camera

Yes, this EDATEC 8MP 4.5mm M12 lens is directly compatible with the official Raspberry Pi Camera Module v2, which features a standard M12 lens mount. Simply unscrew the default lens from the camera module's housing and screw this lens in its place. Ensure the camera is powered off during the swap and handle the sensor and lens threads carefully to avoid dust or damage. You may need to adjust focus by slightly rotating the lens after installation for optimal sharpness.

To install, first power down your Raspberry Pi. Gently unscrew the existing lens from the camera module's M12 thread. Screw the new EDATEC lens onto the threads, turning clockwise until snug but not overtightened. To focus, point the camera at a detailed subject roughly at your desired working distance. While viewing a live preview (using software like `rpicam-hello`), slowly rotate the lens to adjust focus until the image is sharp. You may need to lock the focus in place with a drop of thread-locker for permanent installations subject to vibration.

The 4.5mm focal length provides a wide-angle field of view. The exact horizontal and vertical angles depend on the specific camera sensor's size. On a standard Raspberry Pi Camera Module v2 sensor, a 4.5mm lens typically yields a horizontal field of view around 70-80 degrees, making it suitable for capturing broad scenes like room monitoring, robotics navigation, or group photography without requiring excessive distance from the subjects.
