Arducam B0066 5MP OV5647 Mini USB Camera Module w/ 300mm Flex Cable

No, this specific B0066 module is designed for the standard Raspberry Pi CSI port found on models like the Pi 4, 3B+, and 3. For the Raspberry Pi Zero, which uses a smaller CSI connector, you need the dedicated Arducam model with SKU 'B006603'. Attempting to use this module directly with a Pi Zero will require a physical adapter and may not be supported by the standard Raspberry Pi camera software stack.

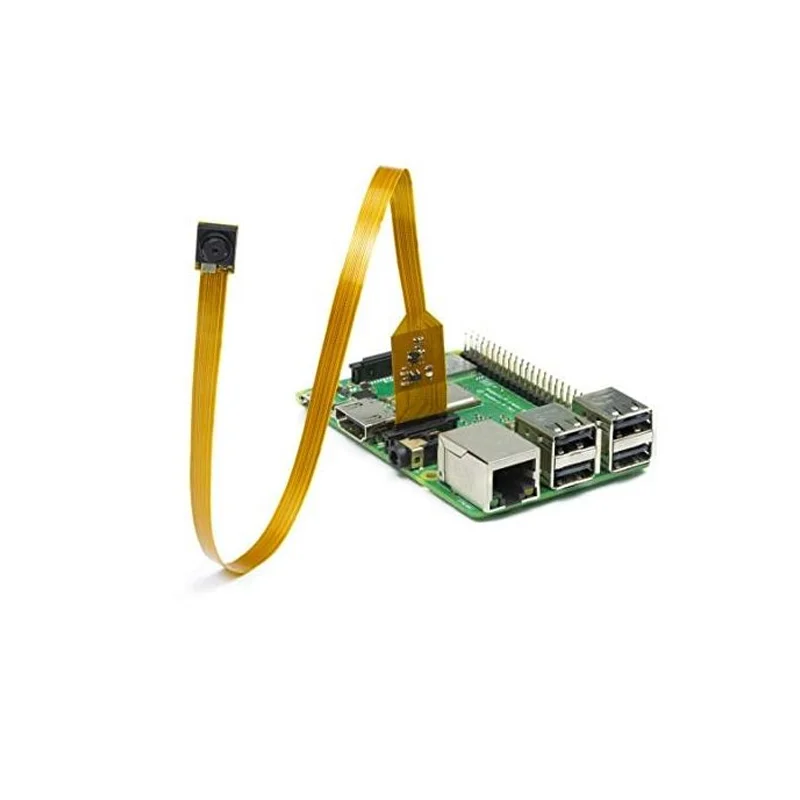

First, ensure your Raspberry Pi's CSI camera interface is enabled. Use 'sudo raspi-config', navigate to 'Interface Options', select 'Camera', and enable it. Connect the module's flex cable to the Pi's CSI port with the blue contacts facing the Ethernet/USB ports. After a reboot, test the camera using the 'libcamera-hello' command for a preview or 'libcamera-jpeg -o test.webp' to capture a still image. For legacy software, you may need to enable the legacy camera stack in raspi-config.

The standard Arducam B0066 includes an integral infrared (IR) cut filter that blocks IR light, ensuring accurate color reproduction under normal visible light. The NoIR (No Infrared filter) version lacks this filter, making it sensitive to both visible and infrared light. The NoIR variant is essential for applications like night vision (with IR illuminators), plant health monitoring using NDVI, or any machine vision task requiring IR spectrum data. Choose based on your project's lighting and spectral requirements.

No, the Arducam B0066 features a fixed-focus lens, meaning the focus is set at the factory and cannot be manually adjusted. The lens is optimized for a focus distance ranging from approximately 1 meter to infinity, providing sharp images for most general-purpose applications. If your project requires macro capabilities or precise focus adjustment at very short distances, you would need to source a camera module with a adjustable-focus or varifocal lens mechanism.

The camera module is powered directly through the Raspberry Pi's CSI interface, drawing a peak current of up to 300mA. No external power supply is needed. Ensure your Raspberry Pi's power adapter can provide sufficient current for both the Pi board and the connected peripherals, including the camera. A stable 5V/2.5A or higher power source for the Pi is recommended to prevent brownouts during high-resolution video capture or when other USB devices are connected.
