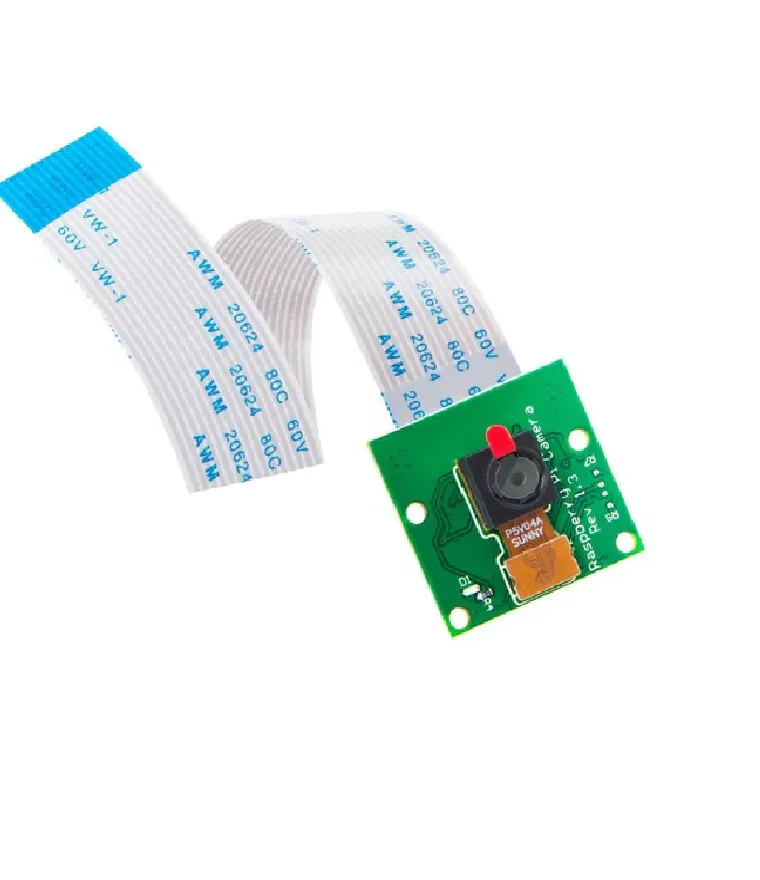

Raspberry Pi 5MP Camera Module - Pi 3/4 Rev 1.3

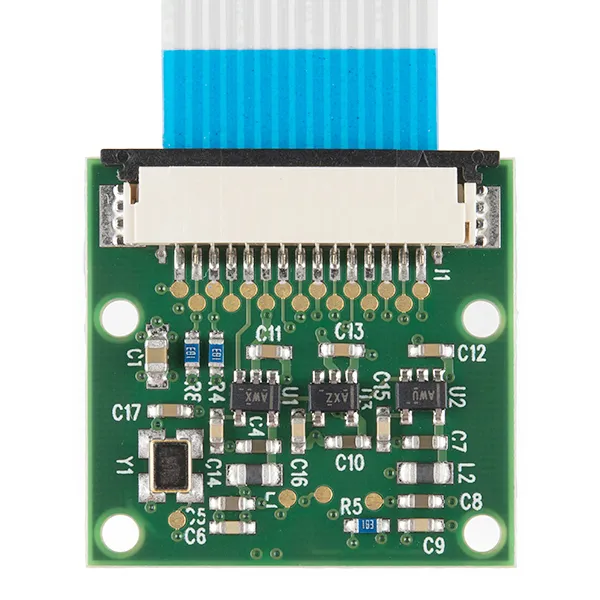

Raspberry Pi 5MP Camera Module - Pi 3/4 Rev 1.3 - Image 2

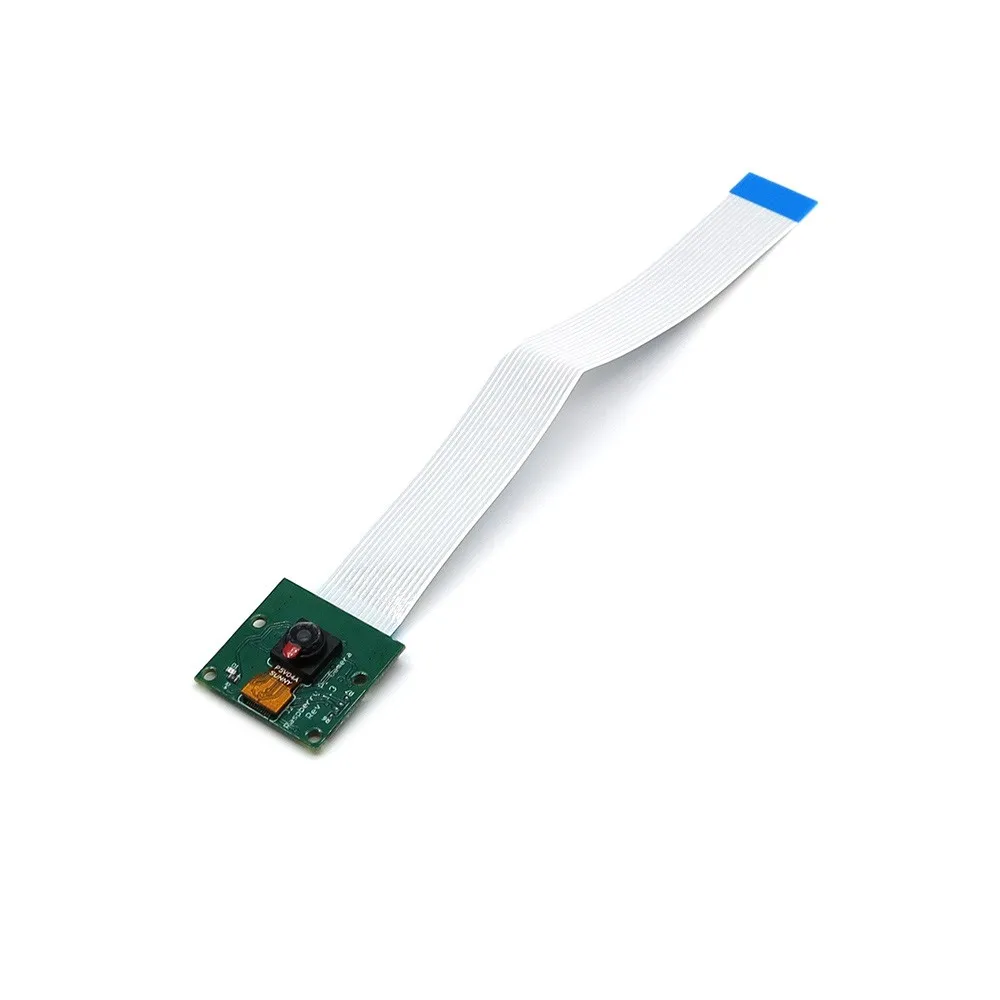

Raspberry Pi 5MP Camera Module - Pi 3/4 Rev 1.3 - Image 3
SKU: SBCD-0970
📋 GST Invoice Available

Raspberry Pi 5MP Camera Module - Pi 3/4 Rev 1.3

₹309.00 (Inclusive of all taxes)
Out of Stock

<p>Capture high-quality images and 1080p HD video with this compact 5MP Raspberry Pi Camera Module, designed specifically for Raspberry Pi 3 and 4 via its dedicated CSI interface. Its plug-and-play setup makes it ideal for integrating into drones, CCTV systems, or various DIY projects requiring a small footprint.</p>

Features

<ul class="key-bullets"><li>High-resolution 5MP sensor capable of capturing detailed images and 1080p HD video.</li><li>Direct plug-and-play integration with Raspberry Pi 3 and 4 via the dedicated CSI camera interface.</li><li>Compact and lightweight form factor perfect for embedded and space-constrained applications.</li><li>Comes with a flexible ribbon cable for versatile positioning and straightforward setup.</li><li>Seamlessly compatible with Raspbian OS, requiring no additional driver installation.</li></ul>

Out of stock

Description

<p>This 5MP Raspberry Pi Camera Module, Revision 1.3, provides a robust imaging solution for your Raspberry Pi 3 and 4 projects. Engineered for seamless integration, it connects directly to the Raspberry Pi’s Camera Serial Interface (CSI) port, enabling high-speed data transfer optimized for video and still image capture without the need for external adapters.</p><p>Equipped with an Omnivision 5647 fixed-focus sensor, the module delivers crisp 5-megapixel photographs and supports multiple video formats including 1080p at 30fps, 720p at 60fps, and VGA at 90fps. Its compact dimensions and inclusion of a flexible ribbon cable make it particularly well-suited for applications where space is a premium, facilitating deployment in diverse scenarios from robotics and surveillance to custom embedded devices.</p><p>Designed for ease of use, the camera is fully supported by the standard Raspbian operating system, ensuring a hassle-free setup process without the complexity of installing proprietary drivers. This dedicated design ensures optimal performance and reliability, making it an excellent choice for developers and makers looking to add visual capabilities to their Raspberry Pi-based creations.</p>

Key Features

<ul class="tech-features-list"><li>Features a 5 Megapixel Omnivision 5647 fixed-focus sensor for detailed image capture.</li><li>Supports high-definition video recording in 1080p at 30fps, 720p at 60fps, and VGA at 90fps.</li><li>Utilizes a dedicated Camera Serial Interface (CSI) for high-speed, direct connection to Raspberry Pi boards.</li><li>Fully compatible with Raspberry Pi 3 and Raspberry Pi 4 models, ensuring broad usability.</li><li>Compact and lightweight form factor, ideal for integration into drones, CCTV, and embedded projects.</li><li>Includes a flexible ribbon cable to facilitate versatile mounting and connection in confined spaces.</li><li>Offers plug-and-play operation with Raspbian OS, eliminating the need for complex driver installations.</li><li>Equipped with a fixed focal length of 3.29mm and a wide 72.4&deg; field of view.</li></ul>

Applications

<ul class="product-applications-list"><li>Embedded vision systems for robotics and drones.</li><li>CCTV and surveillance systems for home or small business security.</li><li>Custom hidden camera or miniature camera projects.</li><li>DIY Raspberry Pi-based smart phones or portable devices.</li><li>Time-lapse photography and environmental monitoring.</li></ul>

Technical Specifications

<table class="tech-specs-table"><tbody><tr><th>Item Type</th><td>Camera Module</td></tr><tr><th>Resolution (Stills)</th><td>5MP (2592 x 1944 pixels)</td></tr><tr><th>Sensor</th><td>Omnivision 5647 fixed-focus</td></tr><tr><th>Operating Voltage</th><td>3.3V</td></tr><tr><th>Lens Focus</th><td>Fixed Focus</td></tr><tr><th>Interface Type</th><td>CSI (Camera Serial Interface)</td></tr><tr><th>Aperture (F)</th><td>2.9</td></tr><tr><th>Focal Length</th><td>3.29 mm</td></tr><tr><th>Angle (FOV)</th><td>72.4&deg;</td></tr><tr><th>Dimensions (L x W)</th><td>25 x 23 mm</td></tr><tr><th>Weight</th><td>3 g</td></tr></tbody></table>

Frequently Asked Questions

What Raspberry Pi models are compatible with this 5MP camera module?

This 5MP camera module, Revision 1.3, is fully compatible with Raspberry Pi 3 and Raspberry Pi 4 Model B boards. It connects directly to the dedicated CSI (Camera Serial Interface) port available on these Raspberry Pi models, ensuring optimal performance and seamless integration for your projects.

Does this camera module support audio recording?

No, this specific 5MP Raspberry Pi camera module (Rev 1.3) is designed solely for capturing still images and video. It does not include a microphone or support for audio input. For projects requiring audio, an external USB microphone or a separate audio input HAT would be necessary.

What video resolutions and frame rates can this module achieve?

The 5MP camera module supports various video resolutions and frame rates, including 1080p at 30 frames per second (fps), 720p at 60fps, and VGA (640x480) at 90fps. These options provide flexibility for different applications, from high-quality recording to fast motion capture.

How do I set up and use this camera with Raspbian OS?

Setting up the camera module with Raspbian OS is straightforward. Connect the flexible ribbon cable to the CSI port on your Raspberry Pi. Then, enable the camera interface through `raspi-config` (Interface Options -> Camera). No additional drivers are typically required, allowing for immediate use with standard camera commands or Python libraries.

Package Includes

<ul class="package-includes-list"><li>1 x 5MP Raspberry Pi Camera Module for Pi 3/4 (Rev 1.3)</li></ul>

Additional Information

Weight 0.003 kg
Dimensions 2.5 × 2.3 cm
