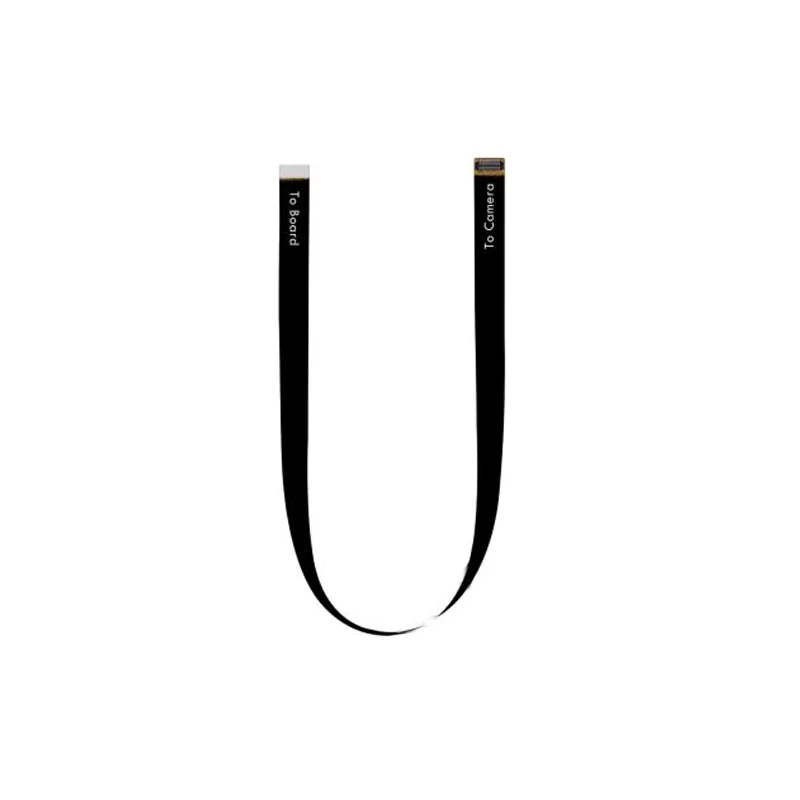

Arducam B0439 200mm Sensor Extension Cable for Pi Camera V2/V3

Yes, the Arducam B0439 extension cable is specifically optimized for the Raspberry Pi Camera Module V3 and its IMX708 sensor. It is also fully backward compatible with the older V2 module using the IMX219 sensor and other Arducam IMX219-based cameras. The cable uses the standard MIPI CSI-2 connector, ensuring a direct plug-and-play connection without any driver installation or configuration changes required on your Raspberry Pi or compatible single-board computer.

Installation is a straightforward plug-and-play process. First, gently detach the camera sensor's flexible printed circuit (FPC) cable from the MIPI CSI-2 port on your Raspberry Pi or carrier board. Next, connect one end of the Arducam B0439 extension cable to the now-empty port on the board. Finally, connect the other end of the extension cable to the connector on the camera sensor module itself. No tools, software drivers, or configuration changes are needed; the system should recognize the camera immediately upon power-up.

Yes, the Arducam B0439 cable is compatible with Nvidia Jetson platforms, specifically those that support the IMX219 sensor via a standard MIPI CSI-2 camera interface, such as the Jetson Nano. You must ensure your Jetson board's carrier or baseboard has a compatible MIPI CSI-2 connector. The installation process is identical to the Raspberry Pi: disconnect the original sensor, insert the extension cable between the board's port and the camera module. Verify compatibility with your specific Jetson model and camera sensor before purchase.

The electromagnetic shielding integrated into the Arducam B0439 cable is crucial for maintaining signal integrity in the high-speed MIPI CSI-2 data lines. This shielding acts as a barrier against external electromagnetic interference (EMI) and also contains the cable's own signal emissions. This protection minimizes noise, reduces data corruption, and ensures a stable, clear video feed from the camera sensor to the host processor, which is especially important when routing the cable near other electronic components or power sources in a compact project enclosure.
