Arducam 12MP IMX477 Motorized Focus Camera for Jetson Nano

₹8,499.00 (Inclusive of all taxes)
Out of Stock

The Arducam 12MP IMX477 Motorized Focus Camera is a high-resolution module designed for the NVIDIA Jetson Nano platform, featuring software-controlled autofocus via I2C and OpenCV for remote fine-tuning without manual lens adjustment.

Features

  • 12.3MP Sony IMX477 sensor delivers 4056 x 3040 pixel resolution for high-detail computer vision tasks.
  • Software-controlled motorized focus via I2C enables remote autofocus and manual tuning with keyboard or OpenCV.
  • Designed for NVIDIA Jetson Nano with a 15pin-22pin flex ribbon cable, requiring no hardware modifications.
  • 3.9mm F2.8 lens provides a wide aperture suitable for various lighting conditions in embedded vision applications.
  • Delivers the same picture quality and control as the Raspberry Pi HQ Camera but optimized for the Jetson ecosystem.

Out of stock

Description

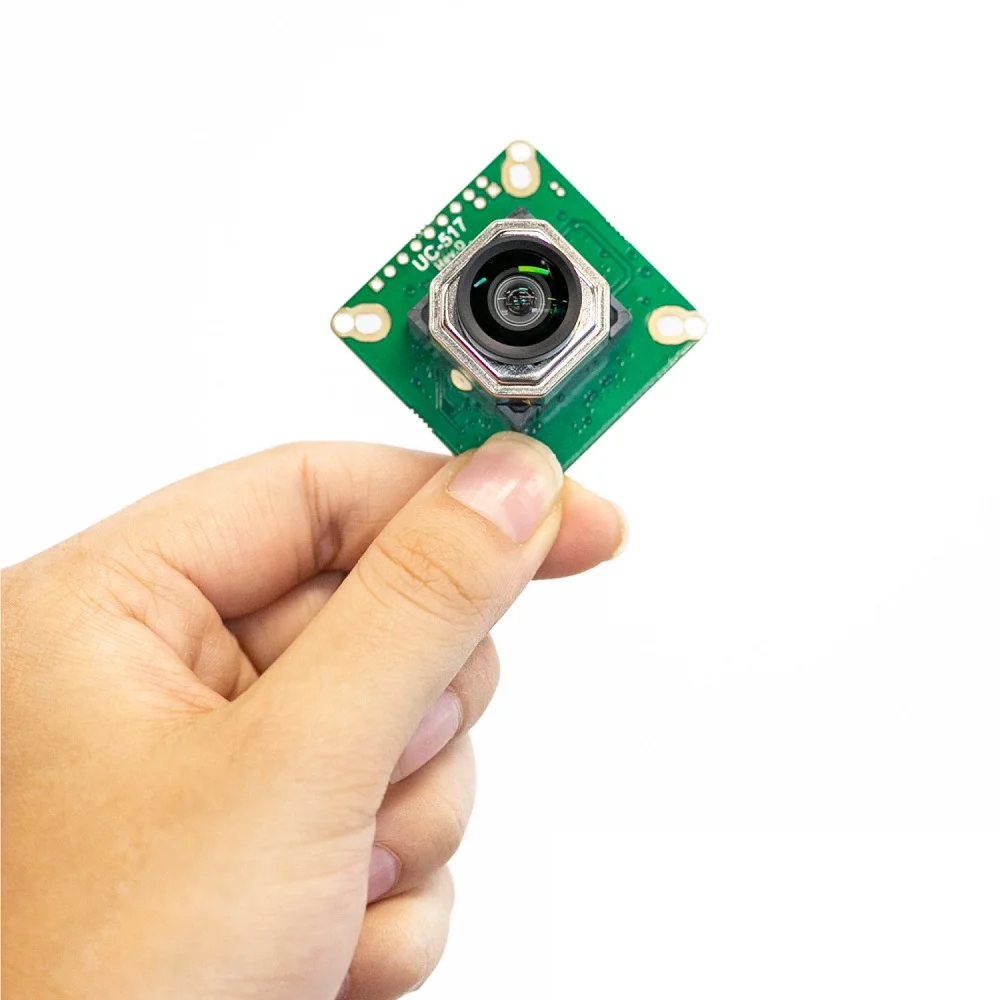

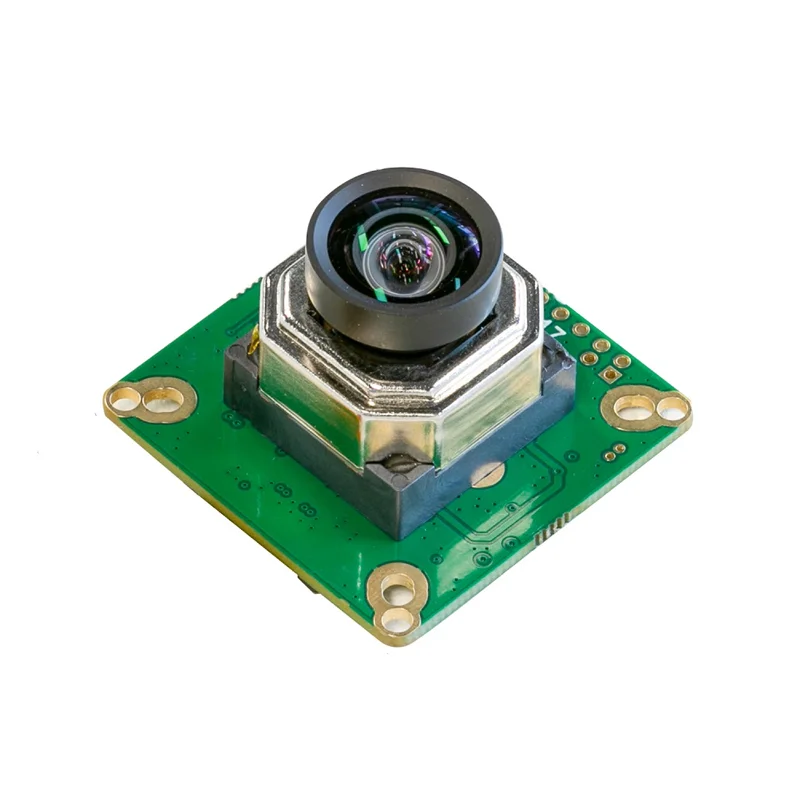

The Arducam IMX477 Motorized Focus Camera integrates a high-performance Sony IMX477 sensor with a software-driven focus mechanism, engineered specifically for the NVIDIA Jetson Nano developer kit. This module replaces the traditional manual lens adjustment with precise I2C-controlled motorized focusing, allowing developers to implement autofocus algorithms or fine-tune focus remotely via keyboard commands within OpenCV applications.

Built for seamless integration with the Jetson platform, it maintains full compatibility with NVIDIA’s camera software stack after driver installation, offering a plug-and-play experience for advanced AI and machine vision projects. The combination of a 12.3MP sensor and a motorized lens system makes it an ideal choice for applications requiring dynamic focus control, such as object tracking, automated inspection, and intelligent surveillance systems.

Key Features

  • High-resolution 12.3MP Sony IMX477 sensor for crisp, detailed image capture.
  • Motorized focus system controlled entirely via I2C interface for remote software adjustment.
  • Supports autofocus implementation and manual fine-tuning using OpenCV and keyboard inputs.
  • Plug-and-play compatibility with NVIDIA Jetson Nano via included 15pin-22pin flex cable.
  • 3.9mm focal length with F2.8 aperture for balanced field of view and light intake.
  • No physical hardware modifications required, ensuring a clean integration with the Jetson ecosystem.
  • Ideal for developers building advanced computer vision, AI inference, and machine learning applications.

Applications

  • AI-powered computer vision and object recognition on NVIDIA Jetson Nano.
  • Automated inspection and machine vision systems in industrial settings.
  • Intelligent surveillance and security systems with dynamic focus capabilities.
  • Robotics and autonomous vehicle perception requiring high-resolution imaging.
  • Educational and research projects in embedded AI and machine learning.

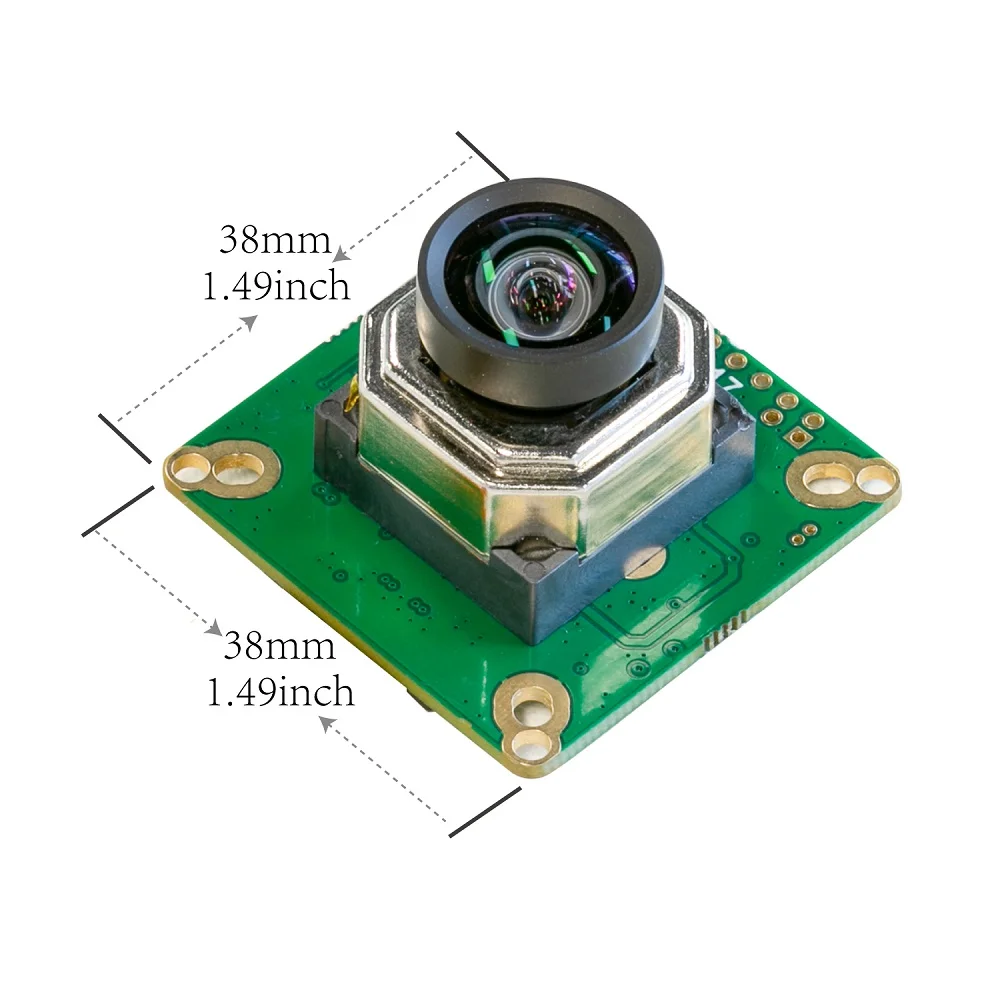

Technical Specifications

Sensor ModelSony IMX477
Resolution12.3MP (4056 x 3040 pixels)
Model NumberM23390H08
Focal Length3.9mm
ApertureF2.8
Focus ControlMotorized, via I2C (Software/OpenCV)
CompatibilityNVIDIA Jetson Nano
Interface15-pin MIPI CSI-2 (via 15pin-22pin flex cable)
Package Weight0.04 kg
Package Dimensions6 x 4 x 3 cm

Frequently Asked Questions

How do I control the motorized focus on this Arducam module?

The motorized focus is controlled via the I2C interface. You can use provided OpenCV Python examples to implement autofocus algorithms or manually adjust the focus by sending specific I2C commands. The focus can also be fine-tuned in real-time using keyboard arrow keys in a demo application, allowing for precise remote adjustment without touching the lens. Driver installation on the Jetson Nano is required to enable these software controls.

What is required to get this camera working with my Jetson Nano?

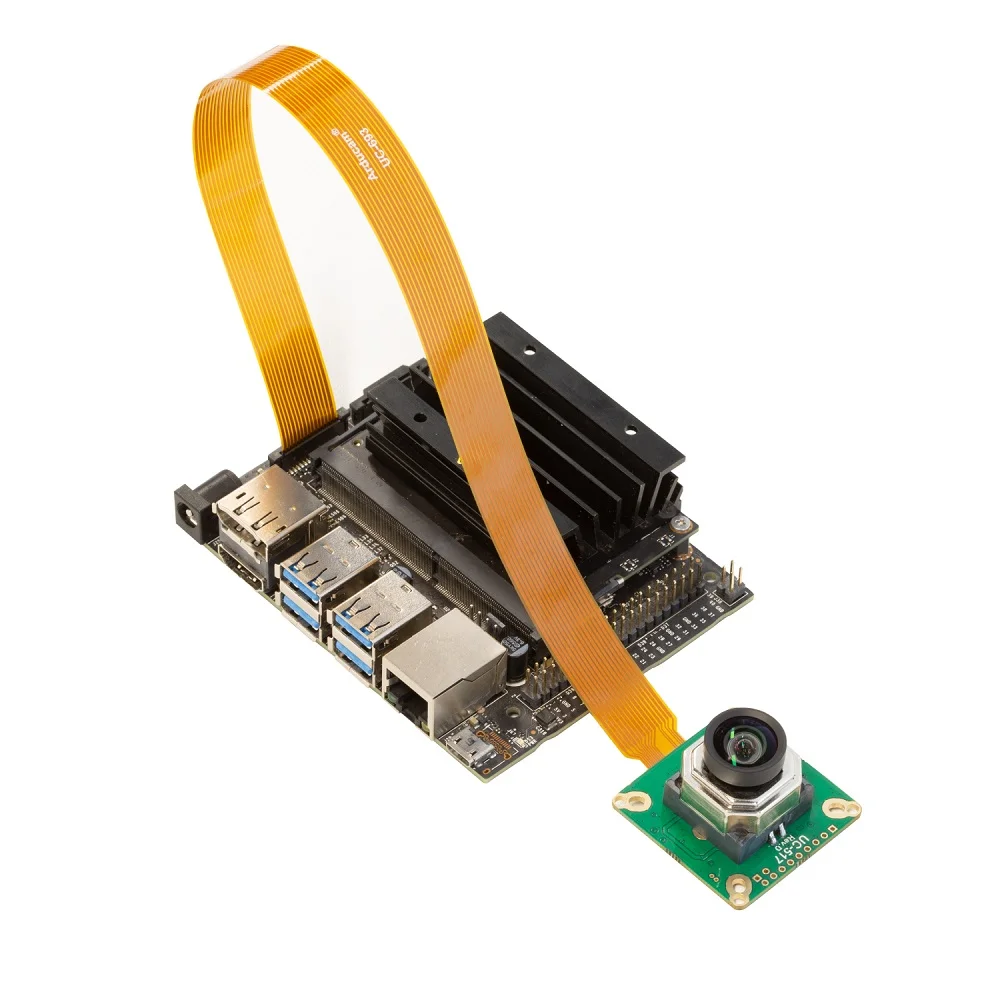

You need to complete both hardware and software setup. First, connect the camera to the Jetson Nano's MIPI CSI-2 connector using the included 15pin-22pin flex ribbon cable. Then, install the dedicated Arducam driver for Jetson from the official website or GitHub repository. After a reboot, the camera will be recognized by the system, and you can begin using it with OpenCV, GStreamer, or NVIDIA's native camera APIs for your vision applications.

Does this camera work with the Raspberry Pi High Quality Camera software?

While it uses the same Sony IMX477 sensor as the Raspberry Pi HQ Camera, this module is specifically designed and optimized for the NVIDIA Jetson Nano platform. It requires the Arducam-provided Jetson driver and will not work with Raspberry Pi software without significant modification. The key advantage is the integrated motorized focus control via I2C, a feature not present on the standard Pi HQ camera, enabling advanced focus automation for Jetson-based projects.

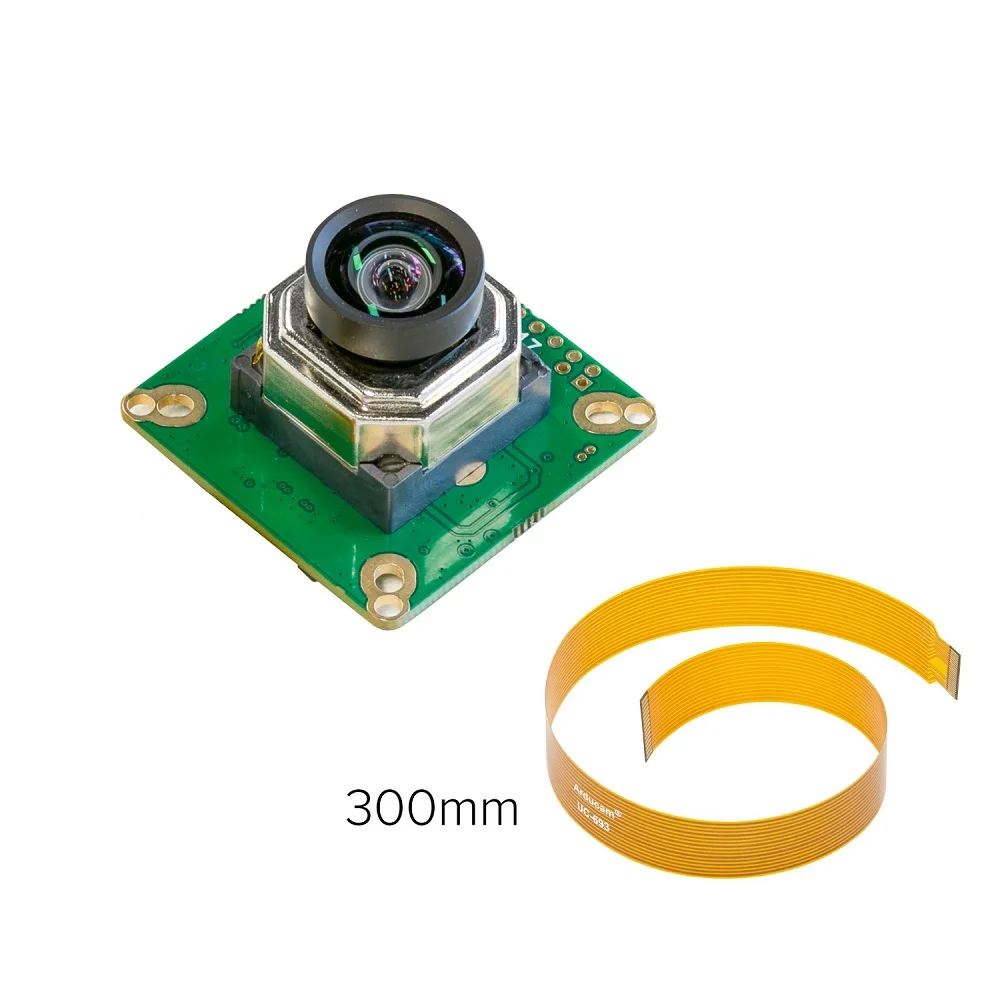

Package Includes

  • 1 x Arducam 12MP IMX477 Motorized Focus Camera with Lens
  • 1 x 300mm 15pin-22pin Flex Ribbon Cable

Additional Information

Weight 0.04 kg
Dimensions 6 × 4 × 3 cm
