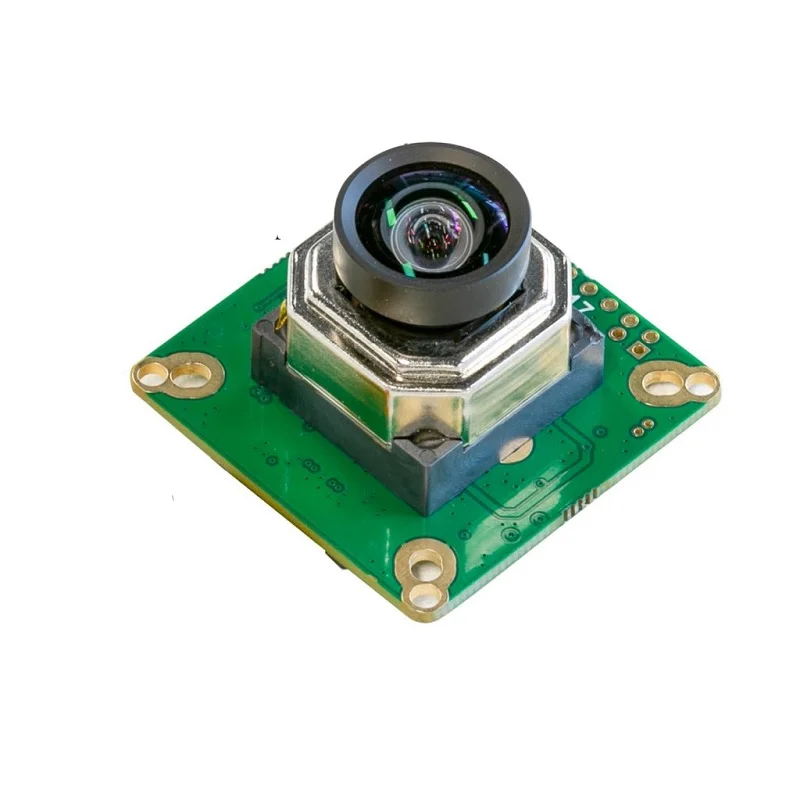

Arducam 12MP IMX477 Motorized Focus Camera for Jetson Nano/Xavier NX
The Arducam 12MP IMX477 Motorized Focus Camera is a high-resolution sensor module designed for NVIDIA Jetson Nano and Xavier NX platforms, featuring software-controlled focus via OpenCV or keyboard commands for remote adjustment.
Features
- 12.3MP Sony IMX477 sensor delivers 4056 x 3040 pixel resolution for crisp, detailed images.
- Software-controlled motorized focus eliminates manual lens adjustment, enabling remote focusing via OpenCV or keyboard.
- Designed for seamless integration with NVIDIA Jetson Nano and Xavier NX developer kits without hardware modifications.
- M12 lens mount with a 3.9mm focal length and F2.8 aperture provides a 75° horizontal field of view.

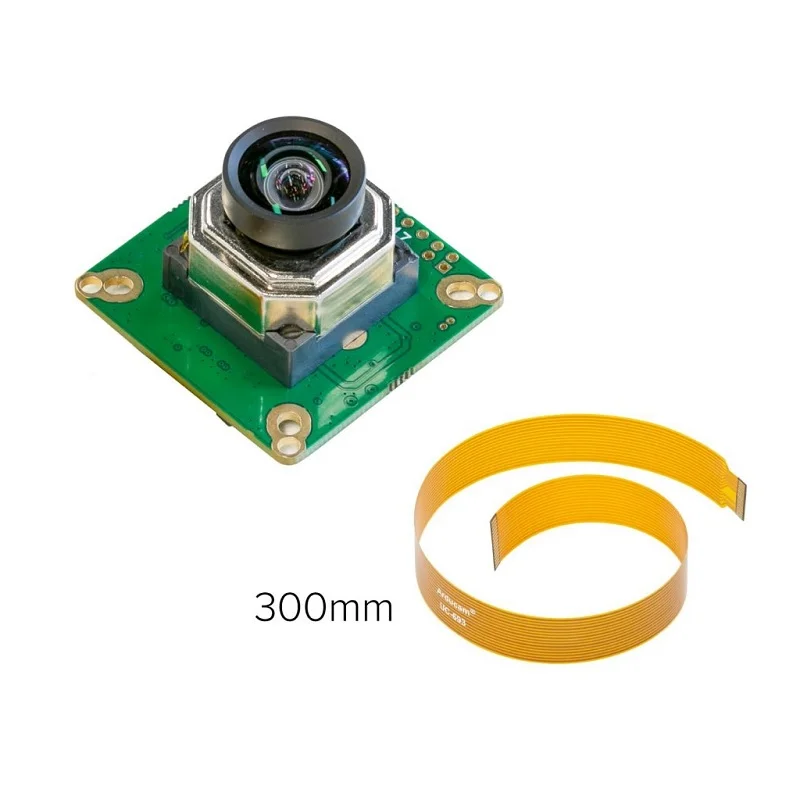

- Includes a 300mm 15-pin to 22-pin flex ribbon cable for easy connection and flexible mounting.
Out of stock
The Arducam 12MP IMX477 Motorized Focus Camera integrates a high-performance Sony IMX477 rolling shutter sensor, offering 12.3-megapixel resolution for computer vision applications on the NVIDIA Jetson edge AI platform. Its standout feature is the integrated focus motor, which replaces manual lens twisting with precise software control, streamlining development workflows for robotics, inspection, and surveillance systems.
Built with an M12 mount and a 3.9mm lens, this module provides a wide 75-degree horizontal field of view and supports 4K video encoding at 30fps, constrained by the Jetson platform’s hardware. The package includes a long flex cable, allowing flexible positioning within your embedded vision project enclosure.
Additional Information
| Weight | 0.033 kg |
|---|---|
| Dimensions | 4 × 4 × 4 cm |
