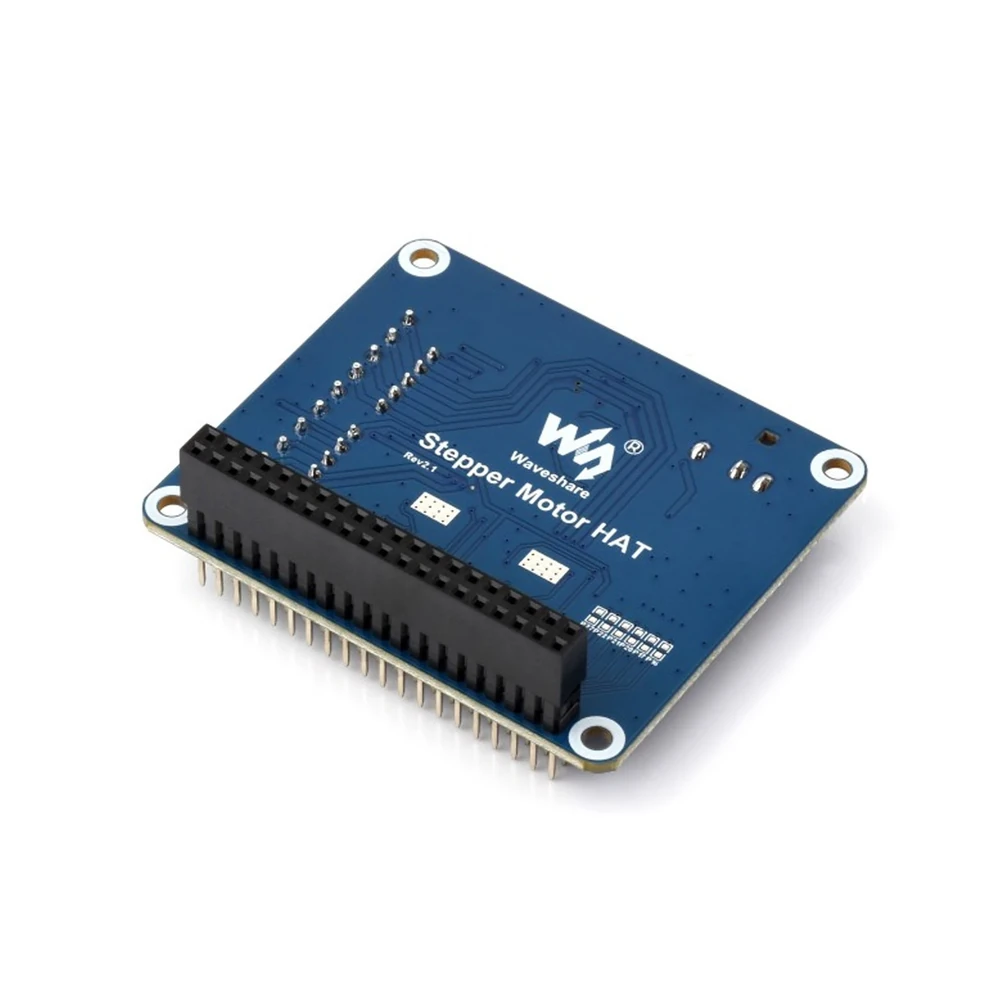

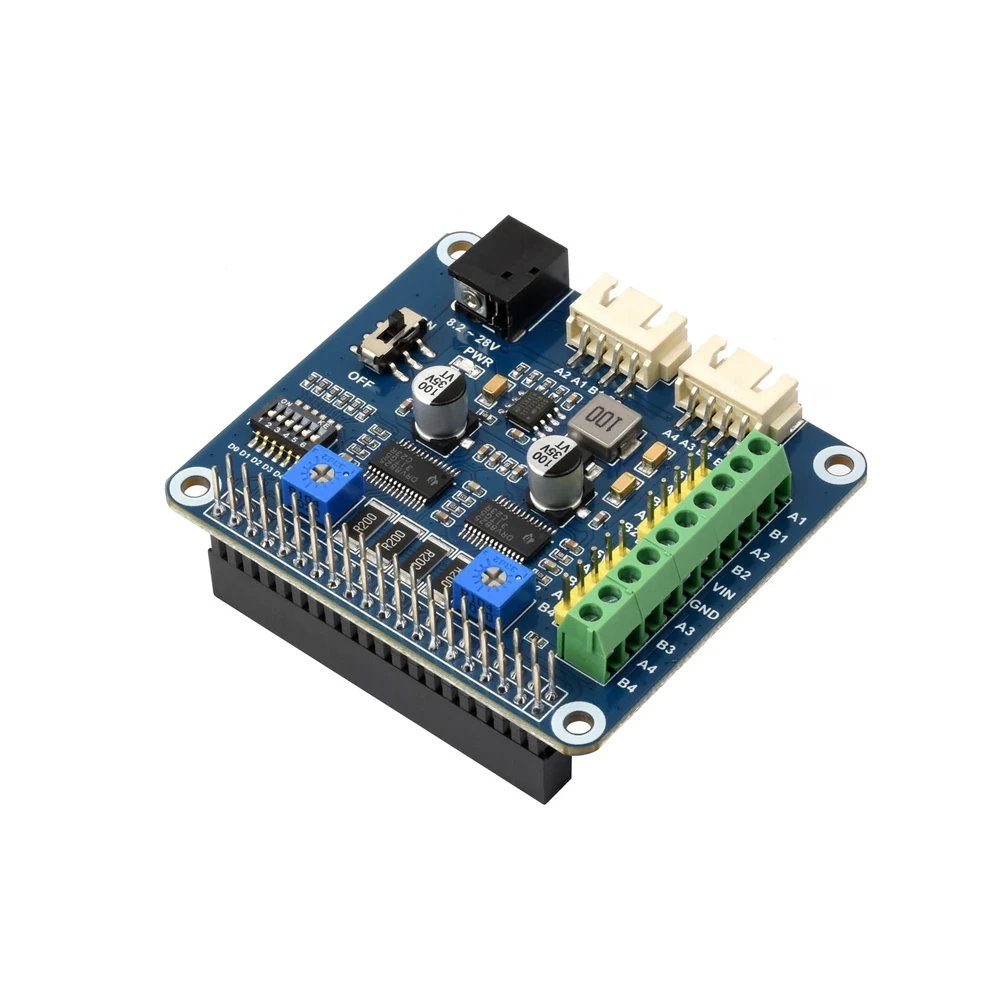

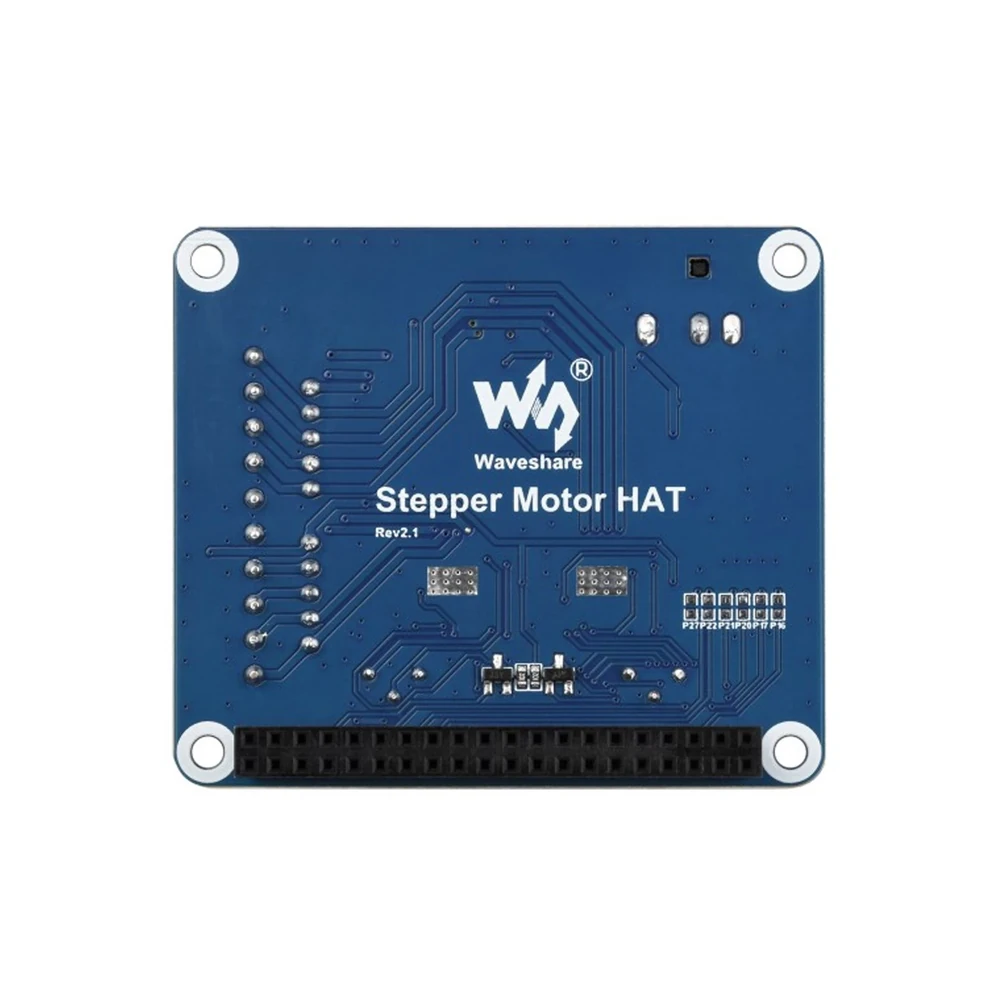

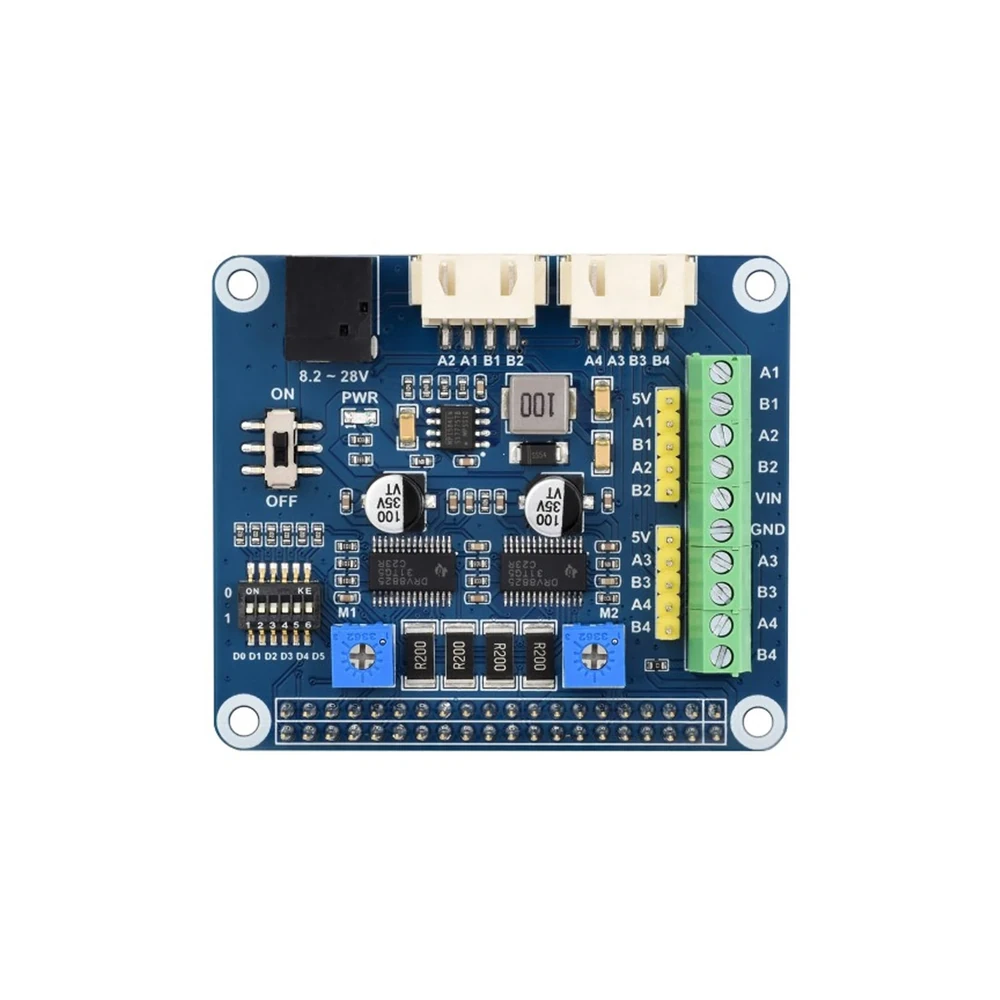

Waveshare Stepper Motor HAT for Raspberry Pi, Dual DRV8825
The Waveshare Stepper Motor HAT provides precise control for two stepper motors on Raspberry Pi and Jetson Nano boards. Featuring dual DRV8825 drivers, it supports microstepping up to 1/32 for smooth motion and offers an adjustable current up to 2.5A, alongside an integrated 5V regulator for direct Raspberry Pi power.
Features
- Drives two stepper motors simultaneously with dual DRV8825 ICs.
- Achieve high precision motion control with up to 1/32 microstepping.
- Adjustable motor drive current up to 2.5A for versatile motor compatibility.
- Onboard 5V regulator can power the connected Raspberry Pi directly.
- Compatible with Raspberry Pi 40PIN GPIO header and Jetson Nano.
Out of stock
The Waveshare Stepper Motor HAT is engineered for robust and precise motor control in Raspberry Pi and Jetson Nano projects. Equipped with dual DRV8825 motor driver chips, this HAT enables simultaneous control of two stepper motors. It supports a comprehensive range of microstepping modes, from full step down to 1/32-step, ensuring exceptionally smooth and accurate motion control critical for applications like robotics, CNC machinery, and 3D printing.
Users can fine-tune the motor drive current up to 2.5A via an onboard potentiometer, accommodating various stepper motor specifications. Built-in protection features including Over Current Protection (OCP), Thermal Shutdown (TSD), and Under Voltage Lockout (UVLO) safeguard both the HAT and connected motors during operation. Additionally, an integrated 5V regulator allows the HAT to power the connected Raspberry Pi directly, streamlining power management and reducing overall hardware complexity. Comprehensive development resources and programming examples are available to facilitate rapid project integration.
Additional Information
| Weight | 0.033 kg |
|---|---|
| Dimensions | 6.5 × 5.6 cm |
