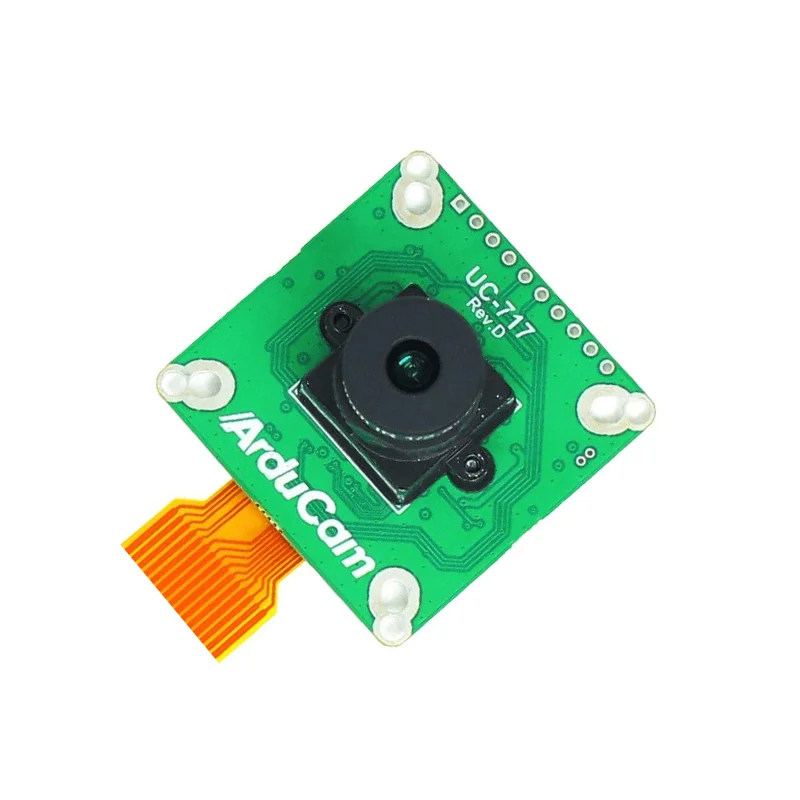

Arducam 1.58MP IMX296 Global Shutter Camera Module w/ M12 Lens for Raspberry Pi

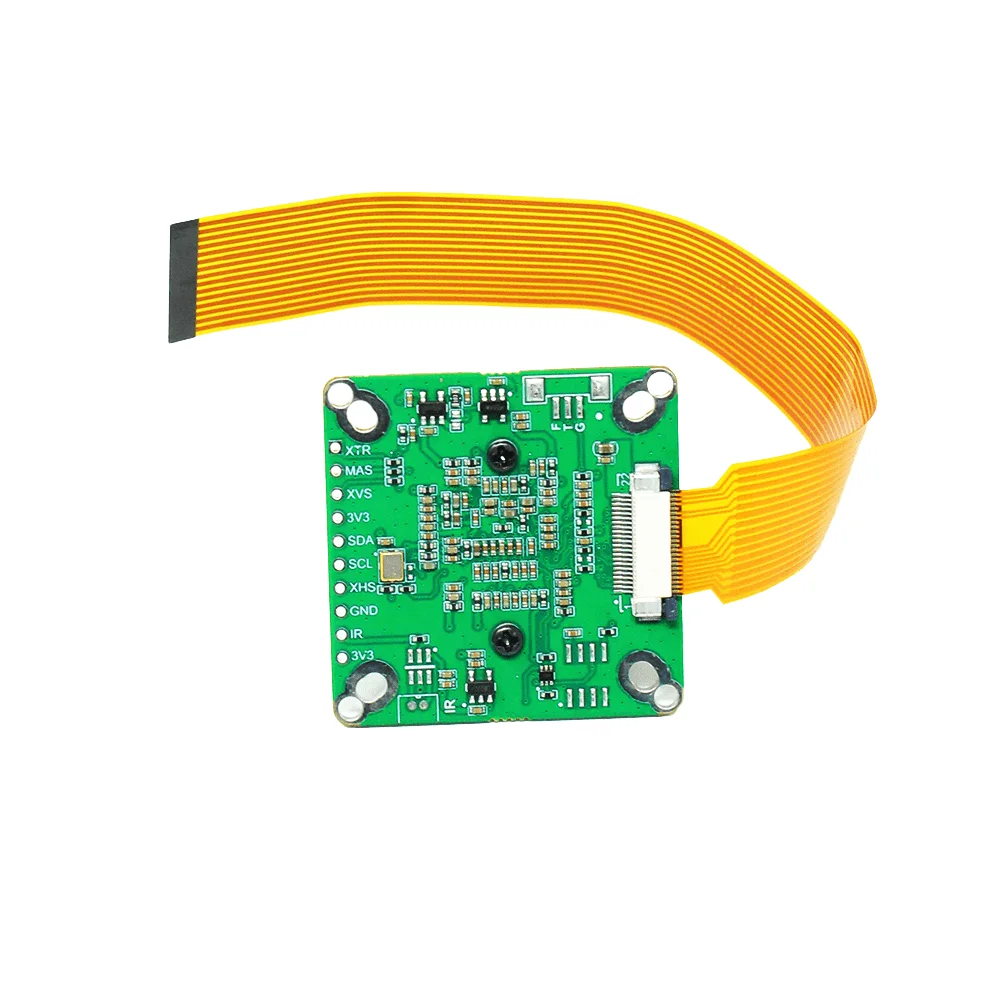

Arducam 1.58MP IMX296 Global Shutter Camera Module w/ M12 Lens for Raspberry Pi - Image 2
SKU: IOWC-0366
📋 GST Invoice Available

Arducam 1.58MP IMX296 Global Shutter Camera Module w/ M12 Lens for Raspberry Pi

₹7,099.00 (Inclusive of all taxes)
Out of Stock

This Arducam module integrates a Sony IMX296 1.58MP global shutter CMOS sensor with a manual-focus M12 lens, providing native compatibility with Raspberry Pi 5/4/3/Zero via libcamera and Picamera2 libraries for high-speed, motion-artifact-free imaging.

Features

  • Global Shutter Sensor: Sony IMX296 CMOS sensor eliminates motion blur and rolling shutter distortion, ideal for capturing fast-moving objects in machine vision and automation applications.
  • Manual Focus M12 Lens: Features a 55° HFOV M12 mount lens with manual focus adjustment for precise control in macro photography and low-light conditions.
  • Native Raspberry Pi Support: Plug-and-play compatibility with Raspberry Pi 5, 4, 3, Zero, CM3, and CM4; no additional drivers required, fully supported by libcamera and Picamera2.
  • High-Speed Imaging: Capable of 1440×1080 resolution at 60fps in RAW10 output format, suitable for real-time computer vision and high-frame-rate applications.
  • Complete Connectivity Kit: Includes both 15-22pin and 22-22pin 150mm FPC cables for flexible connection to all Raspberry Pi models and Compute Modules.

Out of stock

Description

The Arducam IMX296 camera module is engineered for embedded vision applications requiring precise, high-speed image capture. Its core component is the Sony IMX296, a 1.58-megapixel color global shutter CMOS sensor. Unlike rolling shutter sensors, the global shutter exposes all pixels simultaneously, completely eliminating skew, wobble, and partial exposure artifacts caused by subject or camera motion. This makes it indispensable for industrial machine vision, robotics, and barcode scanning.

Integrated with a standard M12 lens mount and a 6mm focal length lens offering a 55-degree horizontal field of view, the module provides optical flexibility. The manual focus ring allows fine-tuning for specific working distances, enhancing image clarity in challenging lighting or macro scenarios. The sensor’s 3.45µm pixel size and integral IR-cut filter ensure accurate color reproduction under visible light. The module communicates via a standard CSI-2 interface over a flexible flat cable (FFC), drawing power directly from the Raspberry Pi’s camera connector.

Key Features

  • Global Shutter Technology: Simultaneous pixel exposure eliminates motion artifacts, perfect for capturing fast-moving objects or rapid panning.
  • Sony IMX296 CMOS Sensor: 1.58MP (1440x1080) resolution with 3.45µm pixels delivers detailed, low-noise images suitable for precision inspection.
  • Manual Focus M12 Lens System: Adjustable focus from macro to infinity provides versatility for diverse application environments and lighting conditions.
  • Native Raspberry Pi Integration: Hardware and software compatible with all modern Raspberry Pi boards; works out-of-the-box with standard camera software stacks.
  • Dual FPC Cable Inclusion: Supplied with both 15-22pin and 22-22pin 150mm cables ensures connectivity with any Raspberry Pi model, including Pi Zero and Compute Modules.
  • High Frame Rate Output: Supports up to 60fps at full 1440x1080 resolution in RAW10 format, enabling real-time video processing and analysis.
  • Integrated IR-Cut Filter: Blocks infrared light to ensure true color accuracy and prevent color distortion under various lighting sources.

Applications

  • Industrial Machine Vision: High-speed inspection, robotic guidance, and quality control on production lines where motion blur must be eliminated.
  • Smart Surveillance & Security: Capturing clear images of fast-moving subjects for home security systems or unattended monitoring.
  • Automation & AI Projects: Object recognition, tracking, and sorting in robotics and embedded AI applications using Raspberry Pi.
  • Macro & Scientific Imaging: Detailed close-up photography and microscopy where manual focus control is critical.
  • Wildlife & Action Photography: Capturing crisp, distortion-free images of birds, insects, or sports in outdoor environments.

Technical Specifications

Image SensorSony IMX296 Color Global Shutter CMOS
Resolution1.58MP (1440 x 1080 pixels)
Optical Format1/2.9-inch (6.3mm diagonal)
Pixel Size3.45µm x 3.45µm
Shutter TypeGlobal Shutter
Max Frame Rate1440x1080 @ 60fps
Output FormatRAW10
Lens MountM12
Lens Focal Length6mm
Field of View (HxV)55° x 33°
Focus TypeManual Focus
IR FilterIntegrated IR-cut filter
CompatibilityRaspberry Pi 5/4/3/Zero/CM3/CM4
InterfaceCSI-2 via FPC cable

Frequently Asked Questions

How do I connect this Arducam IMX296 module to my Raspberry Pi 4?

First, ensure the Raspberry Pi is powered off. Locate the camera connector (CSI) on the board. For a Pi 4, use the supplied 22-pin to 22-pin FPC cable. Carefully open the CSI connector's latch, insert the cable with the blue tab facing away from the Ethernet port, and close the latch. Connect the other end to the camera module. Power on the Pi and enable the camera interface via `sudo raspi-config` under 'Interface Options'. Test using `libcamera-hello`.

What software libraries are needed to use this camera with Raspberry Pi OS?

This camera is natively supported on modern Raspberry Pi OS (Bullseye or later) which includes the `libcamera` and `picamera2` libraries by default. No additional Arducam-specific drivers are required. For legacy OS versions, you may need to update. Use `libcamera-hello` for a quick preview or the Picamera2 Python library for programmatic control. Ensure your system is updated with `sudo apt update && sudo apt upgrade` before starting development.

Can I adjust the focus on this M12 lens, and what is the procedure?

Yes, the M12 lens features manual focus. To adjust, gently rotate the lens barrel. For macro focus, turn the lens to extend it closer to the subject. For distant subjects, rotate to retract the lens. It's best to perform focus adjustment while viewing a live preview on your Raspberry Pi display using a `libcamera` command. Make small, incremental adjustments until the image is sharp. The lens can be focused from a very close range to infinity.

Package Includes

  • 1 x Arducam 1.58MP IMX296 Color Global Shutter Camera Module with M12 Lens
  • 1 x 150mm 15-pin to 22-pin FPC Cable
  • 1 x 150mm 22-pin to 22-pin FPC Cable

Additional Information

Weight 0.033 kg
Dimensions 5 × 5 × 4 cm
