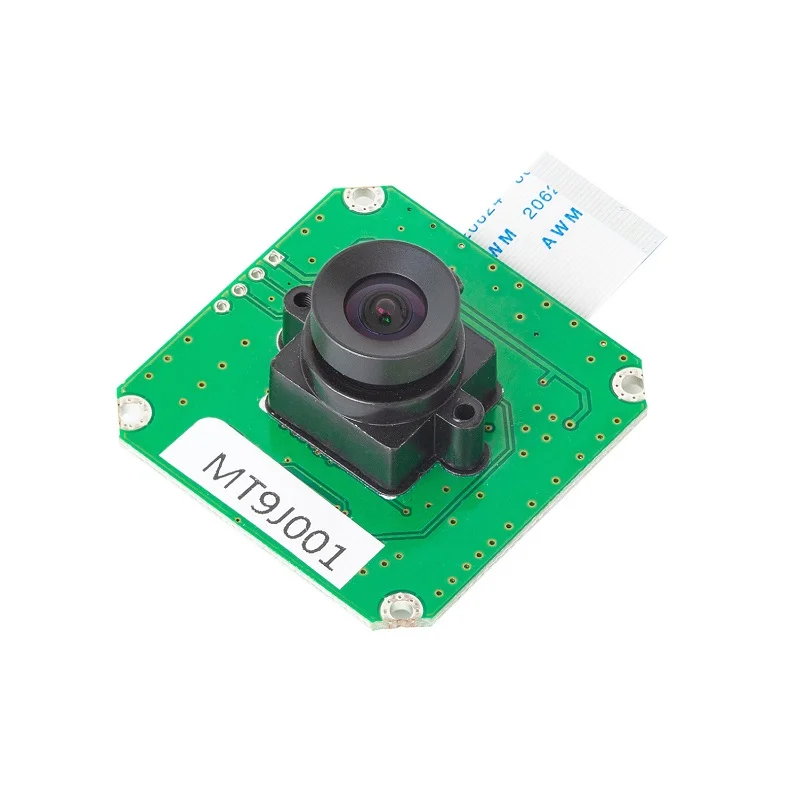

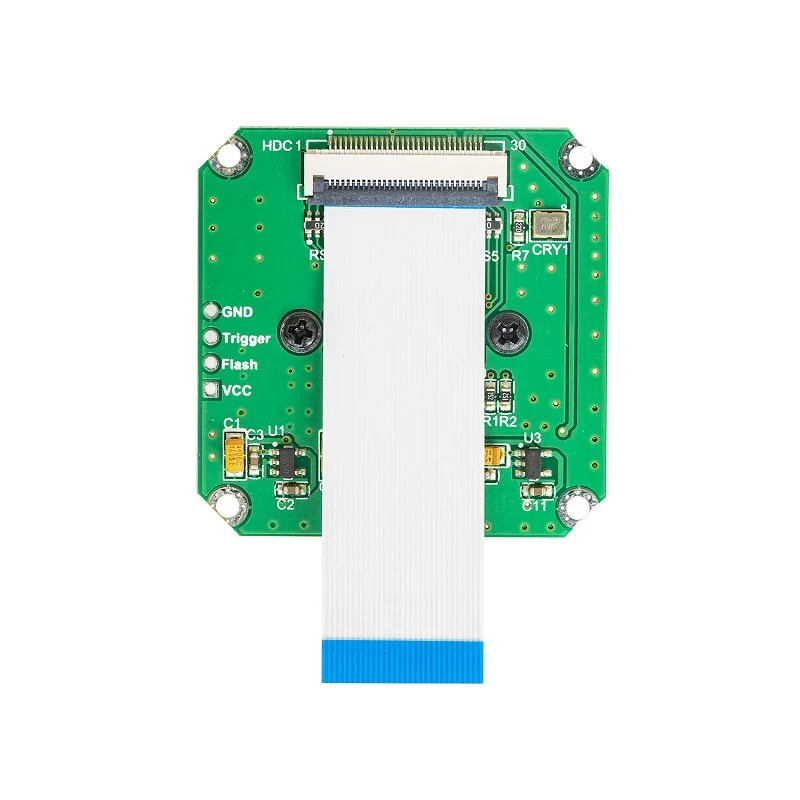

Arducam B0096 MT9J001 1/2.3-Inch 10MP Monochrome Camera Module
The Arducam B0096 is a high-resolution 10-megapixel monochrome camera module built around the MT9J001 CMOS sensor, designed for industrial imaging and machine vision applications. It offers easy integration via a USB Camera Shield for evaluation on Windows, Linux, and Raspberry Pi platforms.
Features
- 10MP Monochrome Sensor: Features the MT9J001 CMOS sensor delivering 3856 x 2764 resolution for detailed, high-contrast grayscale imaging.
- Optimized for Machine Vision: 1/2.3-inch optical format with a monochrome Bayer pattern enhances light sensitivity and edge detection accuracy.
- High Dynamic Range: Provides 65.2dB dynamic range to capture details in both bright highlights and dark shadows.
- Rapid Frame Capture: Capable of 7.5 frames per second at full 10MP resolution for capturing fast-moving subjects.
- Broad Platform Support: Easily interfaces via USB Camera Shield for quick prototyping on Raspberry Pi, Linux, and Windows systems.
Out of stock
The Arducam B0096 camera module integrates a 10-megapixel MT9J001 monochrome CMOS sensor into a compact form factor suitable for embedded vision systems. Its 1/2.3-inch optical format and 1.67µm pixel size are engineered to maximize light capture and signal-to-noise ratio, which is critical for precision measurement, optical character recognition (OCR), and automated inspection tasks where color information is unnecessary.
Designed for straightforward integration, the module outputs a raw Bayer pattern stream that can be processed for high-contrast monochrome images. The included USB Camera Shield adapter allows developers to quickly evaluate image quality and performance on common single-board computers and desktop operating systems, accelerating the development cycle for industrial IoT and smart vision applications.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
