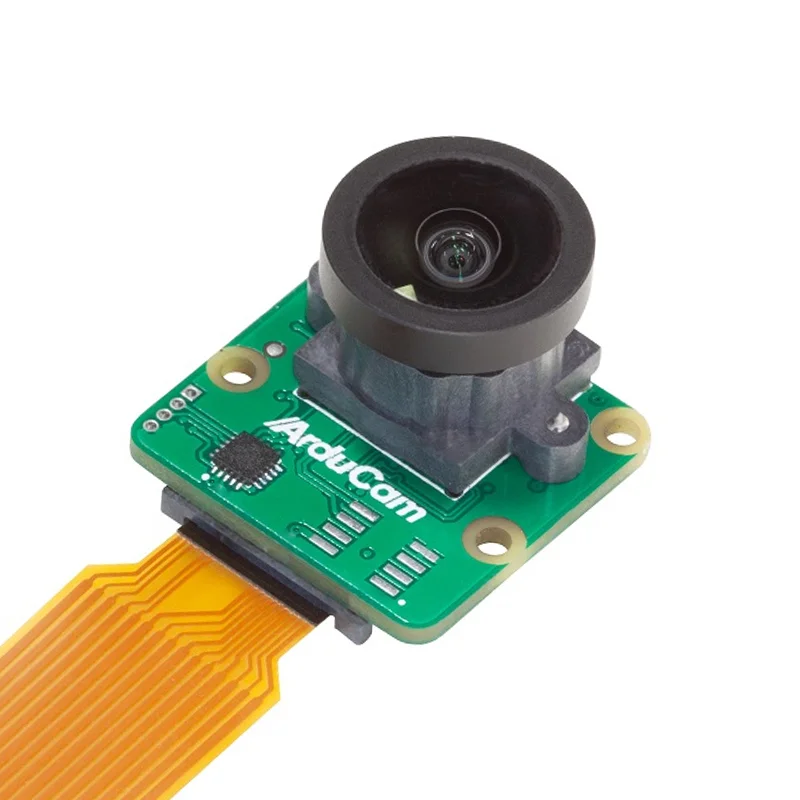

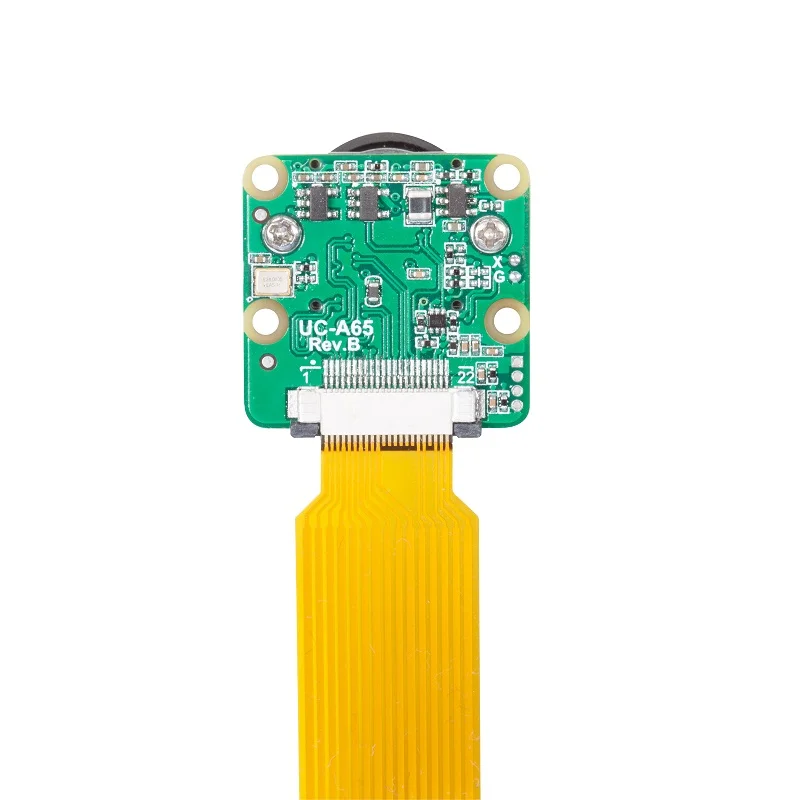

Arducam B0466R 12.3MP Camera Module for Raspberry Pi w/ 158° M12 Lens

Connect the Arducam B0466R module to a Raspberry Pi using the Arducam USB Camera Shield. The shield interfaces the camera's output to a standard USB port on the Pi. Install the necessary V4L2 drivers or Arducam-provided libraries on your Raspberry Pi OS. Configure the system to recognize the USB video device, then use software like OpenCV, Python picamera2, or GStreamer to capture images and video streams from the module.

Yes, the module features a standard M12 (S-mount) lens thread, allowing you to swap the included 158° wide-angle lens for other M12 lenses with different focal lengths or fields of view. This is useful for applications requiring telephoto, macro, or specific focal lengths. Ensure any replacement lens is compatible with the sensor's size and mount specification to maintain proper focus and image circle coverage.

On a Linux PC, the camera is recognized as a USB Video Class (UVC) device when connected via the USB Camera Shield. Ensure your kernel has V4L2 support enabled. You can then use command-line tools like fswebcam or guvcview, or programmatically access the feed using libraries like OpenCV's VideoCapture function. For development, install OpenCV and its Python bindings to start capturing and processing images directly in your application code.

Yes, the Arducam B0466R supports video recording in addition to high-resolution still capture. The specific supported video modes (e.g., 1080p, 4K) depend on the driver and software implementation. Using the V4L2 interface, you can typically configure the resolution and frame rate. Check the sensor's datasheet for its native capabilities and use software like v4l2-ctl to list available formats on your system after connection.
