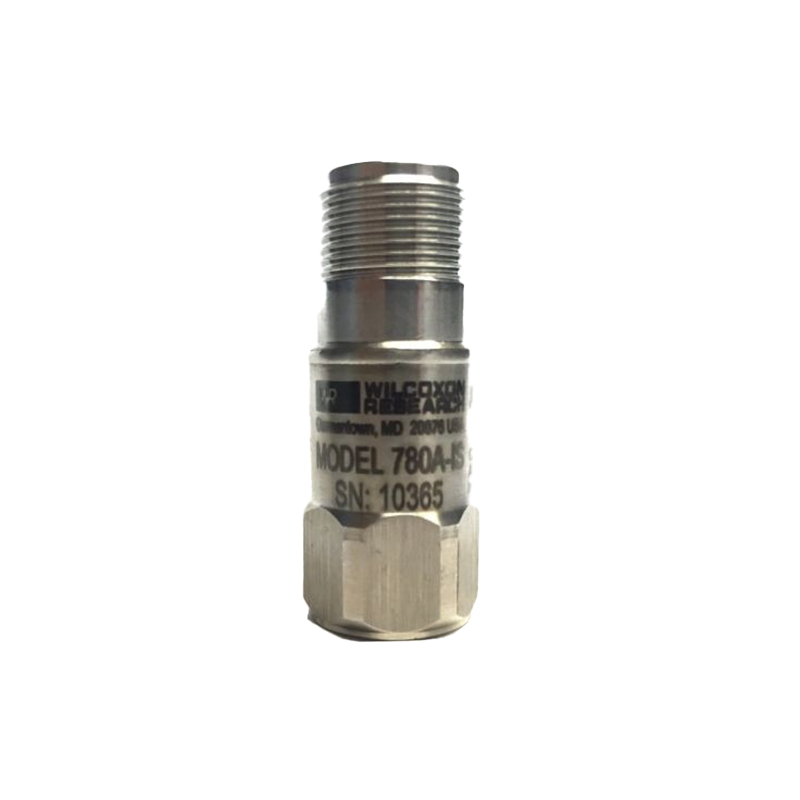

Amphenol Wilcoxon 780A-IS Accelerometer Sensor, Intrinsically Safe, 0.1 V/g, 30 VDC, 1/4-28 UNF Thread
The Amphenol Wilcoxon 780A-IS is an intrinsically safe industrial accelerometer delivering a 0.1 V/g analog output for vibration monitoring in hazardous areas. Compatible with standard 2-wire 4-20mA loop-powered systems up to 30 VDC, it features a rugged 1/4-28 UNF threaded mount for secure installation in demanding environments from -55°C to 120°C.
Features
- Intrinsically Safe certified for operation in hazardous (Ex) environments.
- 0.1 V/g sensitivity with a ±80 g measurement range for precise vibration analysis.
- Wide 2-wire loop-powered operation up to 30 VDC.
- Rugged industrial construction with a 1/4-28 UNF threaded mounting hole.
- Extended operating temperature range from -55°C to 120°C.
Out of stock
The 780A-IS accelerometer utilizes a piezoelectric sensing element to generate a low-impedance voltage output proportional to vibration acceleration. Its intrinsically safe design incorporates energy-limiting barriers, making it suitable for installation in Zone 0, 1, and 2 hazardous locations without requiring an external safety barrier.
Engineered for continuous machinery health monitoring, the sensor provides a stable analog signal for integration with PLCs, DCS, and condition monitoring systems. The hermetically sealed, stainless steel housing and robust 1/4-28 UNF mounting thread ensure long-term reliability in harsh industrial settings such as rotating equipment, pumps, and compressors.
Additional Information
| Weight | 0.062 kg |
|---|---|
| Dimensions | 10 × 8 × 4 cm |
