TE Connectivity Piezoelectric Voltage Sensor 1.38nF - Silver Ink Electrode Film Element

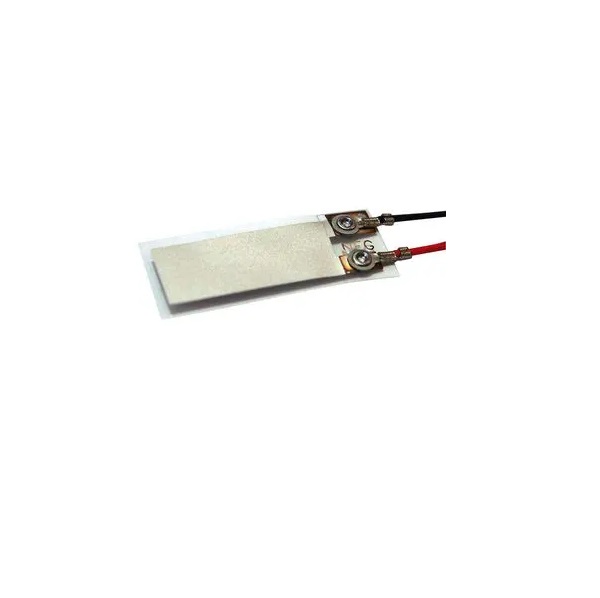

The TE Connectivity DT series piezoelectric film sensor element is a high-activity, rectangular piezo polymer film with screen-printed silver ink electrodes, designed for custom sensing applications requiring high voltage output per microstrain. It is ideal for integration into prototype circuits, vibration monitoring systems, and acoustic emission detection.
Features
- High-output piezoelectric film element delivers over 10 mV per microstrain.
- Features flexible silver ink screen-printed electrodes for robust electrical contact.
- Available in multiple standard sizes and film thicknesses for design flexibility.
- Provides a nominal capacitance of 1.38 nF for signal conditioning.
- Wide operating temperature range from -40°C to +60°C.
Out of stock
The DT series from TE Connectivity consists of unencapsulated rectangular piezoelectric film sensor elements. These elements utilize a thin, high-activity piezo polymer film that generates a significant electrical charge in response to mechanical strain or vibration, producing a voltage output approximately 60 dB higher than a standard foil strain gauge under equivalent conditions.
The sensor features screen-printed silver ink electrodes, offering a flexible and durable metallization layer. The element’s capacitance, which is proportional to its active area and inversely proportional to its thickness, is specified at 1.38 nF. This raw sensor element is supplied without leads or housing, providing engineers and developers with a core component for designing custom piezoelectric transducers for precise measurement and detection applications.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 7 × 1 cm |
