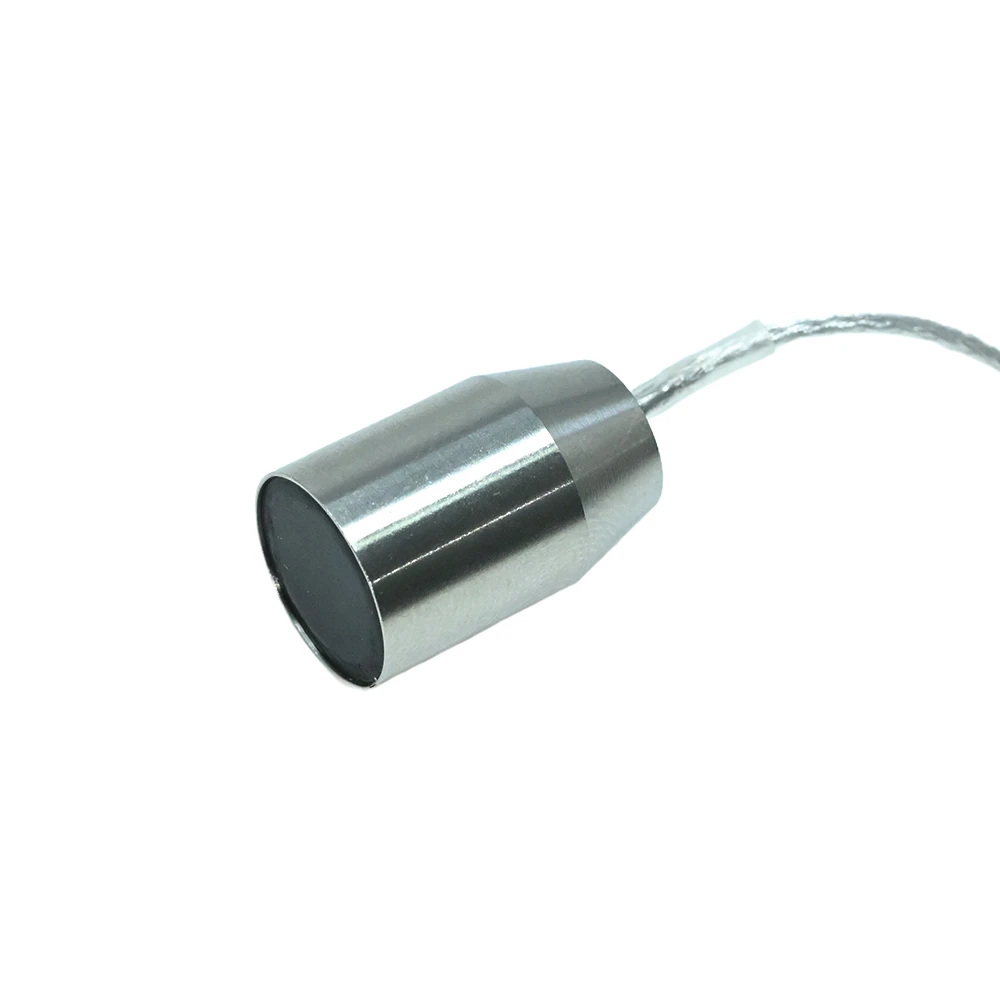

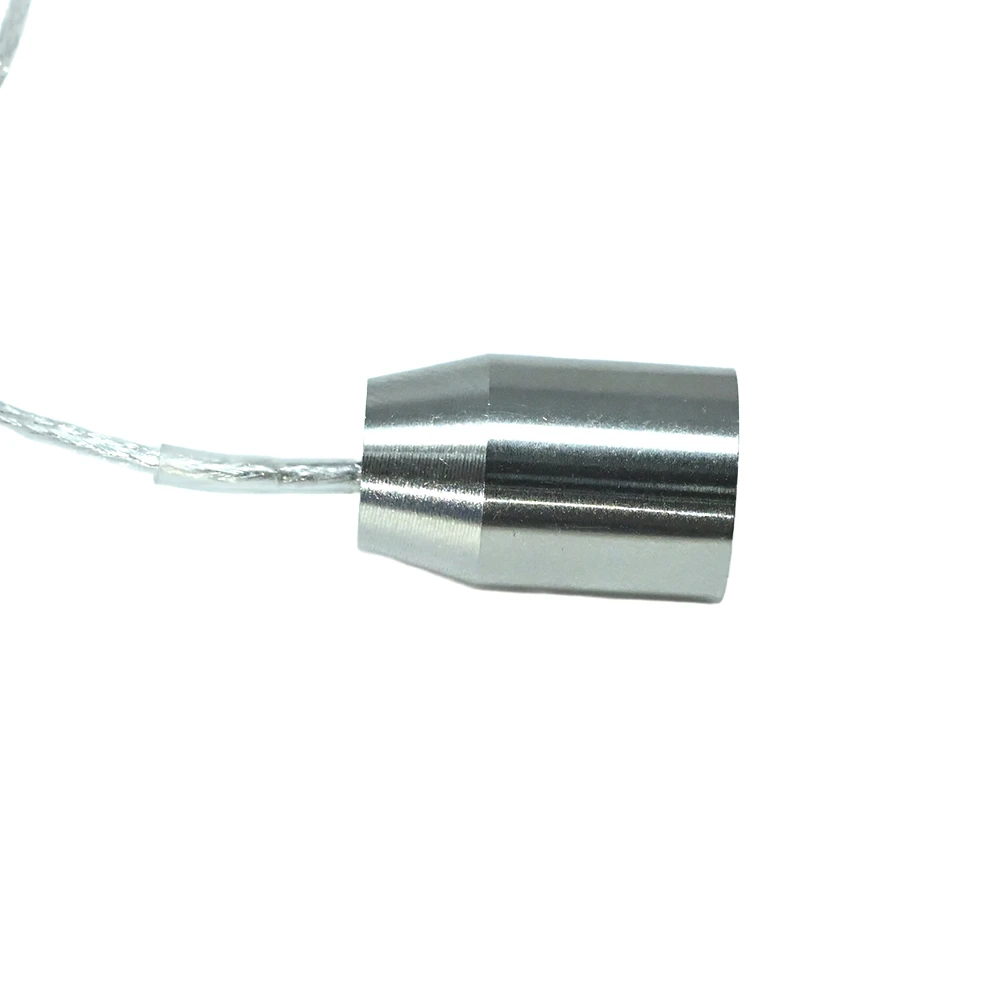

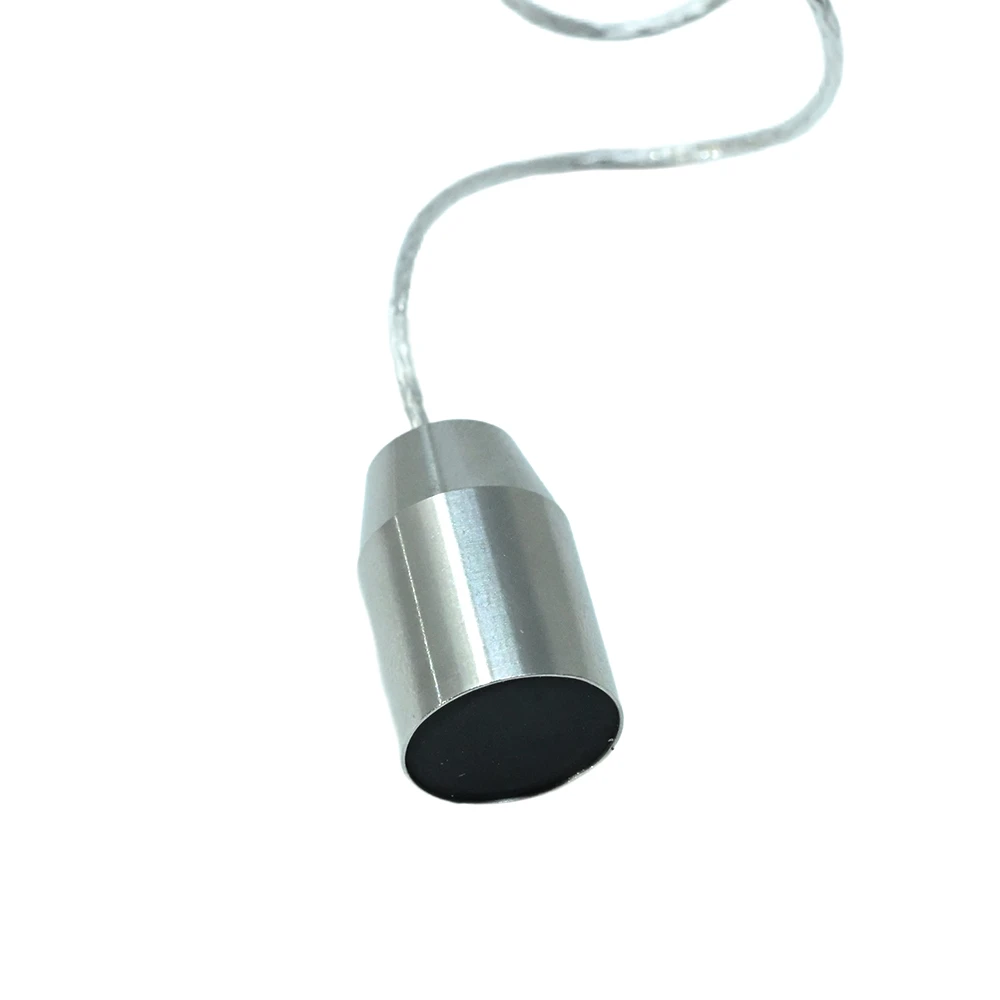

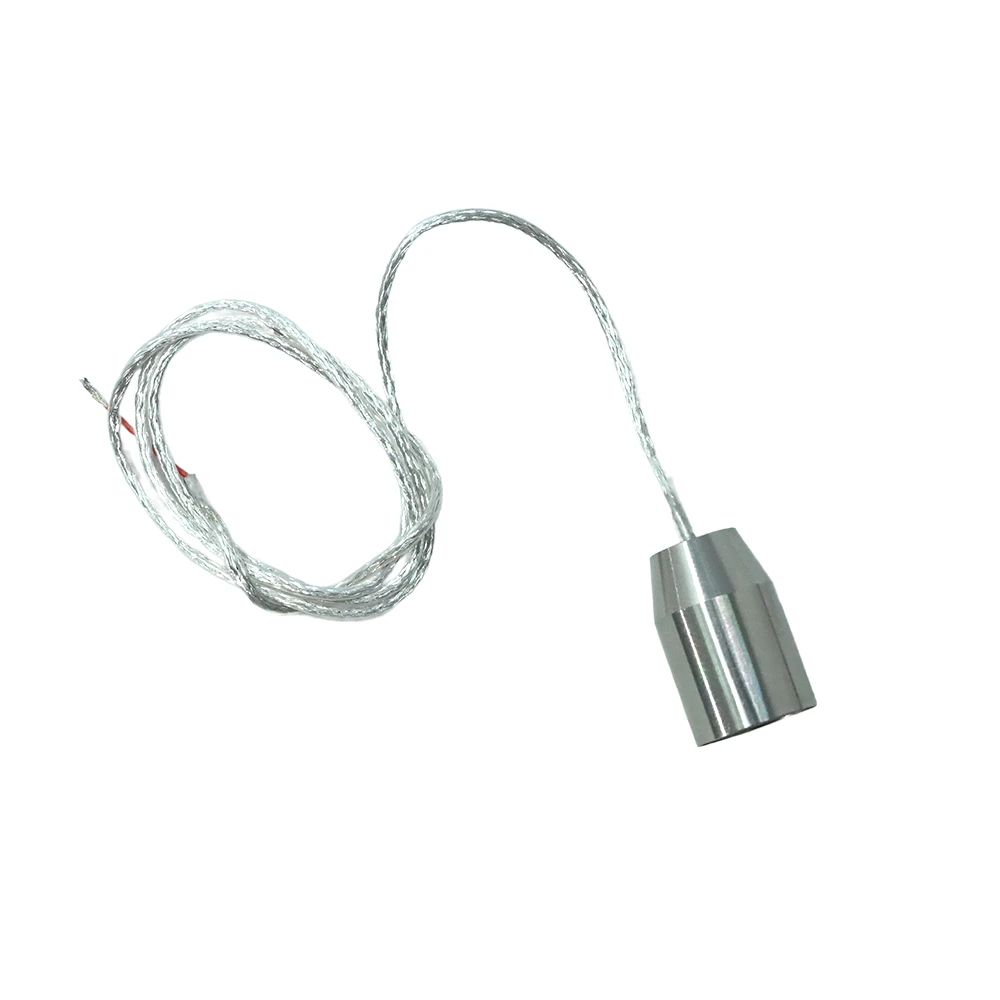

NU200E12TR-1 12mm 200kHz Ultrasonic Wind Speed Sensor
The NU200E12TR-1 is a compact 12mm piezoelectric ultrasonic transducer operating at 200kHz, designed for precise wind speed and airflow measurement. It integrates both transmit and receive functions, making it suitable for integration into industrial anemometers, HVAC systems, and environmental monitoring stations.
Features
- High-frequency 200kHz ±4% piezoelectric ultrasonic transducer for accurate wind speed sensing.
- Compact 12mm diameter design facilitates integration into space-constrained systems and probes.
- Integrated transmit and receive (Tx/Rx) functionality within a single, durable housing.
- High echo sensitivity (≥ -60dB) ensures reliable signal detection in low-signal conditions.
- 30° ±2° beam angle provides a focused yet effective sensing coverage area.
Out of stock
The NU200E12TR-1 is a specialized ultrasonic transducer engineered for anemometry and airflow analysis. Its core is a piezoelectric ceramic element that vibrates at 200kHz, emitting and receiving ultrasonic pulses. The time-of-flight (ToF) of these pulses is directly influenced by wind speed, enabling precise measurement through established ultrasonic transit-time principles.
Constructed for industrial environments, the sensor’s robust design ensures stable performance across a range of operating conditions. Its high sensitivity and focused 30° beam angle make it effective for both ducted airflow monitoring and open-environment wind speed measurement, providing a reliable analog signal output for subsequent conditioning and data acquisition systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
