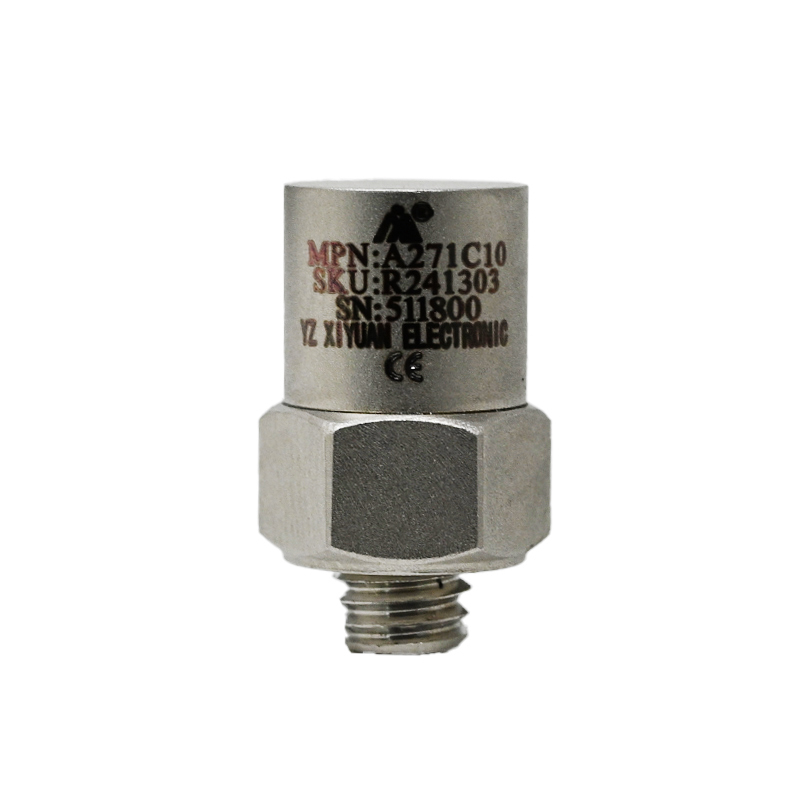

XIYUAN A271C10 IEPE Piezoelectric Accelerometer Sensor, 10mV/g Sensitivity, 160Hz, ±500g Peak, M3 Mount
The XIYUAN A271C10 is a high-sensitivity IEPE piezoelectric accelerometer sensor designed for precision vibration monitoring and modal analysis. With a 10mV/g sensitivity at 160Hz and a wide frequency response from 1Hz to 12kHz, it integrates seamlessly with standard IEPE-compatible data acquisition systems, industrial PLCs, and diagnostic equipment for reliable acceleration measurement.
Features
- IEPE voltage output with integrated preamplifier for direct connection to DAQ systems.
- High sensitivity of 10mV/g at 160Hz for precise low-level vibration detection.
- Compact, rugged design measuring only 8.5mm x 13mm with an M3 mounting thread.
- Wide operating temperature range from -40°C to +120°C for harsh industrial environments.
- Robust PZT-5 piezoelectric material ensures high shock resistance up to ±1000g peak.
Out of stock

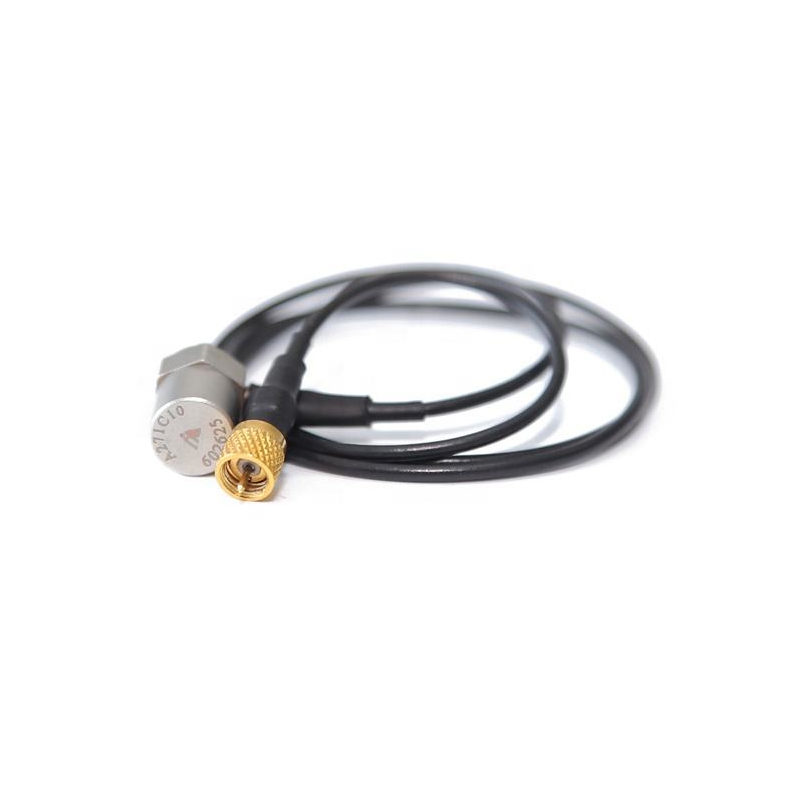

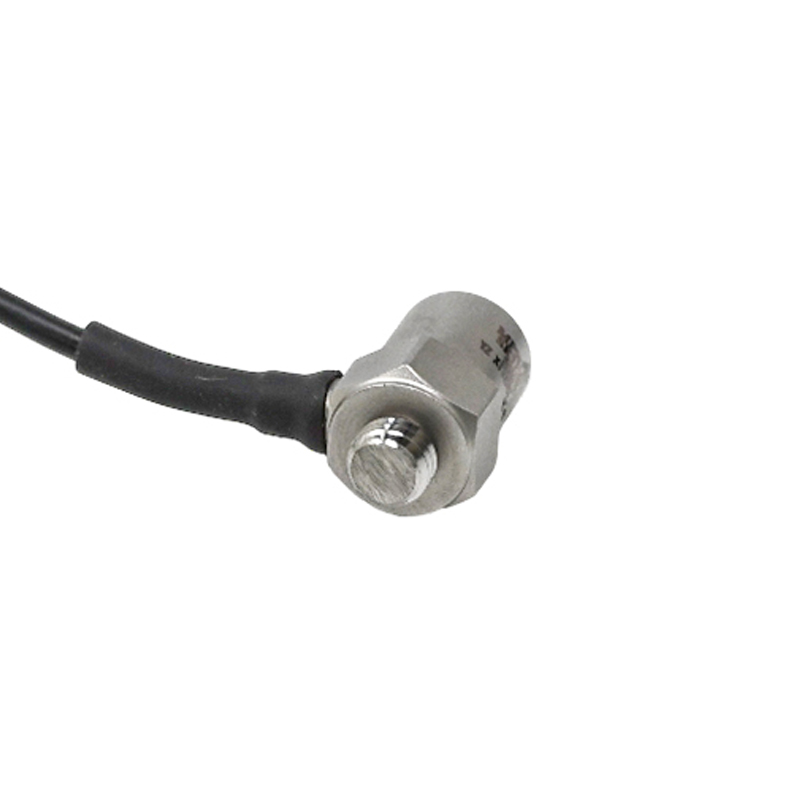

The XIYUAN A271C10 accelerometer utilizes a piezoelectric sensing element (PZT-5) that generates a charge proportional to applied acceleration. This charge is converted to a low-impedance voltage signal by the integrated IEPE (Integrated Electronics Piezo-Electric) preamplifier, providing a stable, noise-immune output suitable for long cable runs without significant signal degradation. The sensor’s miniature, side-exit coaxial cable design is optimized for installation in space-constrained applications.
Engineered for durability, the hermetically sealed housing and robust construction allow reliable operation across a broad temperature spectrum and in high-vibration industrial settings. The sensor delivers a linear frequency response and maintains signal integrity for critical applications in predictive maintenance, structural health monitoring, and equipment diagnostics.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 2 × 1 × 1.3 cm |
