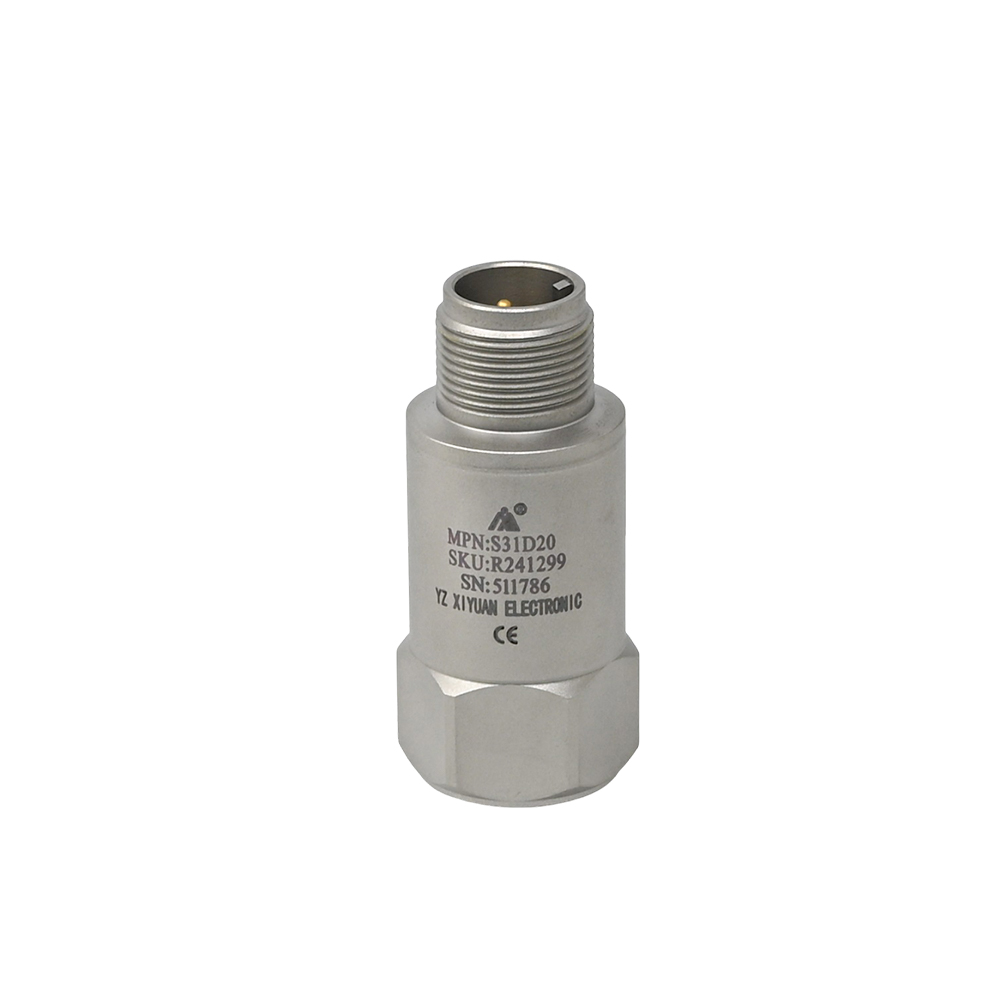

XIYUAN S31D20 Integrated Speed & Temperature Sensor - 4-20mA RMS Output, IP65, Stainless Steel
The XIYUAN S31D20 is an industrial piezoelectric vibration and temperature sensor delivering a 4-20mA RMS current output for direct integration with PLCs, DCS, and SCADA systems. It provides continuous monitoring of absolute vibration velocity (0-20 mm/s) and ambient temperature (-40°C to +85°C) for predictive maintenance in harsh industrial environments.
Features
- Integrated piezoelectric sensor measures vibration velocity (0-20 mm/s) and temperature (-40°C to +85°C)
- Industry-standard 4-20mA RMS current loop output for robust, noise-immune signal transmission
- IP65-rated stainless steel housing ensures dust-tight and splash-proof operation
- Wide frequency response from 10 Hz to 1000 Hz (±1 dB) for comprehensive machine monitoring
- High shock resistance (up to 2000g) and operates from a 15-30 VDC supply
Out of stock
The XIYUAN S31D20 employs a piezoelectric sensing element to convert mechanical vibration into a proportional electrical signal, specifically measuring absolute vibration velocity. A built-in temperature sensor provides simultaneous ambient temperature readings. The dual-parameter data is conditioned into a single, industry-standard 4-20mA RMS current output, ensuring high signal integrity over long cable runs in electrically noisy industrial settings.

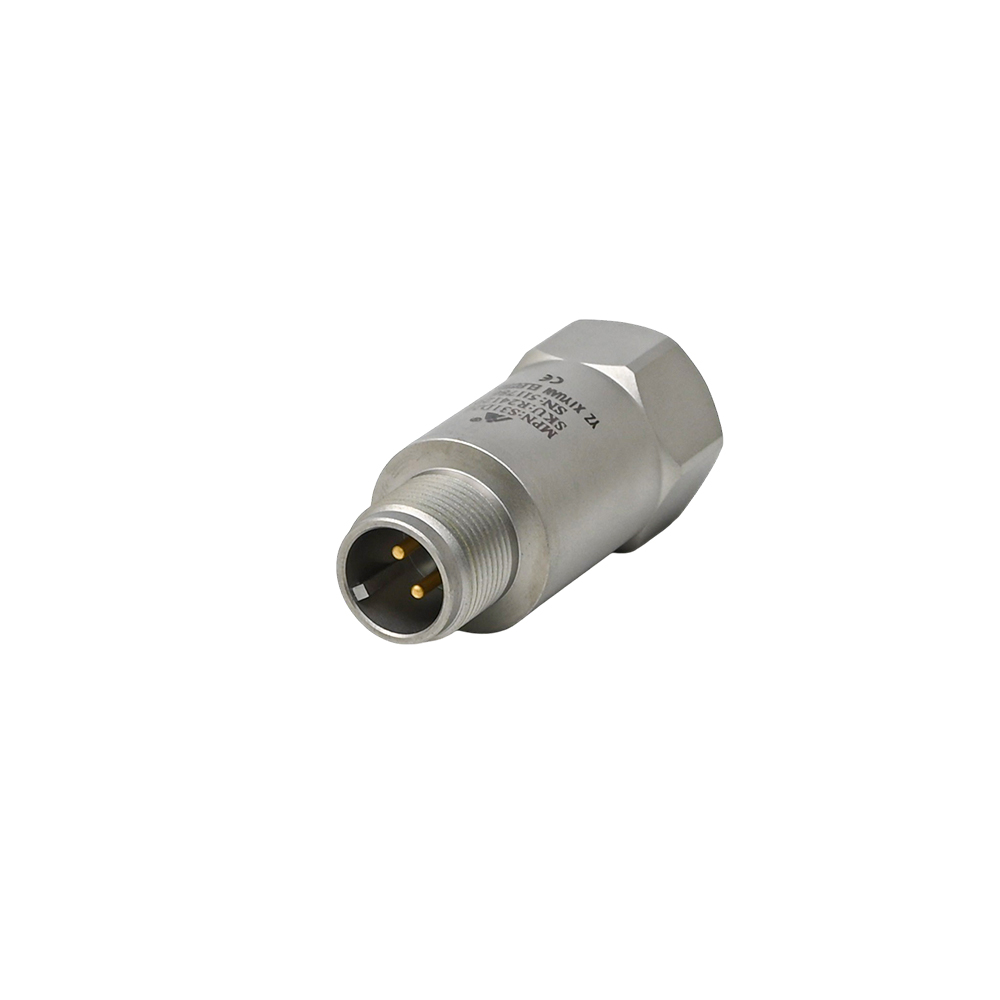

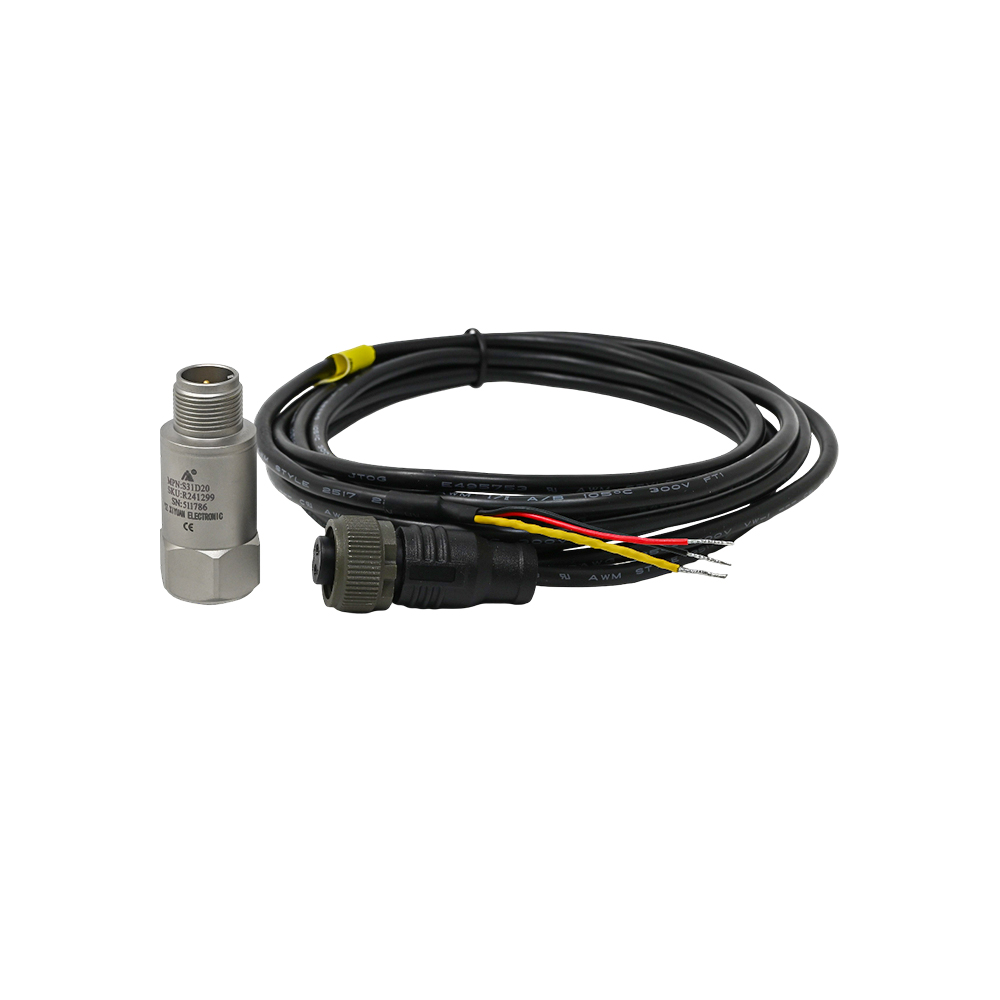

Housed in a robust stainless steel shell with an IP65 protection rating, the sensor is designed for continuous operation in demanding environments from -40°C to +85°C. Its compact form factor, M6 bolt mounting, and MIL two-core socket compatibility facilitate straightforward installation on motors, pumps, compressors, and other rotating machinery for condition-based monitoring and predictive maintenance programs.
Additional Information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 5.5 × 3 cm |
