ACEBOTT Ultrasonic Nebulizer Humidifier Module Easy-Plug - PWM Control for ESP32/Arduino

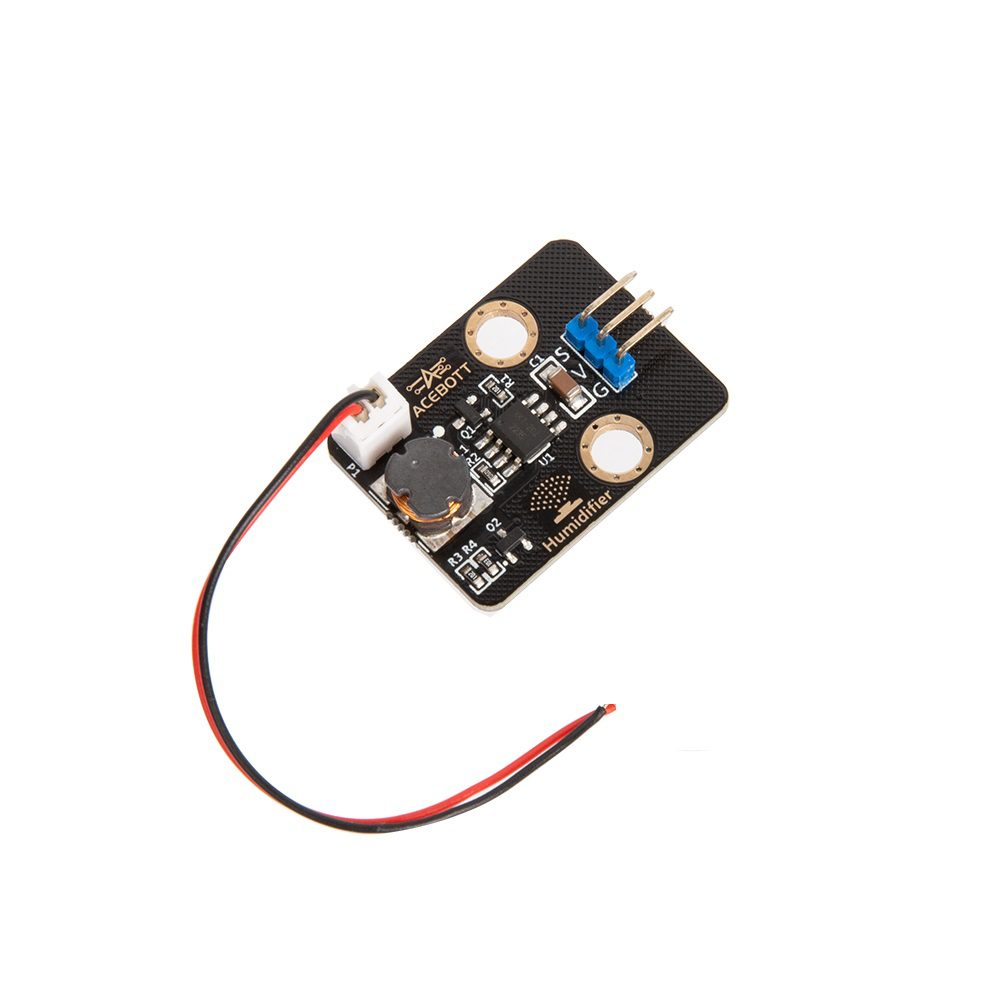

ACEBOTT Ultrasonic Nebulizer Humidifier Module Easy-Plug - PWM Control for ESP32/Arduino - Image 2
SKU: SENS-2818
📋 GST Invoice Available

ACEBOTT Ultrasonic Nebulizer Humidifier Module Easy-Plug - PWM Control for ESP32/Arduino

₹759.00 (Inclusive of all taxes)
Out of Stock

The ACEBOTT Ultrasonic Nebulizer Humidifier Module is a piezoelectric atomizer designed for easy integration with ESP32, Arduino, and other 5V microcontroller platforms. It generates a fine mist of 4-6 micron water droplets via PWM control for precise humidification and cooling applications.

Features

  • Piezoelectric ceramic atomizer generates 4-6 micron water droplets for efficient humidification.
  • PWM falling-edge trigger input for precise on/off control from microcontrollers.
  • Wide operating temperature range from -20°C to +70°C for robust environmental performance.
  • Compact 3.16cm x 2.38cm footprint with easy-plug connectors for simplified integration.
  • 5V DC operating voltage compatible with common development boards like ESP32 and Arduino.

Out of stock

Description

This module utilizes a piezoelectric ceramic ring bonded to a microporous metal steel sheet. When driven by a PWM signal from its integrated circuit board, the ceramic element vibrates at high frequency, forcing water through the sheet’s micropores to create a fine, cool mist. The design ensures efficient atomization with minimal energy consumption.

Engineered for reliability, the module operates across a broad temperature range and is triggered by a falling-edge PWM signal, providing straightforward digital control for automated systems, environmental chambers, or DIY projects requiring localized humidification or cooling.

Key Features

  • High-frequency piezoelectric ceramic technology for consistent mist generation.
  • Produces ultra-fine 4-6 micron water droplets for rapid evaporation and effective humidification.
  • Integrated driver board accepts 5V logic PWM signals for direct microcontroller interface.
  • Robust construction with a wide operating temperature range of -20°C to +70°C.
  • Compact form factor (3.16cm x 2.38cm) with easy-plug connectors for rapid prototyping.
  • Falling-edge trigger mechanism ensures precise activation and control timing.
  • Optimized performance-to-cost ratio for educational, hobbyist, and light industrial applications.

Applications

  • Desktop or enclosure humidification for electronics cooling and climate control.
  • DIY fog/mist effects for terrariums, model displays, or special effects projects.
  • Prototype development for portable medical nebulizers or aroma diffusers.
  • Microclimate control in automated plant growth chambers and greenhouses.
  • Laboratory equipment requiring precise local humidity adjustment.

Technical Specifications

Item TypeUltrasonic Humidifier / Nebulizer Module
Operating Voltage5 VDC
Control SignalPWM (Falling Edge Trigger)
Mist Particle Size4 - 6 microns
Operating Temperature-20°C to +70°C
TechnologyPiezoelectric Ceramic Atomization
Module DimensionsApprox. 3.16 cm x 2.38 cm
Primary CompatibilityESP32, Arduino (5V Logic)

Frequently Asked Questions

What is the operating voltage and control signal for this nebulizer module?

The module operates on a 5V DC supply. Control is achieved via a PWM (Pulse Width Modulation) signal. It is specifically triggered on the falling edge of the PWM wave, allowing direct interface with digital pins on microcontrollers like ESP32 or Arduino running at 5V logic levels.

What size water droplets does this module produce?

The piezoelectric atomization process generates a very fine mist with water droplet sizes ranging from 4 to 6 microns. This small Particle size ensures efficient evaporation and effective humidification or cooling without causing wetness.

Can I use this module with a 3.3V logic microcontroller like an ESP32?

Yes, but caution is advised. While the module's driver board may accept 3.3V PWM signals, its power supply requires a stable 5V source. Ensure your 3.3V GPIO pin can trigger the falling-edge detection reliably, or use a simple logic level shifter for guaranteed operation.

What are the typical applications for this ultrasonic humidifier module?

Common applications include creating humidified environments for electronics cooling, DIY terrarium foggers, small-scale climate control in growth chambers, prototype medical nebulizers, aroma diffusers, and special effects projects requiring a fine mist. Its compact size makes it ideal for embedded projects.

Package Includes

  • 1 x ACEBOTT Ultrasonic Nebulizer Humidifier Module

Additional Information

Weight 0.01 kg
Dimensions 2.38 × 3.16 cm
