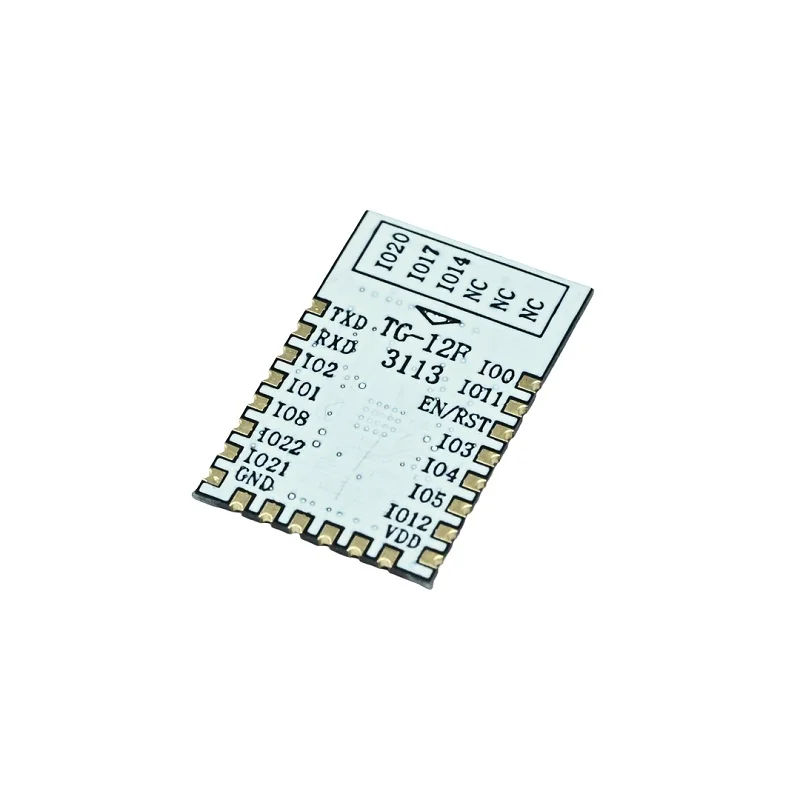

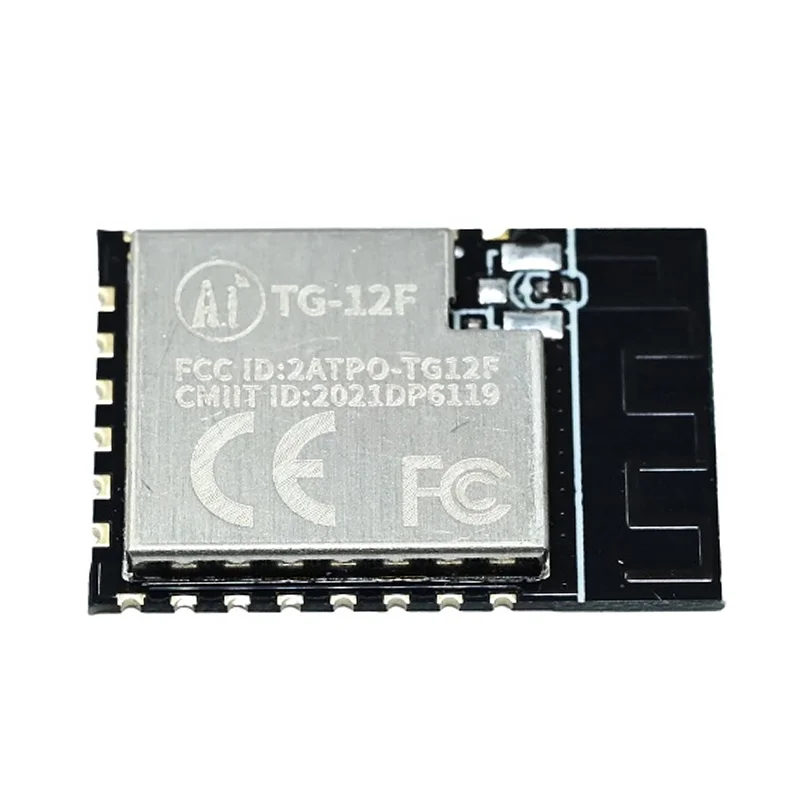

AI-Thinker TG-12F Wi-Fi + BLE 5.0 Module w/ PCB/IPEX Antenna
The AI-Thinker TG-12F is a 2.4 GHz Wi-Fi 802.11b/g/n and Bluetooth Low Energy 5.0 module based on the Pingtou TG7100C SoC, featuring a 192 MHz 32-bit RISC CPU, 2MB flash, and ultra-low-power sleep modes for IoT applications.
Features
- Dual-mode 2.4 GHz Wi-Fi (802.11b/g/n) and BLE 5.0 connectivity with data rates up to 150 Mbps.
- Powered by a 192 MHz 32-bit RISC CPU with FPU, 276 KB SRAM, 128 KB ROM, and 2 MB integrated flash.
- Ultra-low power operation with deep sleep current under 30 µA for battery-powered IoT nodes.
- Comprehensive peripheral set including SDIO, SPI, UART, I2C, PWM, ADC, DAC, and GPIO interfaces.
- Integrated hardware security with AES 128/192/256-bit encryption, SHA, TRNG, and PKA accelerators.
Out of stock
The AI-Thinker TG-12F is a highly integrated wireless SoC module designed for cost-sensitive, power-efficient IoT applications. It combines a complete 2.4 GHz Wi-Fi and Bluetooth 5.0 radio front-end with a capable 192 MHz microcontroller subsystem, enabling developers to build connected devices with minimal external components. The module’s architecture is optimized for low-duty-cycle operation, featuring advanced power management that drives deep sleep currents below 30 µA.
Built around the Pingtou TG7100C chip, the TG-12F offers a full suite of standard communication and control interfaces alongside robust hardware-based security features. It comes pre-integrated with firmware for direct connectivity to the Tmall Genie ecosystem, while also supporting a customizable SDK for Linux-based secondary development, providing a flexible path from prototyping to mass production.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
