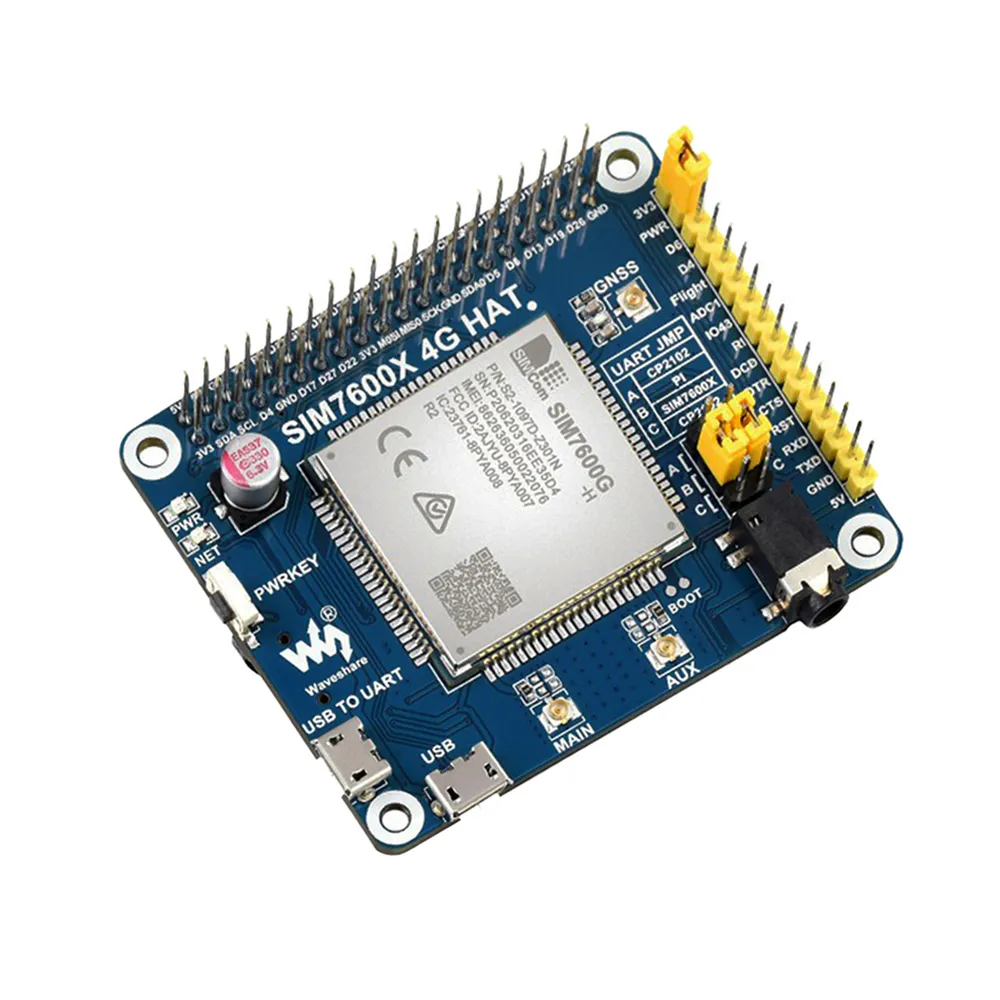

Waveshare SIM7600G-H 4G HAT for Raspberry Pi

₹10,219.00 (Inclusive of all taxes)
Out of Stock

The Waveshare SIM7600G-H 4G HAT is a versatile communication and GNSS positioning module designed for Raspberry Pi. It enables high-speed LTE Cat-4 4G, 3G, and 2G connectivity, alongside global positioning services (GPS/Beidou/GLONASS) for robust wireless applications.

Features

  • Integrates SIM7600G-H module for global LTE Cat-4 (up to 150Mbps DL) / 3G / 2G cellular communication.
  • Supports multi-constellation GNSS including GPS, BeiDou, and GLONASS for precise global positioning.
  • Standard Raspberry Pi 40-PIN GPIO header ensures wide compatibility across Raspberry Pi series boards and Jetson Nano.

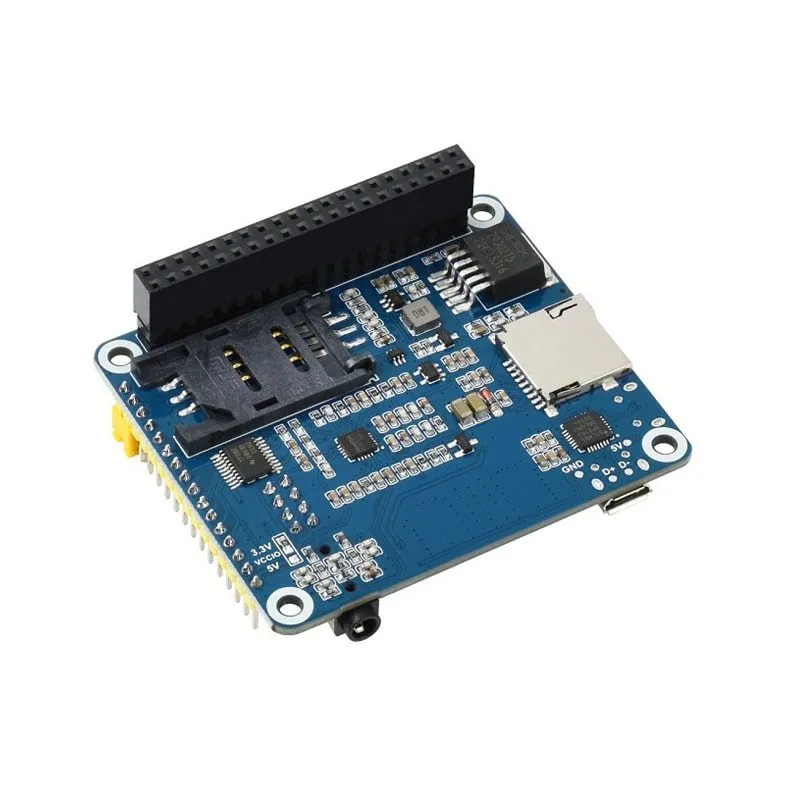

  • Features onboard audio jack, SIM card slot, and TF card slot for comprehensive mobile communication and data storage.
  • Offers flexible control via AT commands through USB or dedicated UART interfaces for various host platforms.

Out of stock

Description

The Waveshare SIM7600G-H 4G HAT transforms your Raspberry Pi or other compatible host boards into a powerful mobile communication and location-aware platform. Based on the robust SIM7600G-H module, it delivers high-speed LTE Cat-4 capabilities, offering downlink speeds of up to 150Mbps, making it ideal for data-intensive applications such as remote monitoring, IoT gateways, and video streaming from edge devices. Beyond its cellular prowess, the HAT incorporates a comprehensive GNSS receiver supporting GPS, BeiDou, and GLONASS, providing reliable real-time positioning data.

This versatile HAT integrates a CP2102 USB to UART converter for easy serial debugging and AT command communication, along with breakout UART control pins for seamless interfacing with microcontrollers like Arduino or STM32. Essential features include an onboard audio decoder (NAU8810) and 3.5mm jack for voice calls, a SIM card slot compatible with 1.8V/3V SIMs, and a TF card slot for local data storage. The HAT is powered by MP2128DT and MP1482 chips and includes a TXS0108EPWR voltage translator, ensuring stable operation across 3.3V/5V logic levels, making it a flexible solution for advanced embedded projects requiring reliable wireless connectivity and positioning.

Key Features

  • Standard Raspberry Pi 40PIN GPIO extension header, ensures compatibility with Raspberry Pi series boards and Jetson Nano.
  • Supports dial-up networking, telephone calls, SMS, TCP, UDP, DTMF, HTTP, and FTP protocols.
  • Integrated GNSS functionality with GPS, BeiDou, Glonass, and LBS base station positioning.
  • Onboard USB interface for direct AT command testing and GPS data acquisition.
  • Includes a CP2102 USB to UART converter for convenient serial debugging.
  • Breakout UART control pins allow connection with external host boards like Arduino/STM32.
  • SIM card slot supports both 1.8V and 3V SIM cards.
  • TF card slot provided for storing various data, including files and messages.
  • Features an onboard 3.5mm audio jack and NAU8810 audio decoder for voice call capabilities.
  • Equipped with two LED indicators, easy to monitor the operational status.
  • Selectable operating voltage (3.3V or 5V) via jumper, enabled by an onboard voltage translator.
  • Configurable baudrate from 300bps to 4Mbps (default 115200bps) with autobauding support.
  • Controlled via standard AT commands (3GPP TS 27.007, 27.005, and V.25TER command set).
  • Supports SIM application toolkit (SAT Class 3, GSM 11.14 Release 99, USAT).

Applications

  • IoT gateways and remote sensor monitoring with cellular backhaul.
  • Asset tracking and fleet management systems requiring GNSS capabilities.
  • Mobile communication projects for Raspberry Pi, including SMS and voice calls.
  • Edge computing solutions requiring robust internet connectivity in remote areas.
  • Industrial automation and telemetry with global positioning.

Technical Specifications

Module TypeSIM7600G-H
Cellular Bands (2G)GSM/GPRS/EDGE: 850/900/1800/1900 MHz
LTE CategoryCat-4 (Up to 150Mbps DL / 50Mbps UL)
GNSS SystemsGPS, BeiDou, GLONASS
GNSS Receiver Type16-channel; C/A Code
GNSS Sensitivity-159 dBm (GPS) / -158 dBm (GLONASS)
Cold Start Time (TTFF)<35s
Hot Start Time (TTFF)<1s
SMS SupportMT, MO, CB, Text, PDU (storage on USIM/ME)
Operating Voltage3.3V ~ 5V DC
Operating Temperature-30°C to 80°C

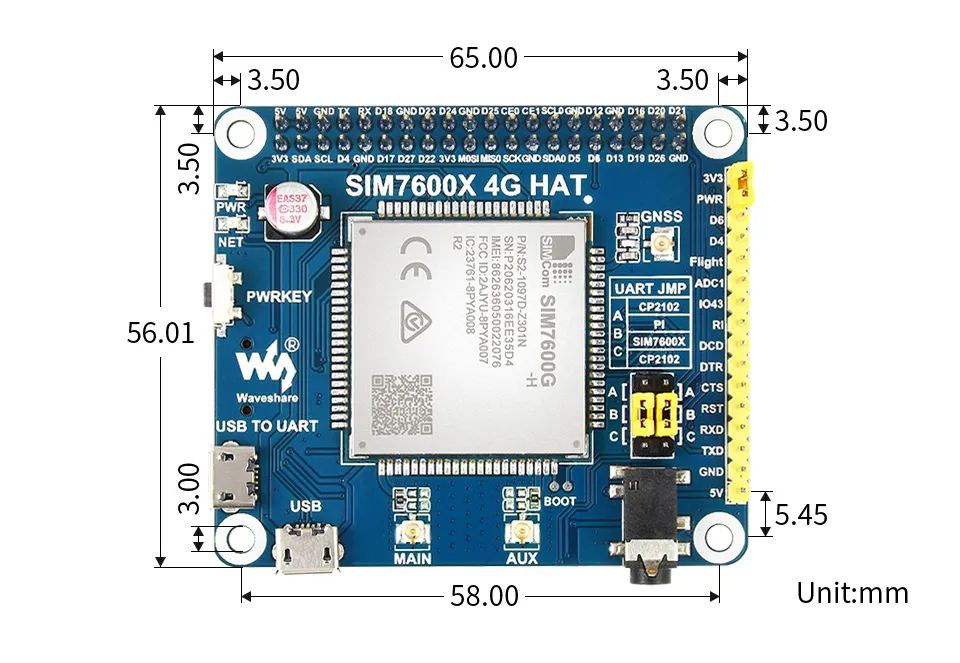

Dimensions65mm x 56mm
Weight25g

Frequently Asked Questions

What operating voltage does the SIM7600G-H HAT support for connection to a Raspberry Pi?

The HAT supports an operating voltage of 3.3V to 5V DC. It includes an onboard voltage translator, configurable via jumper, ensuring compatibility with the Raspberry Pi's 3.3V GPIO as well as other 5V microcontrollers like some Arduino boards.

How can I communicate with the SIM7600G-H module to send AT commands or access GPS data?

Communication can be achieved via the onboard USB interface, which enumerates as a serial port for AT commands and GPS NMEA data. Alternatively, you can use the dedicated UART control pins, which can be connected to the Raspberry Pi's UART or an external microcontroller like an STM32.

What GNSS systems does the SIM7600G-H HAT support for positioning?

The SIM7600G-H HAT features a multi-constellation GNSS receiver. It supports GPS, BeiDou, and GLONASS satellite systems, providing robust and accurate global positioning data for applications like asset tracking or navigation in various environments.

Can this HAT be used for voice calls and SMS?

Yes, the SIM7600G-H HAT supports both voice calls and SMS functionality. It includes an onboard NAU8810 audio decoder and a 3.5mm earphone/mic jack, allowing you to make and receive calls, and send/receive SMS messages via AT commands.

Is the SIM7600G-H compatible with other development boards besides Raspberry Pi?

Yes, while designed for Raspberry Pi with a 40-PIN GPIO header, its breakout UART control pins and flexible voltage translator allow it to be interfaced with other host boards like Arduino or STM32. The onboard CP2102 USB to UART converter also provides a convenient interface for any computer.

Package Includes

  • 1 x SIM7600G-H 4G HAT Board

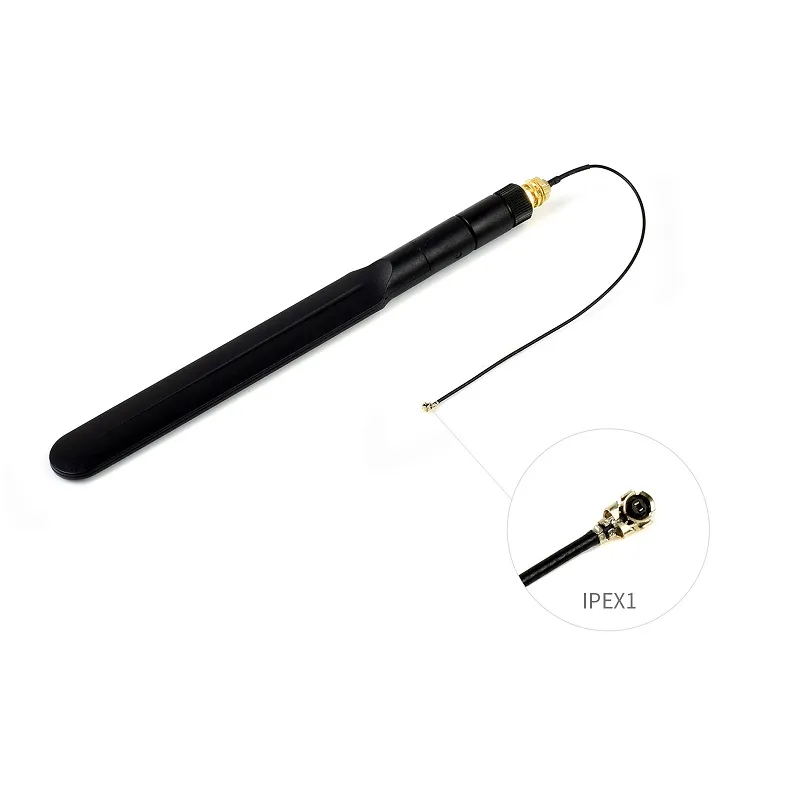

  • 1 x 360° Foldable LTE Antenna

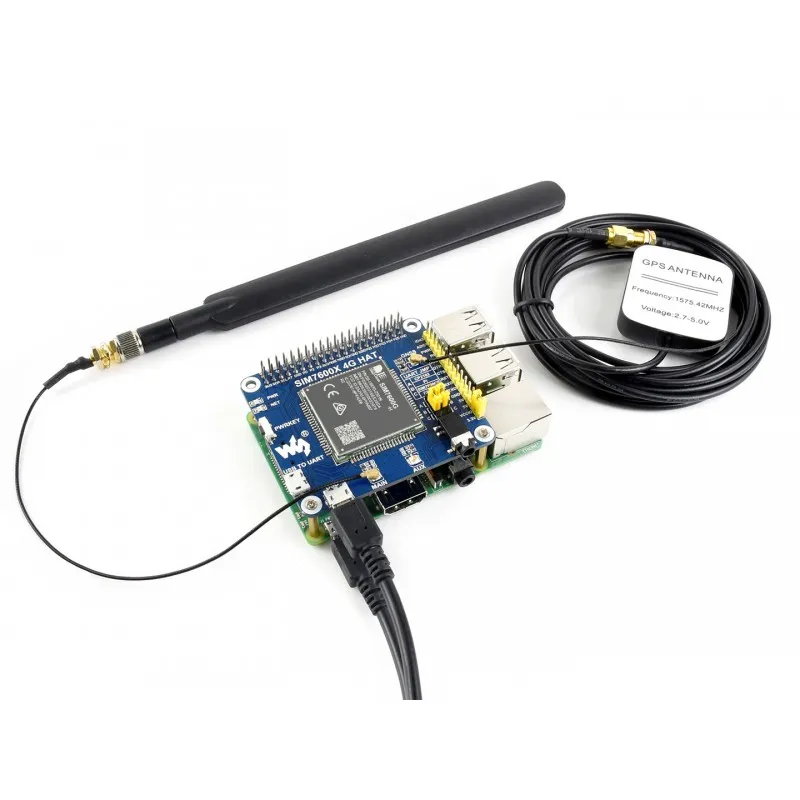

  • 1 x Magnetic Base GPS External Antenna (B) with 2-meter cable
  • 2 x USB Type A Plug to Micro Plug Cable (Small + Long)
  • 1 x Raspberry Pi Screws and Standoff Pack (2pcs)
  • 2 x Antenna Connector

Additional Information

Weight 0.025 kg
Dimensions 6.5 × 5.6 cm
