Waveshare SIM7600G-H 4G HAT (B) for Raspberry Pi LTE Cat-4

Description

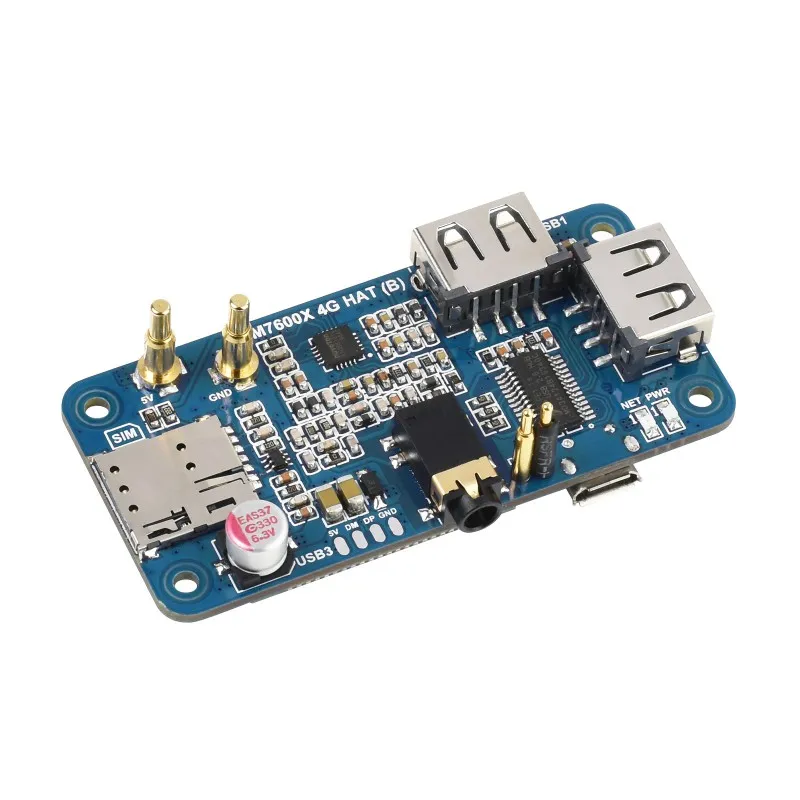

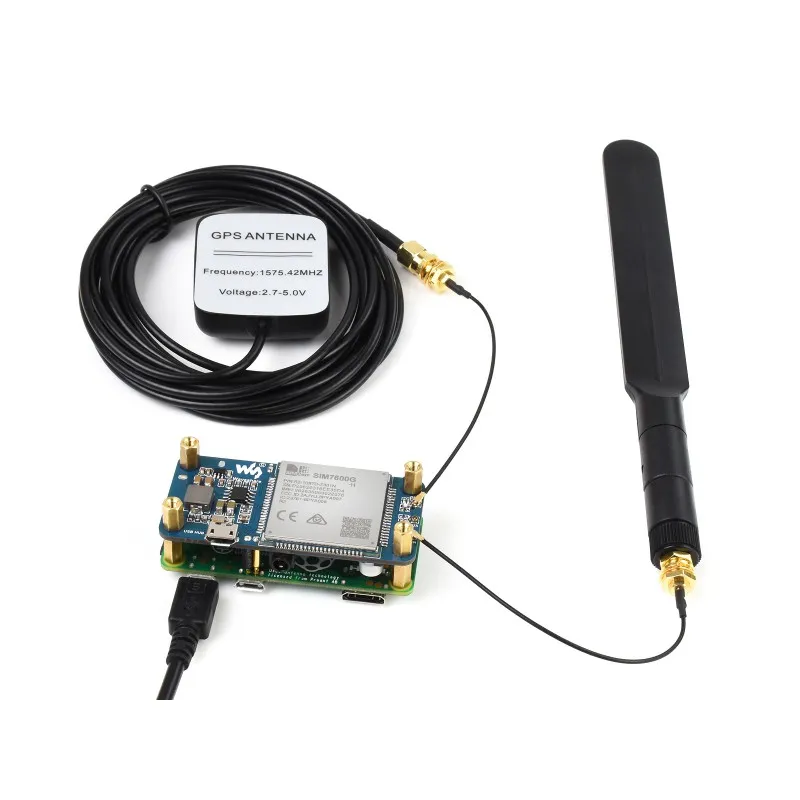

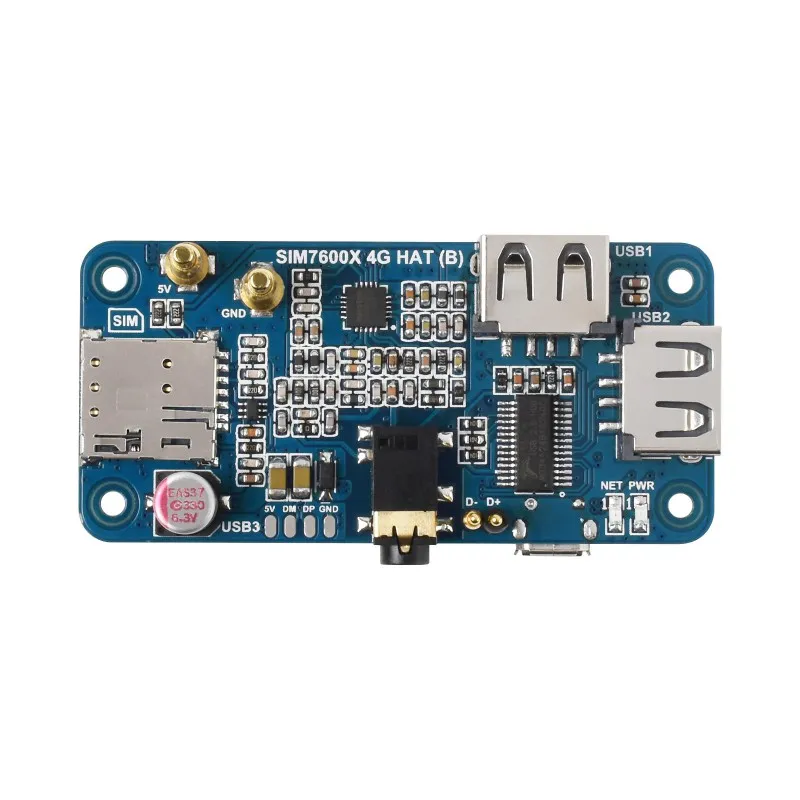

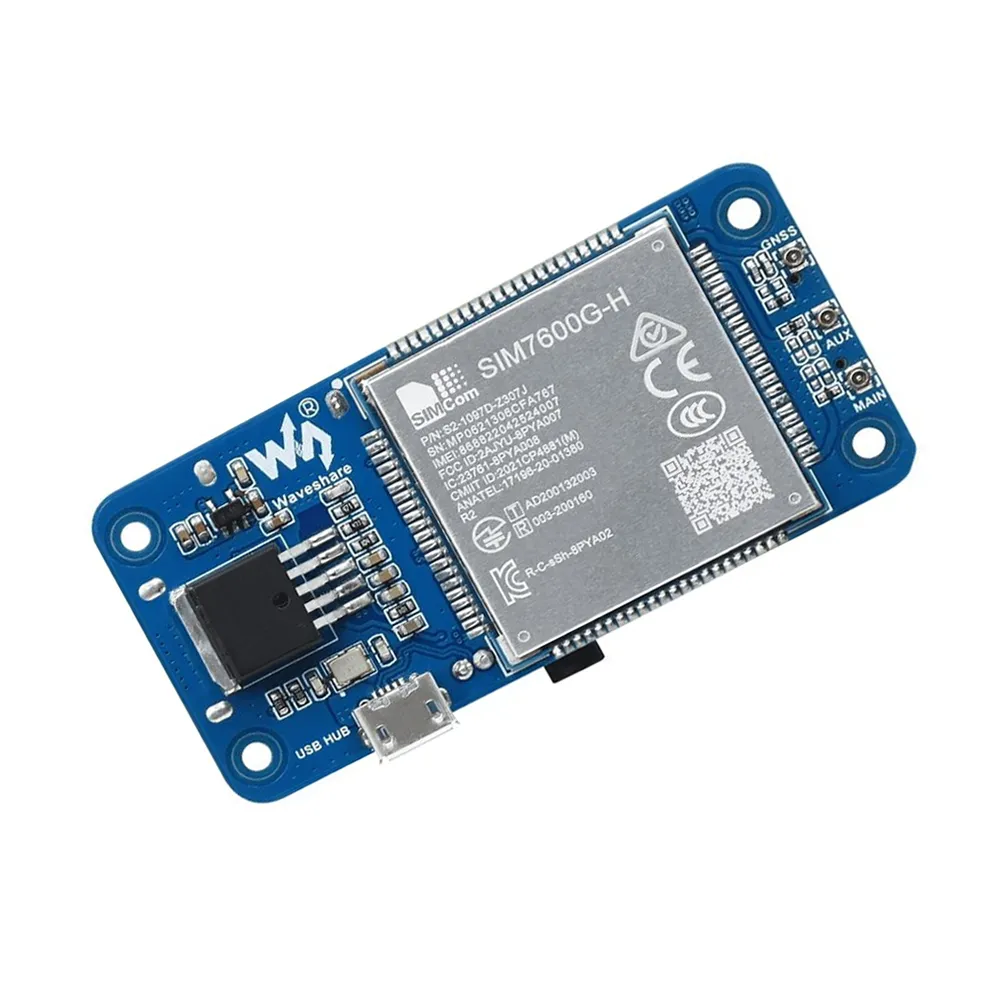

The Waveshare SIM7600G-H 4G HAT (B) is a versatile communication module engineered for Raspberry Pi platforms, providing reliable global LTE Cat-4 connectivity. Incorporating the SIM7600G-H module, this HAT ensures compatibility with 2G, 3G, and 4G networks across various global bands. It features flexible connectivity options, including a dedicated pogo pin for Raspberry Pi Zero/Zero W, and a Micro USB connector for other Raspberry Pi boards or even a PC, enhancing its adaptability for diverse embedded projects.

Beyond robust cellular capabilities, the HAT integrates a comprehensive GNSS receiver supporting GPS, BeiDou, Glonass, GALILEO, and QZSS, alongside LBS base station positioning for accurate location tracking. It facilitates essential communication functions such as dial-up, telephone calls via an onboard audio jack, and SMS messaging. The integrated USB HUB extends the Raspberry Pi’s connectivity, allowing for additional USB peripherals while providing simultaneous 4G network access. Control is managed via standard AT commands (3GPP TS 27.007, 27.005, and V.25TER), simplifying integration into existing development workflows and supporting SIM application toolkit functionalities.
