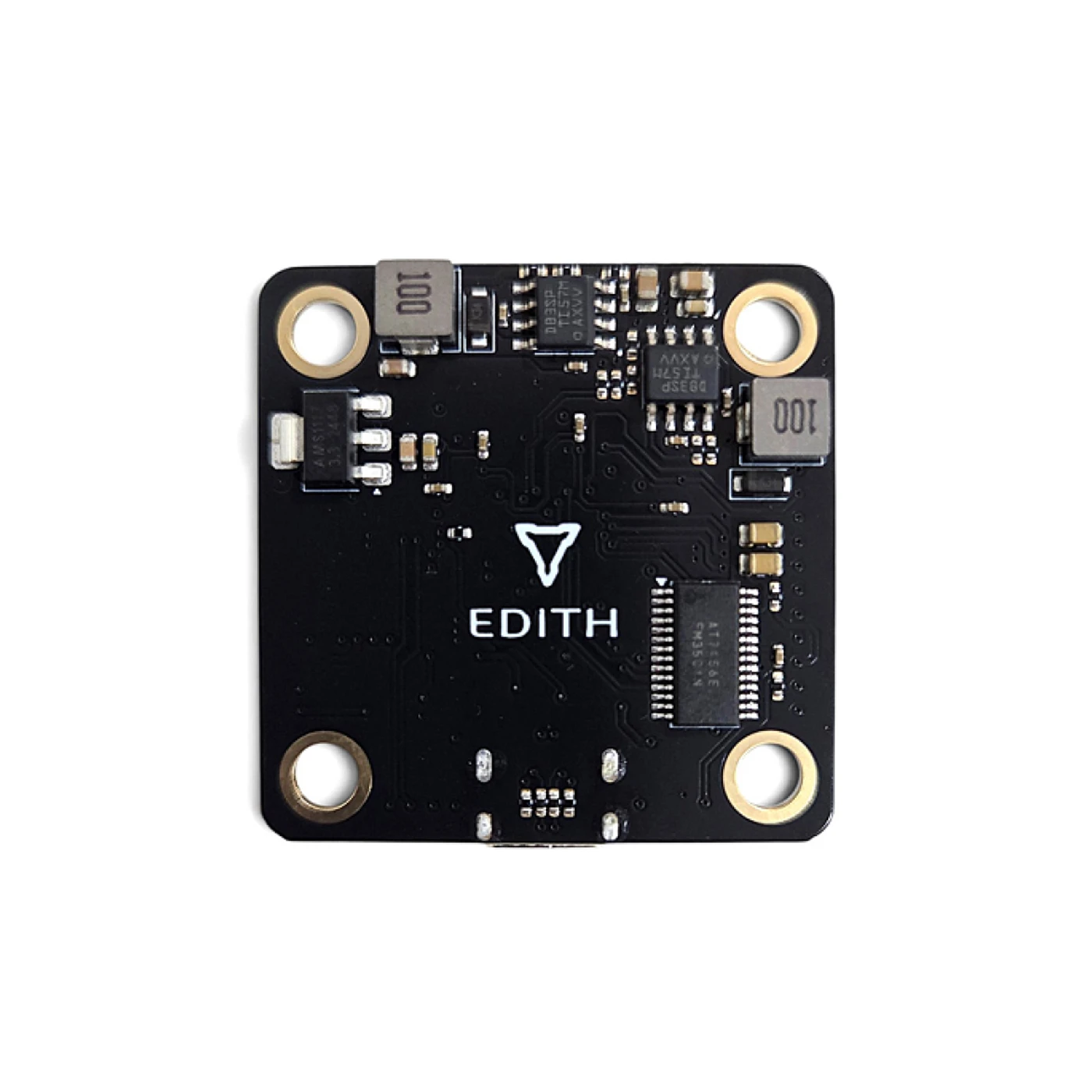

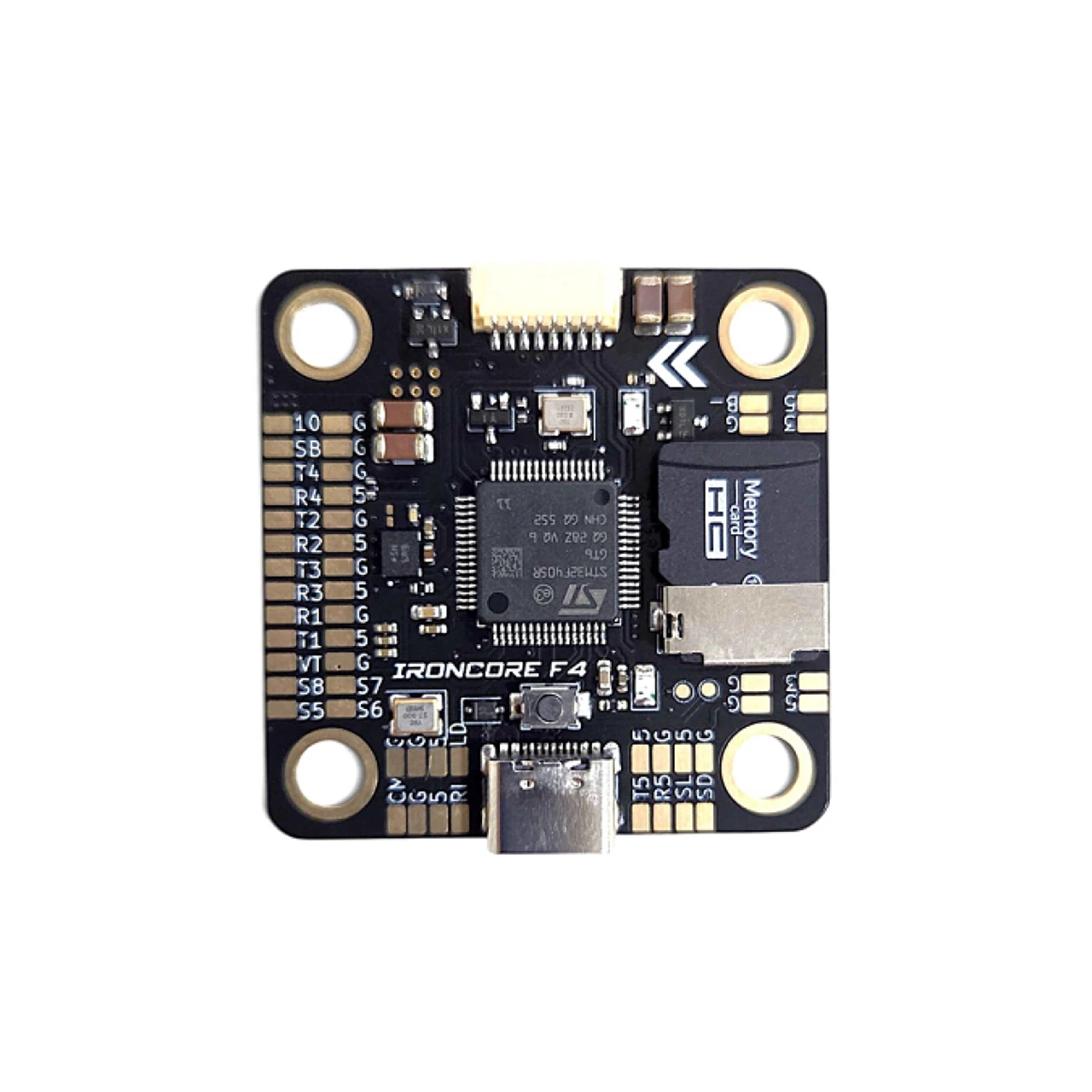

EDITHFPV Ironcore F4 Flight Controller - 30.5x30.5mm
The EDITHFPV Ironcore F4 Flight Controller is a high-performance autopilot board featuring an STM32F405 MCU, designed for 3S to 6S LiPo systems and compatible with ArduPilot and Betaflight firmware for versatile UAV and FPV drone applications.
Features
- Powered by a robust STM32F405 MCU for high-speed, reliable flight processing.
- Comprehensive sensor suite includes BMP270 IMU, BMP280 barometer, and AT7456E OSD for precise stabilization and telemetry.
- Offers extensive connectivity with 6 UART ports and support for up to 8 motor/servo outputs.
- Includes 4GB external BlackBox logging via microSD card for detailed flight data analysis.
- Standard 30.5×30.5mm mounting pattern for easy integration into medium to high-end drone frames.
Out of stock
The Ironcore F4 Flight Controller is engineered as a versatile autopilot solution, leveraging the computational power of the STM32F405 microcontroller to handle complex flight algorithms with stability. Its integrated BMP270 IMU provides high-precision gyroscopic and accelerometer data, while the BMP280 barometer delivers accurate altitude hold capabilities, essential for autonomous flight modes.
Designed for seamless system integration, the board features six UART ports for connecting peripherals such as GPS modules, telemetry radios, and video transmitters. The onboard AT7456E chip provides a crisp, customizable on-screen display for real-time flight data. With native support for both ArduPilot and Betaflight firmware, it caters to a wide range of pilot preferences, from autonomous mapping missions to acrobatic FPV freestyle.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 8 × 8 × 4 cm |
