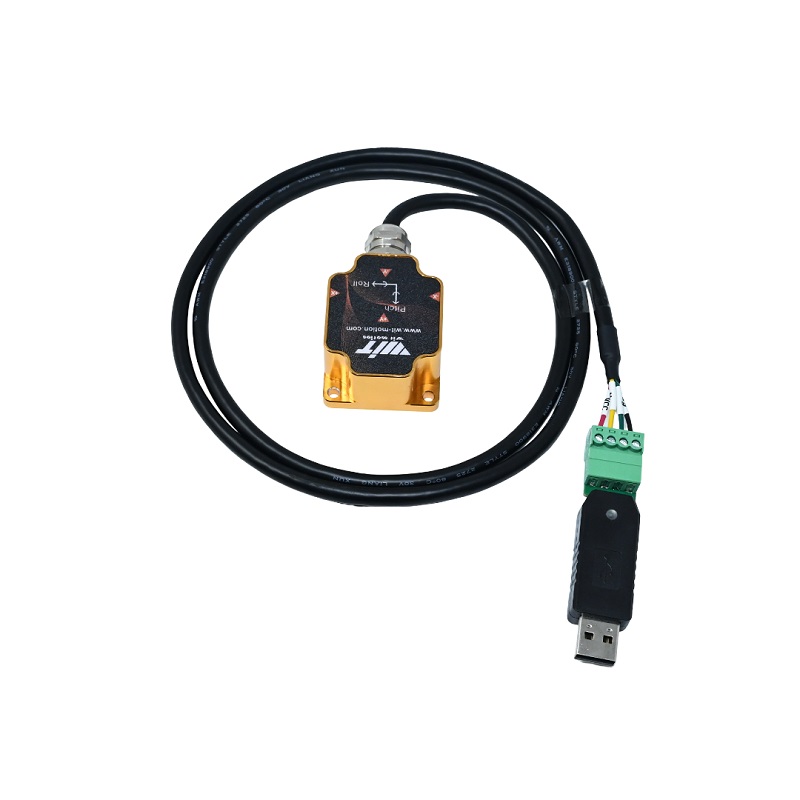

WTMotion HWT6073-485 Ultra-High Accuracy 9-Axis IMU Sensor | Industrial-Grade AHRS Module

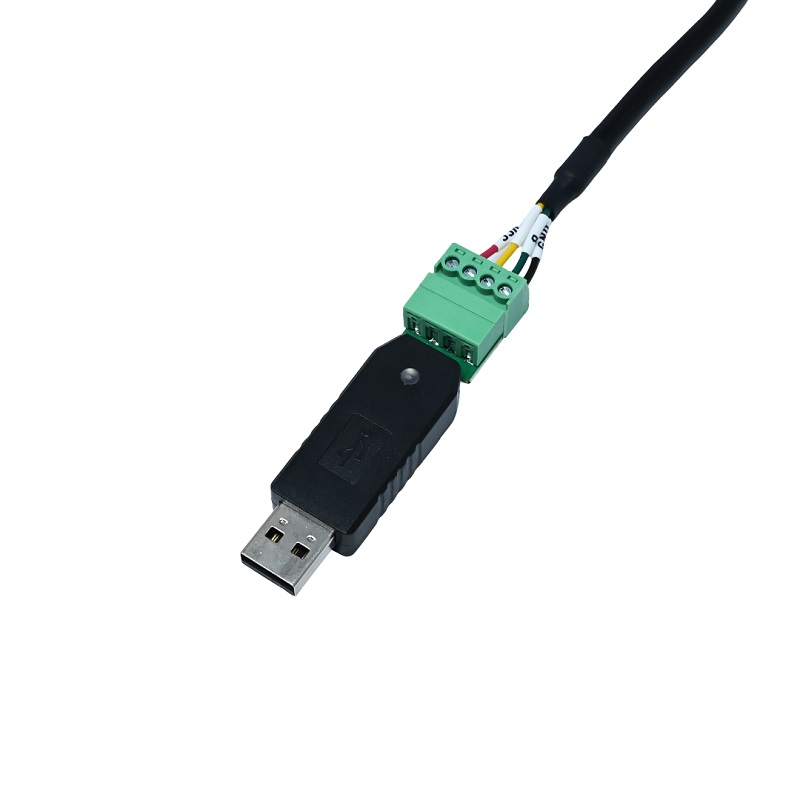

WTMotion HWT6073-485 Ultra-High Accuracy 9-Axis IMU Sensor | Industrial-Grade AHRS Module - Image 2

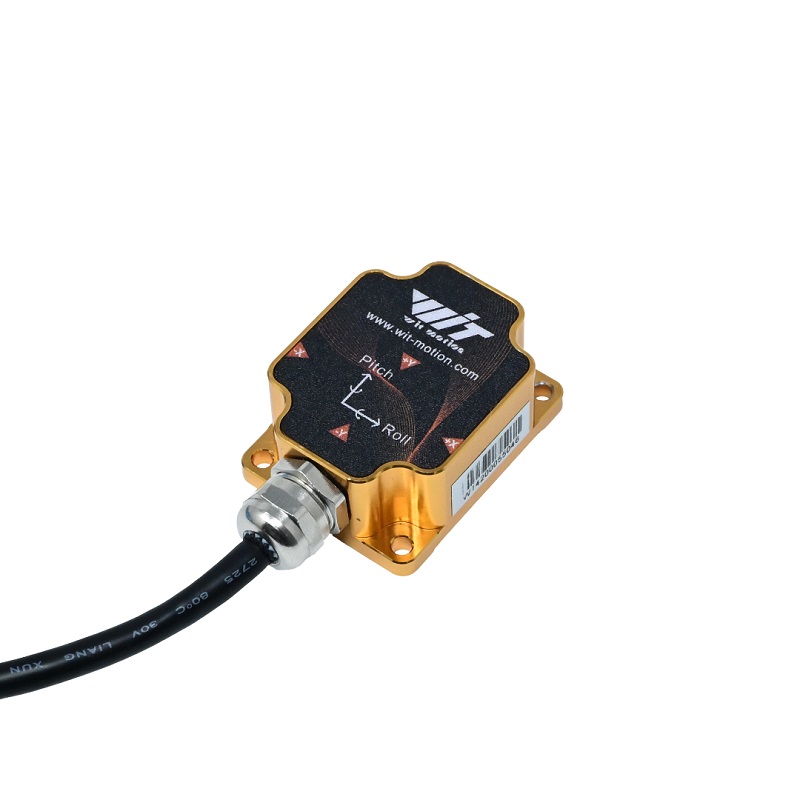

WTMotion HWT6073-485 Ultra-High Accuracy 9-Axis IMU Sensor | Industrial-Grade AHRS Module - Image 3
SKU: SENS-1099
📋 GST Invoice Available

WTMotion HWT6073-485 Ultra-High Accuracy 9-Axis IMU Sensor | Industrial-Grade AHRS Module

₹56,699.00 (Inclusive of all taxes)
Out of Stock

The WTMotion HWT6073-485 is an industrial-grade 9-axis IMU and AHRS module delivering ultra-high static tilt accuracy of 0.001°. Featuring RS485/TTL UART communication, it provides real-time attitude data at up to 200 Hz for integration with PLCs, industrial PCs, and embedded systems like Raspberry Pi or STM32.

Features

  • Ultra-high static tilt accuracy of 0.001° for precision attitude measurement.
  • 9-axis MEMS sensor fusion (3-axis gyro, 3-axis accelerometer, 3-axis magnetometer).
  • High-speed data output up to 200 Hz via RS485 or TTL UART interface.
  • Industrial operating temperature range from -40°C to +125°C.
  • Includes full SDK, development manual, and PC configuration software.

Out of stock

Description

The HWT6073-485 is a next-generation Attitude and Heading Reference System (AHRS) module engineered for mission-critical industrial applications. Its core utilizes high-performance MEMS sensors combined with advanced Kalman filtering and proprietary fusion algorithms to deliver real-time, compensated roll, pitch, and yaw angles with exceptional dynamic performance and long-term stability.

Designed for harsh environments, the module ensures reliable operation across an extended temperature range. The integrated calibration and comprehensive software tools significantly reduce development time, enabling rapid deployment in complex motion control, navigation, and stabilization systems.

Key Features

  • Industrial-grade 9-axis IMU with integrated magnetometer for full 3D orientation.
  • Achieves 0.001° static tilt accuracy, rivaling professional inclinometers.
  • Advanced Kalman filtering provides real-time sensor fusion and drift compensation.
  • High-bandwidth 200 Hz data update rate for capturing rapid motion dynamics.
  • Wide operating voltage range (5V DC) with robust RS485/TTL UART interface.
  • Extended operational temperature range from -40°C to +125°C.
  • Complete development suite including SDK, manual, and PC configuration software.
  • Compact, durable housing designed for reliable performance in demanding installations.

Applications

  • Precision platform leveling and stabilization in industrial machinery.
  • Attitude determination for autonomous guided vehicles (AGVs) and robotics.
  • Motion capture and control in aerospace and drone flight systems.
  • Structural health monitoring and inclination measurement in civil engineering.
  • Navigation and orientation sensing for agricultural and marine equipment.

Technical Specifications

Manufacturer Part NumberHWT6073-485
Sensor Type9-Axis IMU (Gyroscope, Accelerometer, Magnetometer)
Static Tilt Accuracy0.001°
Data Update RateUp to 200 Hz
Output InterfaceRS485 / TTL UART
Operating Voltage5 VDC
Operating Temperature-40°C to +125°C
Dimensions (L x W)60 mm x 40 mm
Weight121 g

Frequently Asked Questions

What is the communication interface of the HWT6073-485 module?

The module features a dual-interface output supporting both RS485 and TTL-level UART communication. This allows for direct integration into industrial networks using the robust RS485 standard or connection to microcontrollers like Arduino, STM32, or Raspberry Pi using 3.3V/5V TTL logic.

How accurate is the tilt measurement and what does 'static accuracy' mean?

The module offers an ultra-high static tilt accuracy of 0.001°. 'Static accuracy' refers to the precision of the roll and pitch angle measurements when the sensor is in a stable, non-moving state. This high precision is achieved through advanced MEMS sensors and sophisticated Kalman filtering algorithms.

What software support is provided for system integration?

WTMotion provides a comprehensive software development kit (SDK) including a detailed development manual, PC configuration software, and communication protocol documentation. This support enables developers to quickly read sensor data, configure parameters, and integrate the module into custom control systems or data acquisition platforms.

Package Includes

  • 1 x WTMotion HWT6073-485 9-Axis IMU Sensor Module
  • 1 x Product Inspection Report

Additional Information

Weight 0.121 kg
Dimensions 6 × 4 cm
