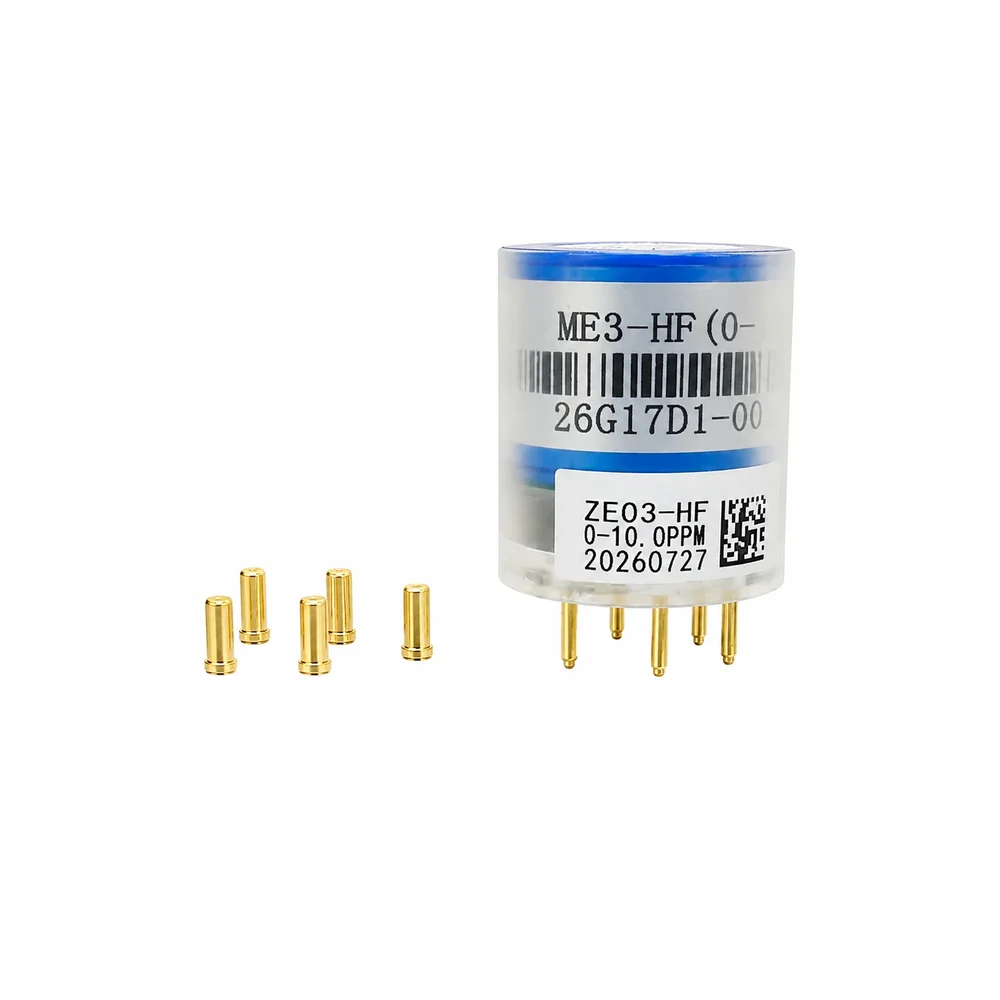

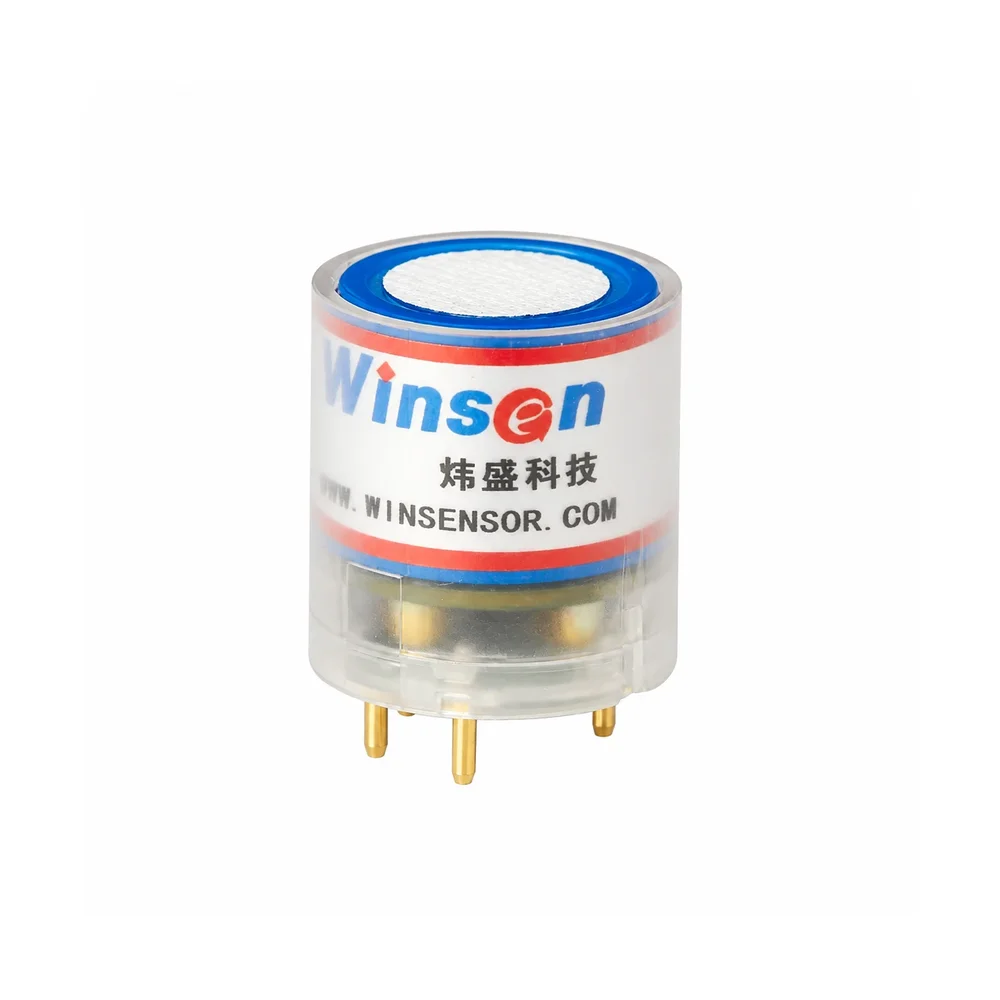

Winsen ZE03-HF Electrochemical Hydrogen Fluoride (HF) Gas Sensor Module
The Winsen ZE03-HF is an electrochemical gas sensor module designed for precise detection of Hydrogen Fluoride (HF) concentrations from 0–10 ppm. It provides a linear current output signal for easy integration into industrial safety systems, environmental monitoring stations, and data acquisition setups.
Features
- Electrochemical sensing principle for specific Hydrogen Fluoride (HF) detection.
- Measurement range of 0–10 ppm with a high 0.1 ppm resolution.
- Fast T90 response time ≤90 seconds for timely gas level alerts.
- Linear output with low zero drift ensures stable, repeatable readings.
- Operates with 0 mV bias voltage and a 10 Ω recommended load resistor.
Out of stock
The Winsen ZE03-HF module employs a precision electrochemical cell that generates a current signal directly proportional to the concentration of Hydrogen Fluoride (HF) gas present. This principle ensures high selectivity and a linear response across its specified 0–10 ppm range, making it suitable for accurate quantitative analysis.
Engineered for reliability in demanding environments, the sensor features minimal zero drift and excellent repeatability. Its robust design is intended for continuous monitoring applications within industrial safety systems and environmental protection networks, providing a critical early warning for HF exposure.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 4 × 3 × 3 cm |
