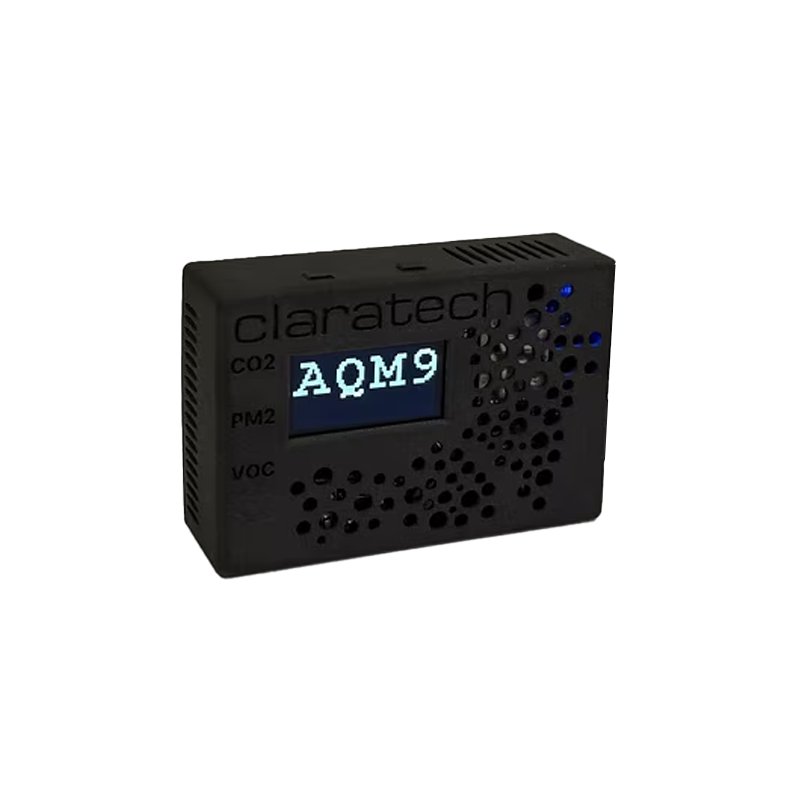

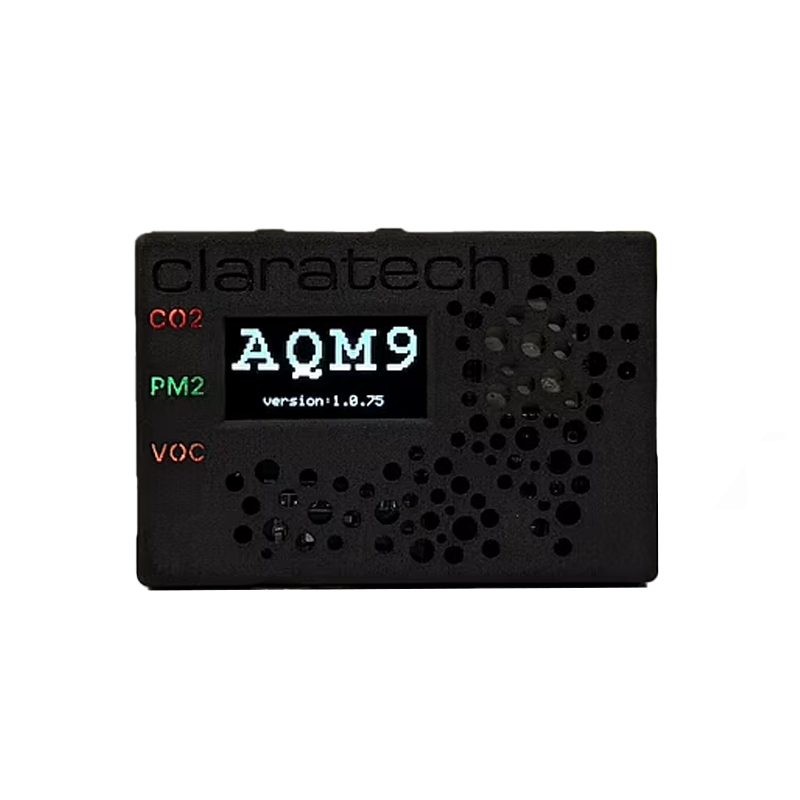

Claratech AQM9 Air Quality Monitor - ESP32-WROOM-32E, Tasmota, Matter over Wi-Fi
Claratech AQM9 Air Quality Monitor - ESP32-WROOM-32E, Tasmota, Matter over Wi-Fi - Image 2
SKU: SENS-0236
📋 GST Invoice Available

Claratech AQM9 Air Quality Monitor - ESP32-WROOM-32E, Tasmota, Matter over Wi-Fi

₹14,935.00 (Inclusive of all taxes)
Out of Stock

The Claratech AQM9 is a comprehensive indoor air quality monitor featuring an ESP32-WROOM-32E MCU and high-precision sensors from Bosch, Sensirion, Plantower, and Winsen. It provides local, cloud-free monitoring of CO₂, TVOC, NOx, particulate matter (PM0.3–PM10), temperature, humidity, and barometric pressure, with native integration for Home Assistant via Matter over Wi-Fi.

Features

  • Multi-parameter monitoring of COâ‚‚, TVOC, NOx, PM0.3–PM10, temperature, humidity, and pressure.
  • Powered by ESP32-WROOM-32E with open-source Tasmota firmware for full local control.
  • Cloud-free operation with Matter over Wi-Fi support for seamless Home Assistant integration.
  • Integrated 128×64 OLED display, color LED indicators, and buzzer alarm for immediate feedback.
  • Compact, fanless, and noiseless enclosure designed for bedrooms, offices, and smart living spaces.

Out of stock

Description

The Claratech AQM9 integrates a suite of high-precision environmental sensors into a single, user-configurable unit. It utilizes proven sensing technologies: a Sensirion SCD4x or equivalent for NDIR COâ‚‚, a Bosch BME680 for VOC and barometric pressure, a Plantower laser scattering module for particulate matter, and dedicated sensors for temperature and humidity. This combination provides a detailed, real-time profile of indoor air quality.

Operating on the open-source Tasmota platform, the AQM9 ensures complete data privacy and local network control without mandatory cloud subscriptions or dependencies. Its ESP32-WROOM-32E microcontroller enables robust 2.4 GHz Wi-Fi connectivity and supports the Matter protocol, allowing for straightforward integration into smart home ecosystems like Home Assistant. The device’s fanless design eliminates moving parts and operational noise, making it suitable for continuous monitoring in quiet environments.

Key Features

  • Multi-Sensor Array: Monitors COâ‚‚ (400–5000 ppm), TVOC, NOx, PM0.3 to PM10, temperature (-40 to 85°C), humidity (0–100% RH), and barometric pressure (300–1100 hPa).
  • Open-Source & Local-First: Runs Tasmota firmware, granting full local data control and eliminating cloud dependency.
  • Smart Home Ready: Features Matter over Wi-Fi support for native integration with platforms like Home Assistant, Apple Home, and Google Home.
  • Comprehensive User Interface: Includes a 128x64 pixel OLED display for real-time data, multi-color LED status indicators, and an audible buzzer alarm.
  • Robust Connectivity: Built on the ESP32-WROOM-32E MCU with 2.4 GHz 802.11 b/g/n Wi-Fi for reliable network communication.
  • Optimized Industrial Design: Compact, fanless enclosure ensures silent operation and a sleek aesthetic for any indoor setting.
  • Simple Power & Compliance: Powered via 5V USB-C input and designed to meet FCC and CE regulatory standards.

Applications

  • Continuous indoor air quality assessment in smart homes, bedrooms, and home offices.
  • HVAC system performance monitoring and demand-controlled ventilation triggering based on COâ‚‚ and VOC levels.
  • Health and wellness monitoring in environments sensitive to particulate matter (PM2.5/PM10) and pollutants.
  • Integration into building automation systems for energy efficiency and occupant comfort analytics.
  • Educational and research projects for environmental data logging and IoT sensor network development.

Technical Specifications

Model NumberCAQM9 v1
Main Controller (MCU)ESP32-WROOM-32E
FirmwareTasmota v15.x
Connectivity2.4 GHz Wi-Fi (802.11 b/g/n), Matter over Wi-Fi
Power Input5V DC via USB-C (1A recommended)
Monitored ParametersCOâ‚‚, TVOC, NOx, PM0.3, PM0.5, PM1.0, PM2.5, PM10, Temperature, Humidity, Barometric Pressure
Temperature Range-40 to 85 °C
Humidity Range0 to 100% RH
Pressure Range300 to 1100 hPa
DisplayOLED, 128 x 64 pixels
IndicatorsMulti-color LED, Buzzer Alarm
Dimensions (L x W)83 mm x 55 mm
Weight81 g
ComplianceFCC, CE

Frequently Asked Questions

What microcontrollers or platforms is the AQM9 compatible with?

The AQM9 is a fully integrated, standalone device powered by its internal ESP32-WROOM-32E microcontroller. It connects to your network via Wi-Fi and is primarily designed for integration into smart home platforms like Home Assistant via its native Matter over Wi-Fi support or its built-in Tasmota web interface. It is not a typical "sensor module" for direct connection to an external Arduino or Raspberry Pi.

Does the AQM9 require a cloud service or subscription?

No. The AQM9 operates on a cloud-free, local-first principle. It runs open-source Tasmota firmware, allowing all data to be processed and controlled locally on your network. You can view data via its web interface or integrate it directly into local home automation systems like Home Assistant without any mandatory external cloud services or subscriptions.

What air quality parameters does the AQM9 measure and what are the sensor brands?

The AQM9 measures COâ‚‚ (likely via a Sensirion SCD4x NDIR sensor), Total Volatile Organic Compounds (TVOC) and Nitrogen Oxides (NOx) via a Bosch BME680, particulate matter (PM0.3 to PM10) via a Plantower laser sensor, and temperature, humidity, and barometric pressure. It utilizes high-precision components from established manufacturers like Bosch, Sensirion, Plantower, and Winsen to ensure accurate and reliable readings.

How do I power and set up the AQM9 monitor?

Power the device using the provided USB-C cable connected to a 5V/1A power adapter. On first boot, it will create a Wi-Fi access point. Connect to this AP from a smartphone or computer to configure your home Wi-Fi network credentials. Once connected, the device will join your local network and its web interface or Matter endpoint will be discoverable by your smart home controller.

Package Includes

  • 1 x Claratech AQM9 Air Quality Monitor
  • 1 x Mounting Holder/Bracket

Additional Information

Weight 0.081 kg
Dimensions 8.3 × 5.5 cm
