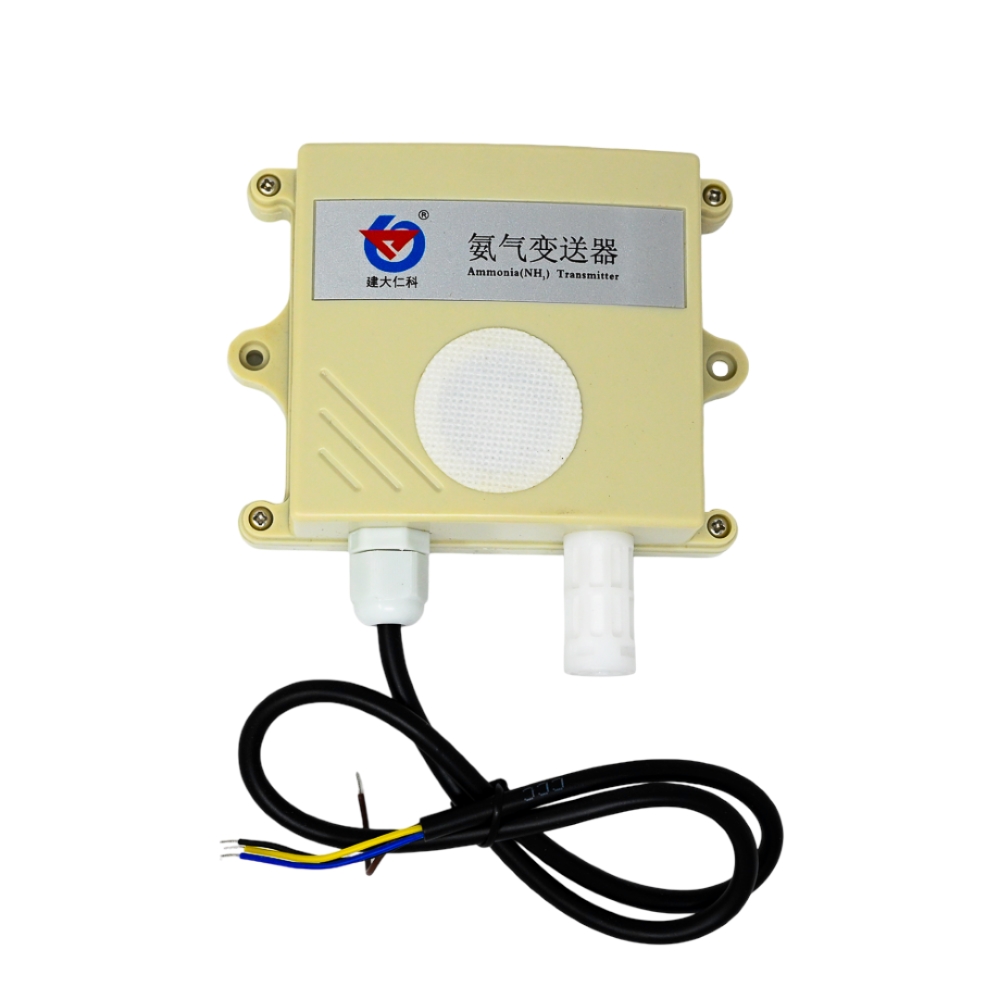

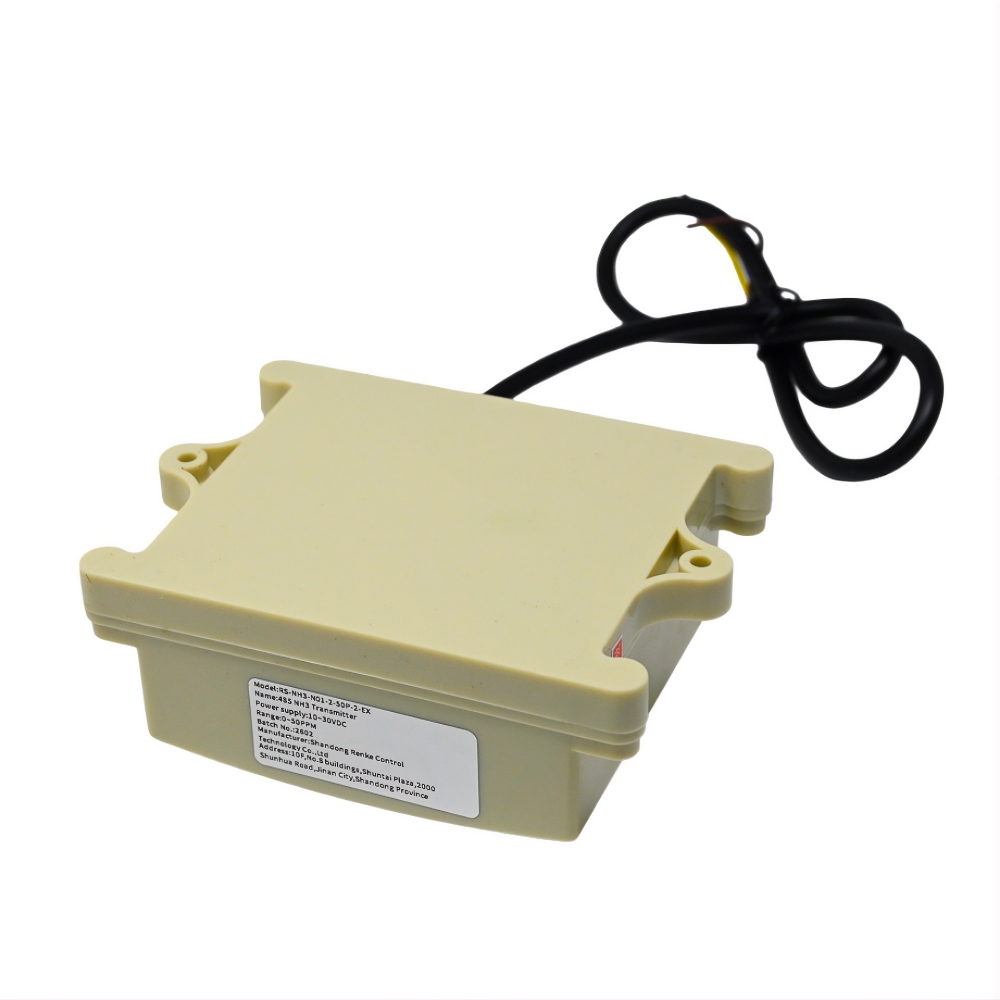

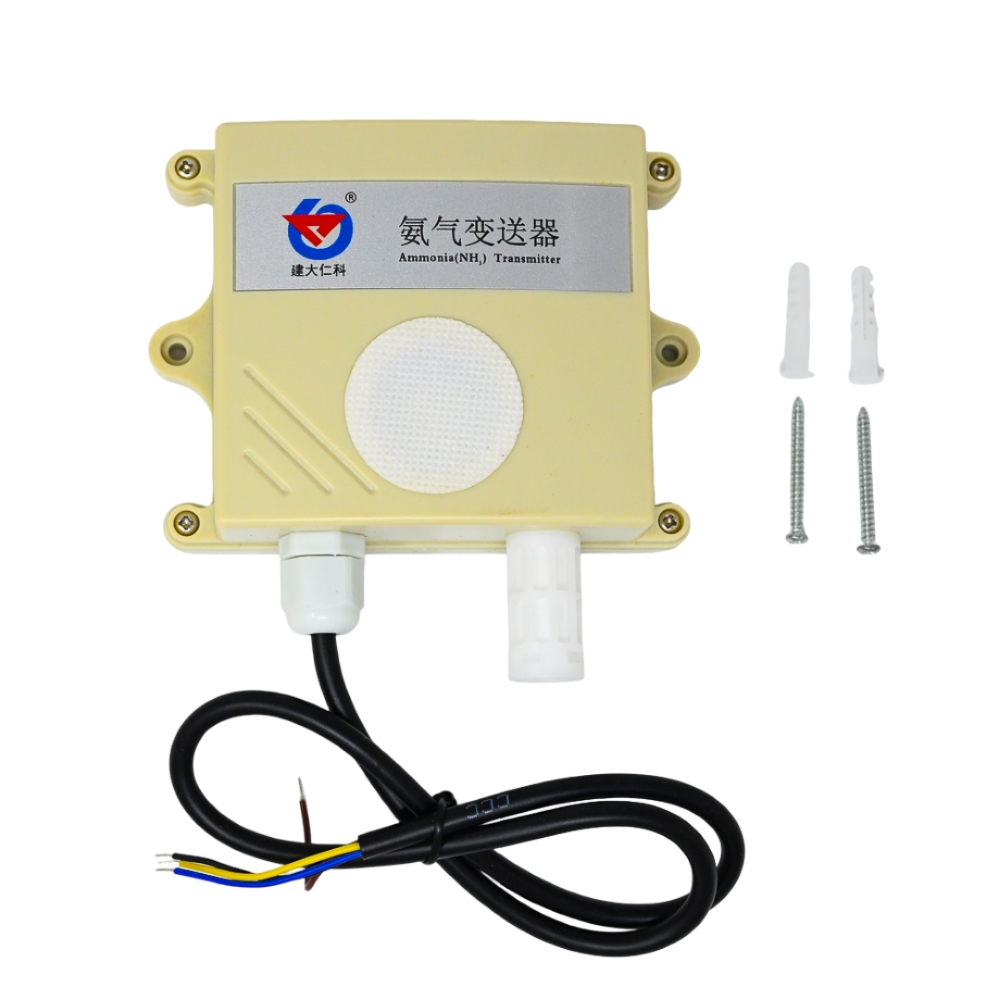

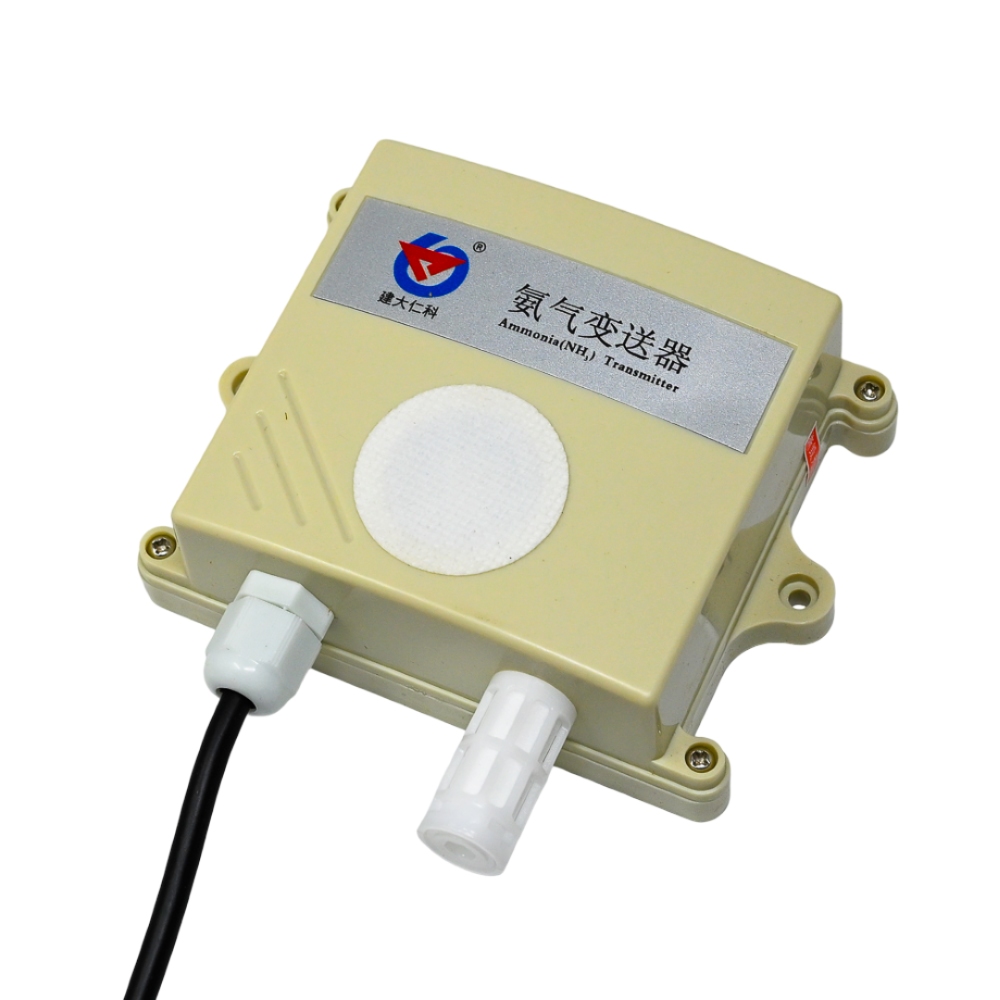

Renke RS-NH3-N01-2-50P Ammonia Sensor 0-50ppm - RS485 Modbus Output
The Renke RS-NH3-N01-2-50P is an industrial-grade ammonia gas transmitter with a 0-50 ppm measurement range. It features a wide 10-30V DC power input and outputs data via an RS485 interface using the standard Modbus-RTU protocol, making it compatible with PLCs, SCADA systems, and industrial data acquisition units.
Features
- High-precision electrochemical ammonia sensor with ±2% FS accuracy and ≤2% monthly stability.
- RS485 Modbus-RTU output with configurable address and baud rate, supporting communication up to 2000 meters.
- Wide-range 10-30V DC power supply for flexible integration into industrial control panels.
- Wall-mount IP-rated waterproof enclosure designed for harsh environmental conditions.
- Optional onboard OLED display for local, real-time concentration readout.
Out of stock
This ammonia transmitter utilizes an imported electrochemical sensor element, known for its rapid response and strong anti-interference characteristics. The sensor’s performance is enhanced through a proprietary multi-stage compensation algorithm and calibration with standard gases, ensuring long-term stability, high repeatability, and measurement precision. The device is engineered for durability in demanding settings.
The unit operates across a broad ambient temperature range and is housed in a protective wall-mount enclosure, facilitating easy installation in industrial environments. Its standard Modbus-RTU protocol allows for seamless integration into existing monitoring networks for centralized data logging and control.
Additional Information
| Weight | 0.17 kg |
|---|---|
| Dimensions | 16 × 15 × 6 cm |
