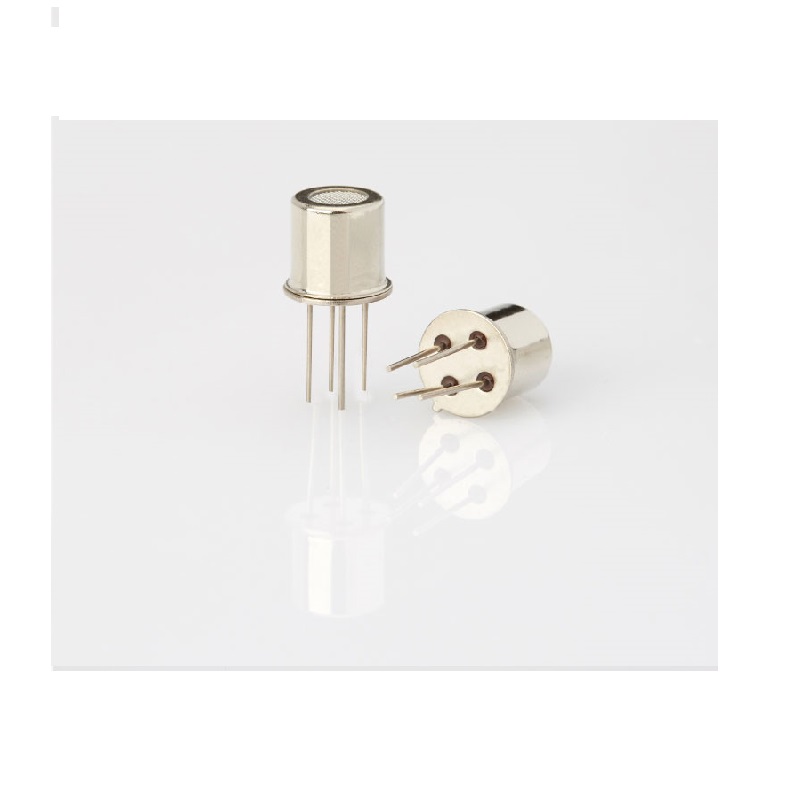

Winsen MG812 Mini Solid Electrolyte CO2 Gas Sensor - Metal Shell
The Winsen MG812 is a solid electrolyte electrochemical CO2 gas sensor designed for direct carbon dioxide concentration measurement. It provides a millivolt-level EMF output signal proportional to CO2 levels, suitable for integration into air quality monitors, HVAC systems, and industrial safety equipment.
Features
- Solid Electrolyte Electrochemical Sensing Principle for CO2
- Detection Range from 350 to 10,000 ppm CO2
- Output Signal: ≥25 mV per 1000 ppm CO2 (EMF)
- Low Power Heater: 5.0V ±0.1V, ~90mA (~450mW)
- Compact Metal Shell Construction for Durability
Out of stock
The Winsen MG812 operates on a solid electrolyte cell principle. When exposed to carbon dioxide, an electrochemical reaction generates an electromotive force (EMF) between its sensitive electrode and reference electrode. This output voltage is directly proportional to the CO2 concentration, providing a stable and selective measurement signal.
Engineered for reliable performance, the sensor features an integrated heater for optimal operating conditions, ensuring consistent sensitivity and minimal drift from ambient temperature and humidity variations. Its metal shell provides mechanical robustness for integration into fixed installations and portable monitoring devices.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 3 × 1 cm |
