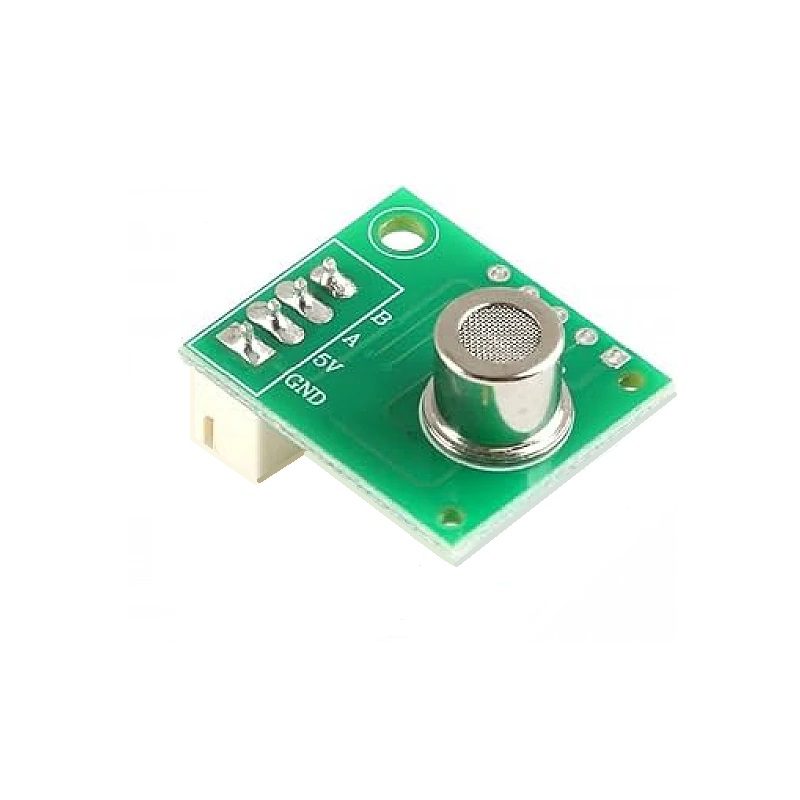

Saiya Sensor Sensor SYP16 Air Quality Module UART SMD, 20x24mm
The Saiya Sensor Sensor SYP16 is a compact UART SMD air quality module designed for detecting a wide range of volatile organic compounds (VOCs) including formaldehyde, benzene, and CO. Operating at 5V DC, it provides a simple serial interface for integration into air purifiers, smart home devices, and industrial HVAC control systems.
Features
- High-sensitivity detection of VOCs: formaldehyde, benzene, CO, hydrogen, alcohol, ammonia, and smoke.
- Factory-calibrated for accurate and stable long-term performance with minimal drift.
- Low-power operation at 5V DC with a typical 60 mA working current for energy-efficient designs.
- Integrated self-diagnosis function for real-time sensor health monitoring and fault detection.
- Compact SMD footprint (20 x 24 mm) with UART interface for easy PCB integration and data query.
Out of stock
The SYP16 Air Quality Module utilizes a high-sensitivity metal oxide semiconductor (MOS) sensor element to detect and quantify concentrations of various volatile organic compounds and harmful gases. Its factory calibration ensures reliable baseline performance, reducing the need for field recalibration in many applications.
Designed for continuous monitoring, the module features robust signal conditioning and outputs gas concentration data via a simple UART protocol, supporting both active reporting and on-demand query modes. Its construction is compliant with ROHS standards, making it suitable for integration into consumer electronics and commercial air handling equipment.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 9 × 2 cm |
