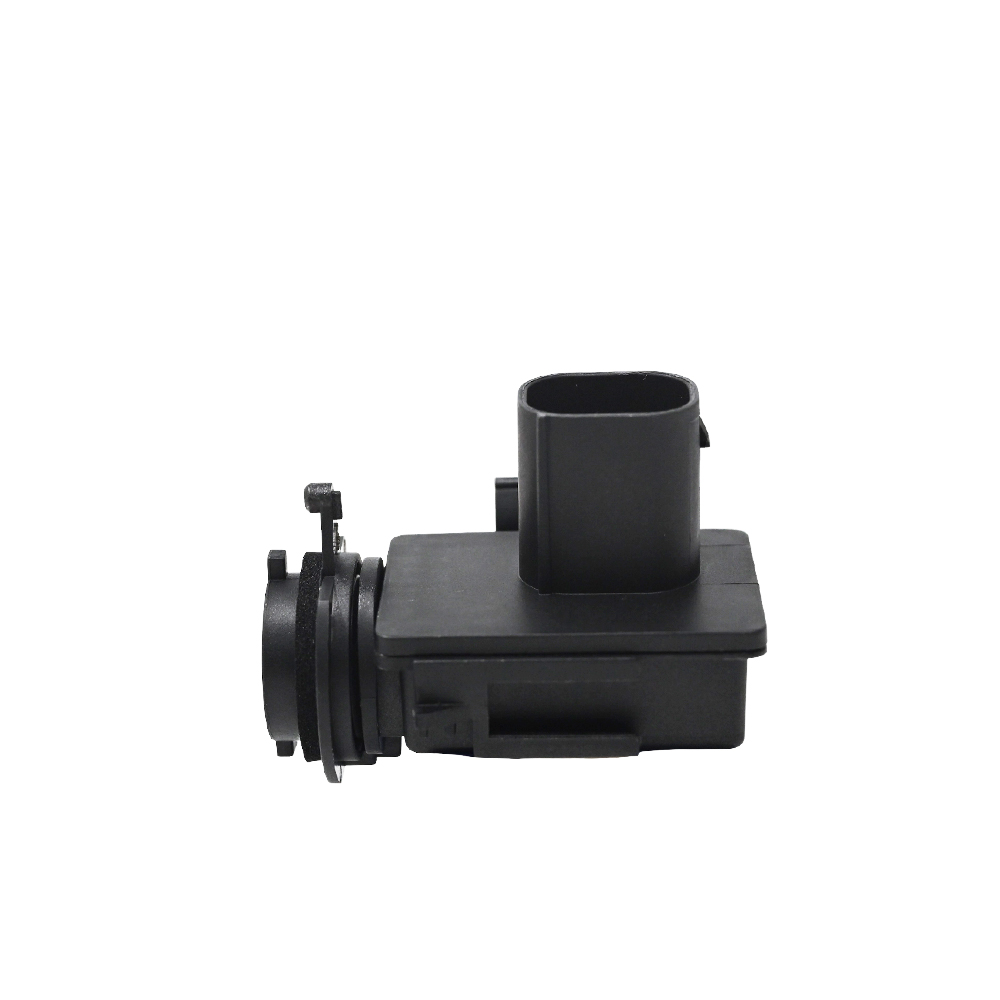

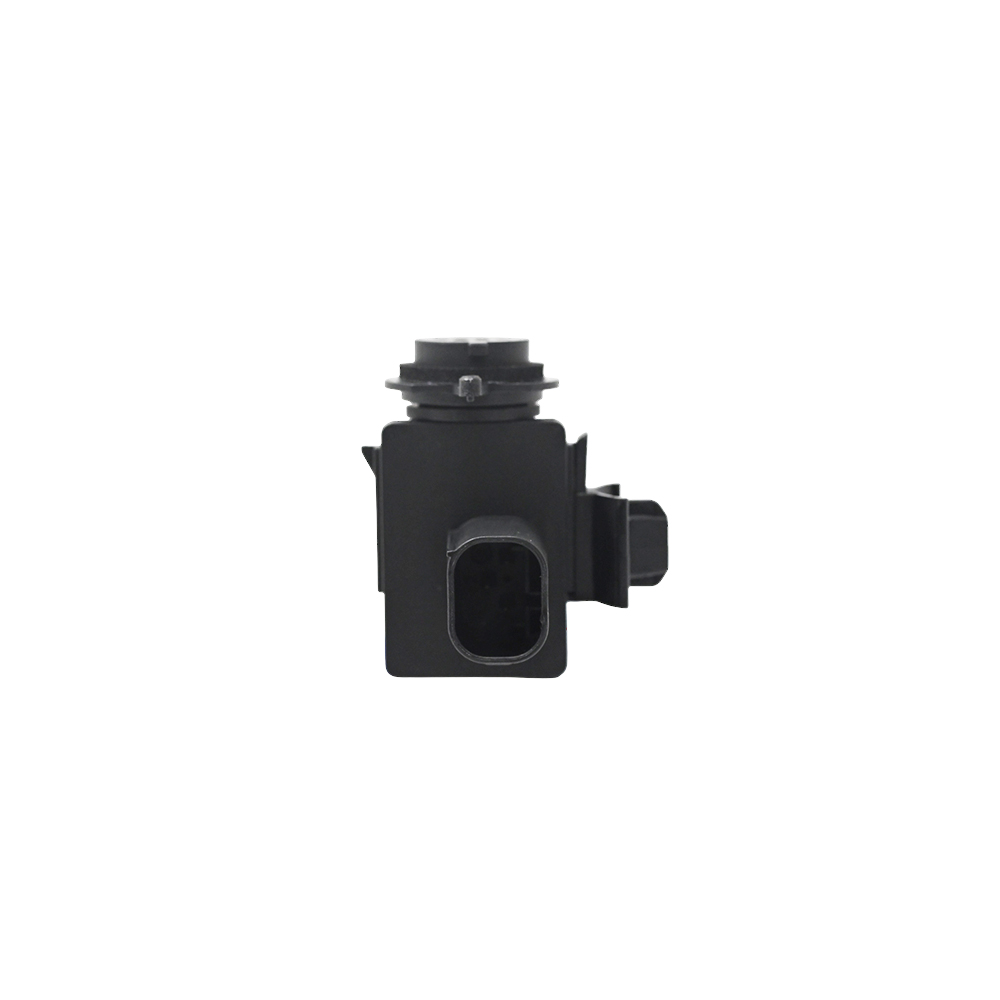

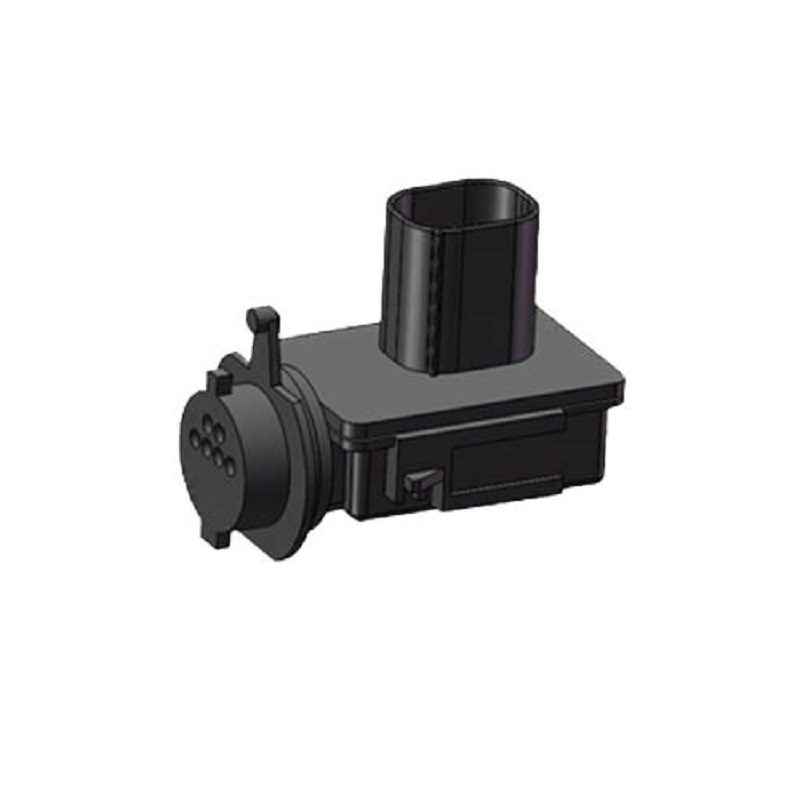

Winsen ZM102 Air Quality Sensor Module - LIN/PWM Output, IP6K6K
The Winsen ZM102 is a digital automotive-grade air quality sensor module designed for vehicle HVAC and air purification systems. It provides precise detection of CO, HC, NOx, and NH3 via a MOS sensing element and outputs data via LIN or PWM interface for integration with automotive ECUs and climate control units.
Features
- MOS semiconductor sensor detects CO/HC, NOx, and NH3 pollutants.
- Digital LIN/PWM output interface for direct automotive ECU integration.
- Wide operating voltage range from 9V to 16V DC for 12V vehicle systems.
- IP6K6K dust and water protection rating for harsh automotive environments.
- Ultra-low power consumption below 0.6W with quiescent current under 10µA.
Out of stock
The Winsen ZM102 Air Quality Sensor is a compact, MEMS-based digital module engineered for real-time monitoring of cabin air quality in automotive applications. It utilizes a metal-oxide semiconductor (MOS) sensing element paired with an onboard microprocessor and intelligent algorithm to deliver stable, reliable readings of carbon monoxide (CO), hydrocarbons (HC), nitrogen oxides (NOx), and ammonia (NH3).
Designed for direct integration into vehicle networks, the module operates from a standard 9-16V automotive supply and communicates via a LIN bus or customizable PWM signal, enabling automatic control of air recirculation flaps and air purifier systems. Its robust construction and IP6K6K rating ensure reliable performance across the full automotive temperature range from -40°C to 85°C.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 7 × 5 × 4 cm |
