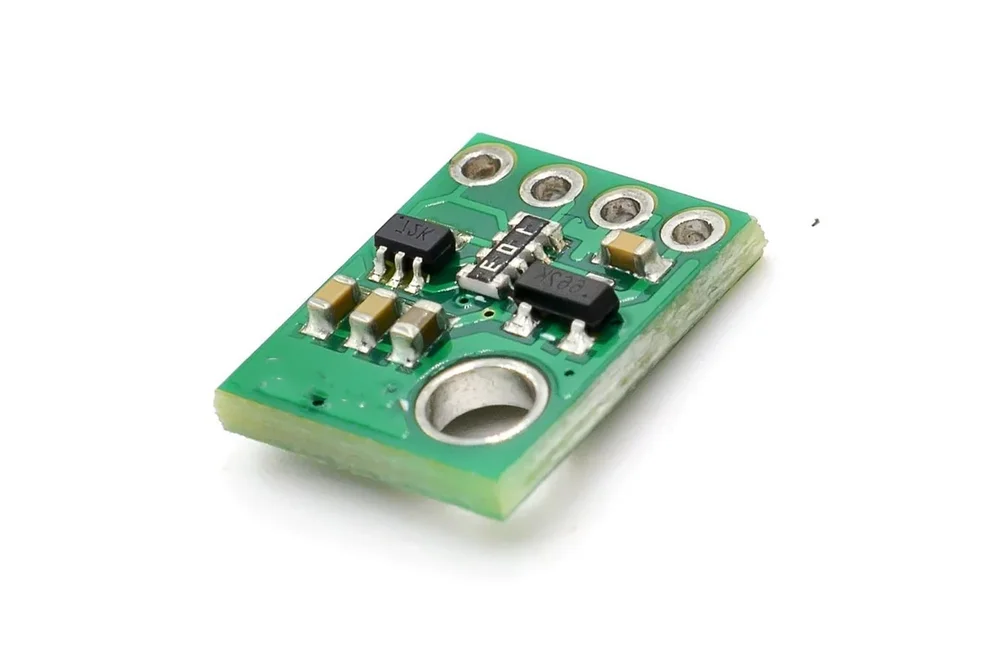

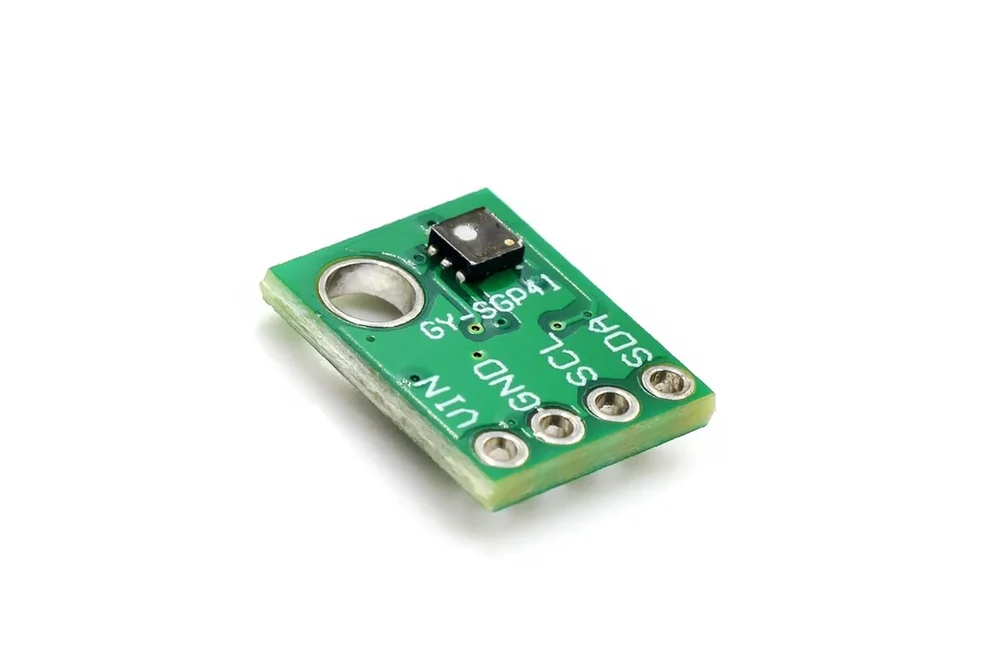

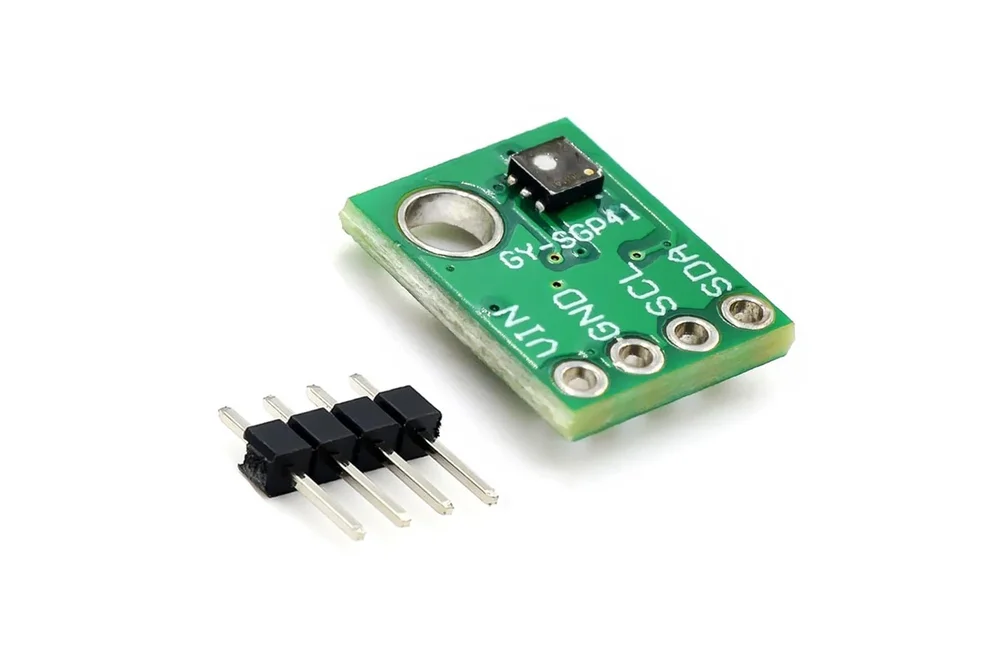

Generic GY-SGP41 Air Quality Sensor Module - I2C Interface
The GY-SGP41 Air Quality Sensor Module integrates the Sensirion SGP41 digital gas sensor, providing VOC and NOx Index outputs via I2C communication for seamless integration with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V microcontroller platforms.
Features
- Features the Sensirion SGP41 digital gas sensor for VOC and NOx detection.
- Provides VOC Index and NOx Index outputs via Sensirion’s Gas Index Algorithm.
- Standard I2C digital interface for easy microcontroller integration.
- Wide 3.3V to 5V DC operating voltage range.
- Compact PCB footprint (14 x 11 mm) suitable for space-constrained designs.
Out of stock
The GY-SGP41 module is a digital air quality sensor built around the Sensirion SGP41 metal-oxide (MOx) sensor element. It outputs processed VOC (Volatile Organic Compounds) and NOx (Nitrogen Oxides) Index values, which are calculated using Sensirion’s on-chip Gas Index Algorithm, providing a robust and intelligent assessment of indoor air quality without requiring complex calibration.
Designed for embedded systems, the module communicates via a standard I2C interface and operates from a 3.3V to 5V DC supply, making it compatible with a wide range of development boards and microcontrollers. Its low power consumption and extended operating temperature range (-40°C to +85°C) enable deployment in demanding IoT, smart home, and industrial monitoring applications.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 0.6 × 0.5 × 0.4 cm |
