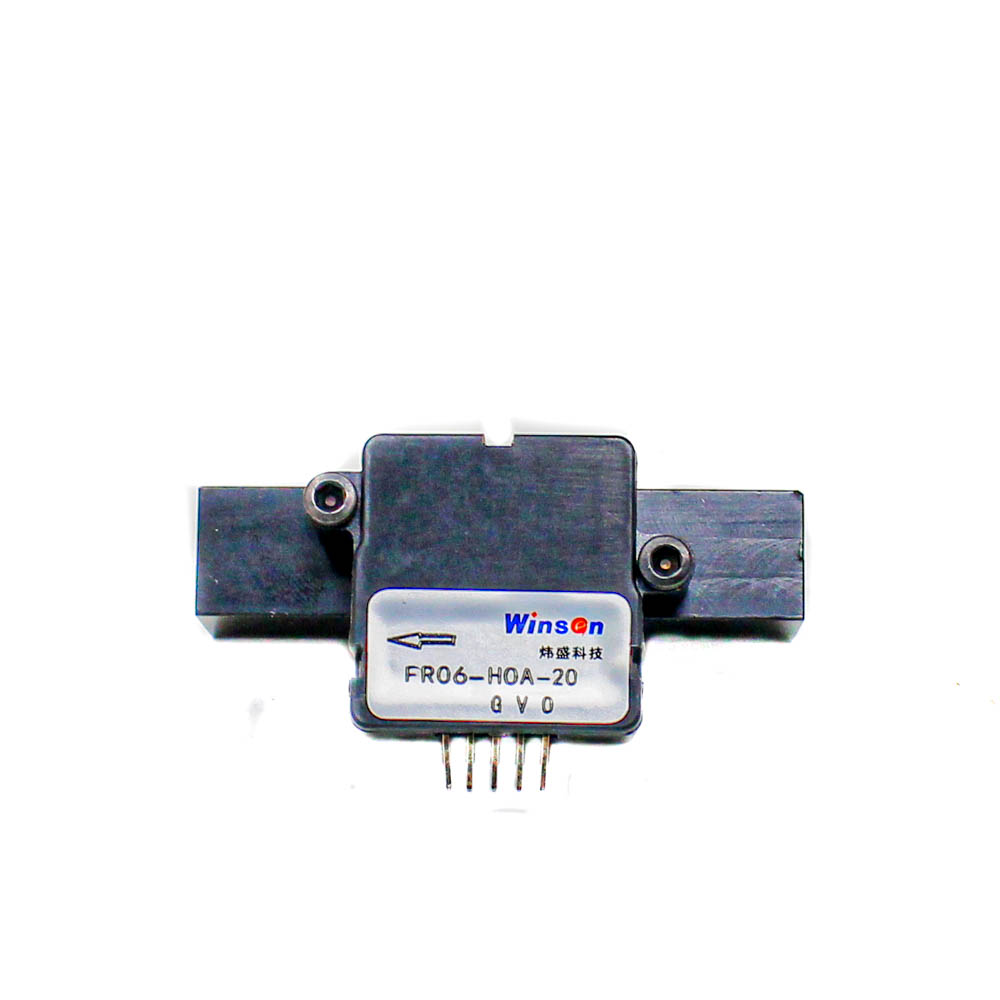

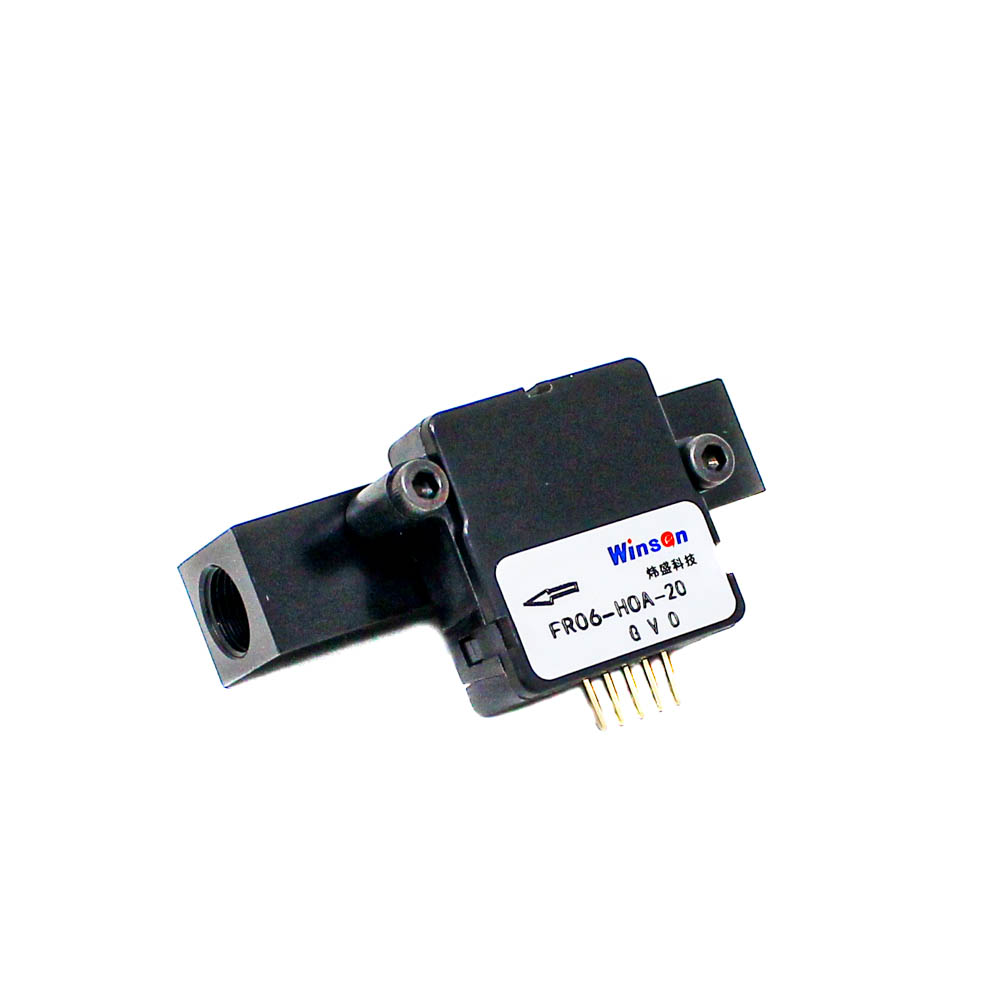

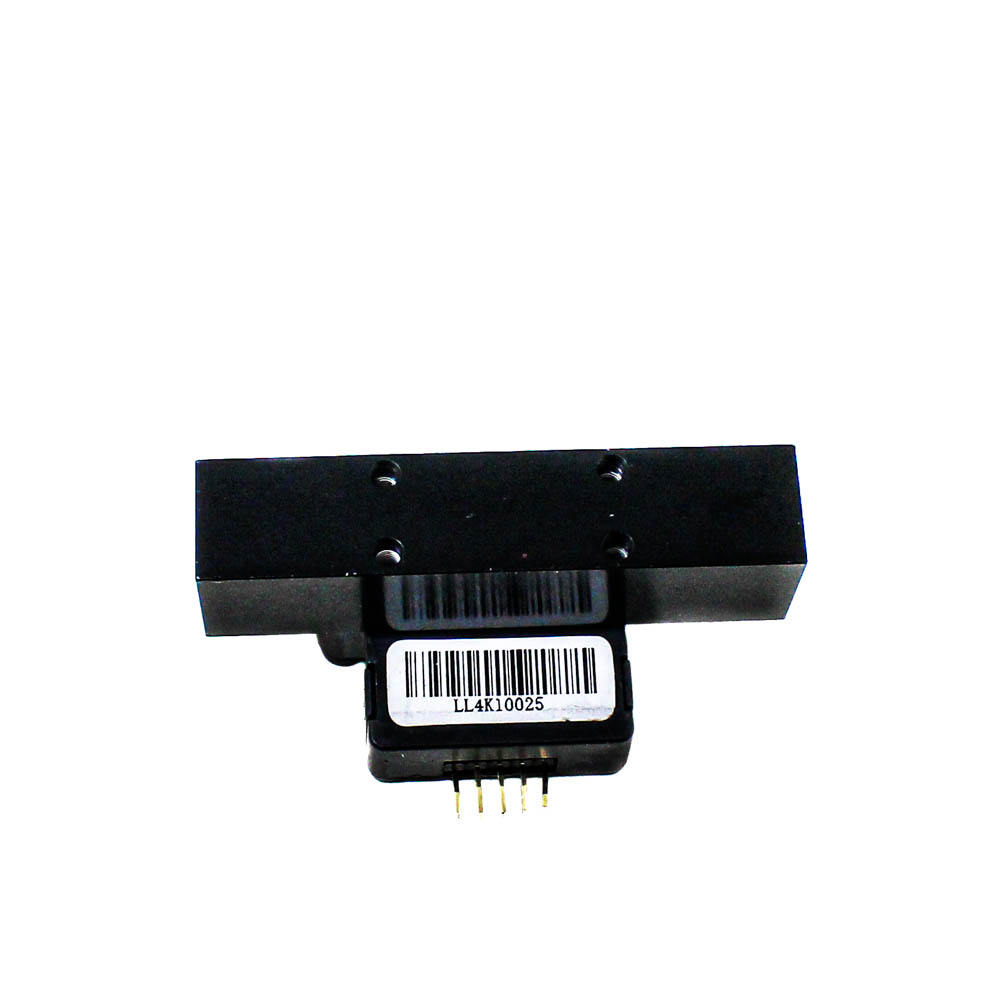

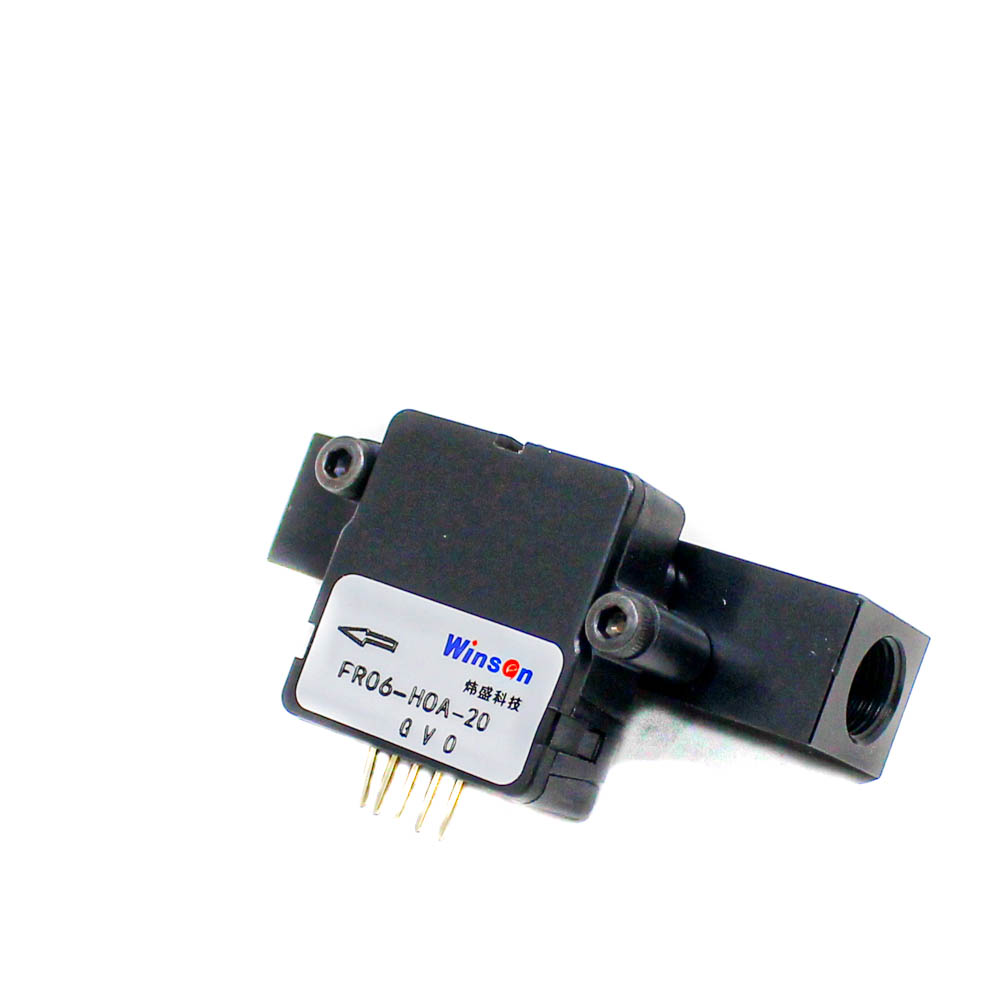

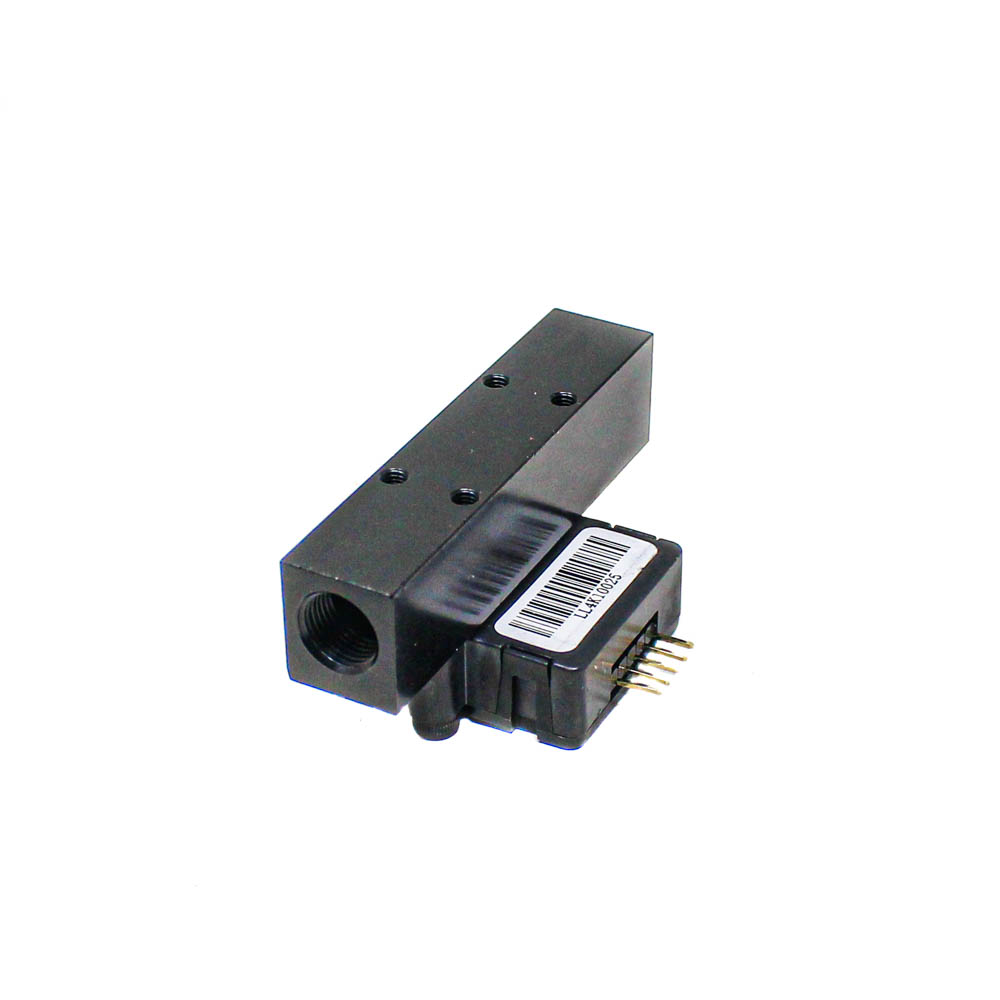

Winsen FR06 Micro Flow Sensor - DN6 Port, 0.5-4.5V Output, 10/20 SLM Full Scale
The Winsen FR06 is a MEMS thermal mass flow sensor designed for precise gas flow measurement in pipelines. It provides a linear 0.5-4.5V analog output signal, is compatible with 5-14V DC power supplies, and is suitable for integration into industrial control systems, HVAC monitoring, and laboratory instrumentation.
Features
- MEMS Thermal Mass Flow Sensing Principle for direct gas mass measurement
- Dual Full-Scale Ranges: 10 SLM or 20 SLM (Standard Liters per Minute)
- Low Pressure Loss Design with DN6 (6mm) drift diameter port
- Linear 0.5V to 4.5V Analog Voltage Output with 200Ω impedance
- Wide Operating Voltage: 5V to 14V DC with ≤10mA current consumption
Out of stock
The Winsen FR06 Micro Flow Sensor utilizes a MEMS (Micro-Electro-Mechanical Systems) thermal sensing principle to monitor the mass flow rate of clean, dry, non-corrosive gases. By measuring the heat transfer from a heated element to the gas flow, it provides a highly repeatable analog voltage signal proportional to the flow rate, making it ideal for applications requiring precise gas monitoring.
Engineered for low pressure drop and reliable performance, the sensor operates within a 0°C to 50°C temperature range and offers an accuracy of ±(2% reading + 0.5% of full scale). For optimal accuracy, installation requires a straight pipe section of at least 5x the nominal diameter upstream and 3x downstream. The sensor is factory-calibrated with air under standard conditions.
Additional Information
| Weight | 0.048 kg |
|---|---|
| Dimensions | 9 × 6 × 3 cm |
