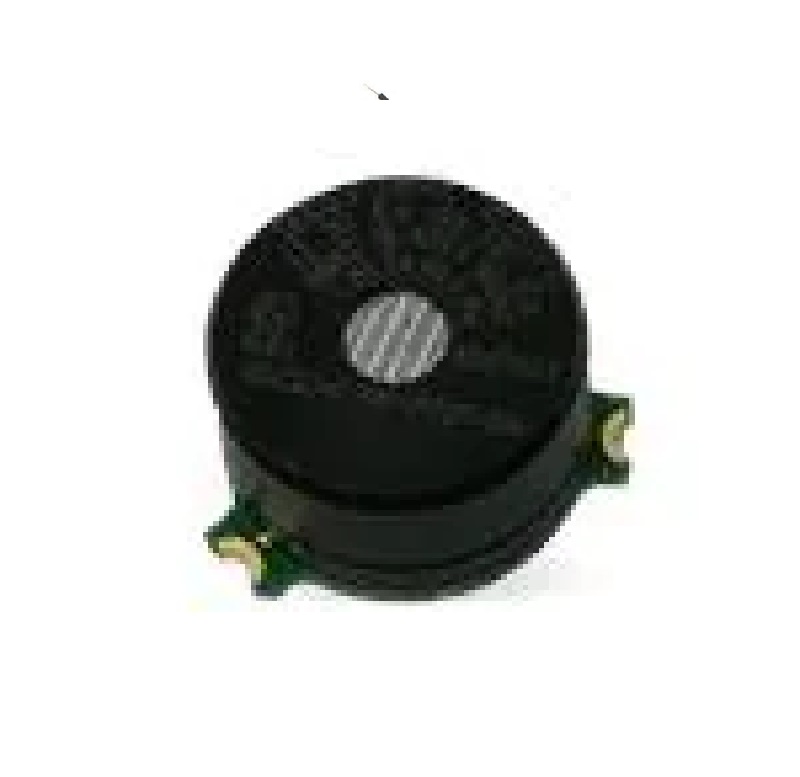

Winsen CMV-2021D MEMS Catalytic Hydrogen Sensor - 3.0V DC
The Winsen CMV-2021D is a MEMS-based catalytic combustion hydrogen sensor designed for precise H2 detection in industrial and energy applications. It operates on a stable 3.0V DC supply and provides a linear bridge output signal compatible with standard data acquisition systems and microcontrollers.
Features
- MEMS Catalytic Combustion Sensing Principle for H2 Detection
- Low Operating Voltage: 3.0V ±0.1V DC
- Fast Response Time: ≤2 seconds
- Wide Operating Temperature Range: -40°C to +85°C
- Linear Bridge Output for Easy Signal Conditioning
Out of stock
The CMV-2021D sensor utilizes a MEMS-fabricated catalytic combustion element paired with a temperature-compensating reference element to form a Wheatstone bridge. When hydrogen gas contacts the active element, catalytic combustion causes a temperature and resistance change, unbalancing the bridge and producing a voltage output proportional to the H2 concentration.
Engineered for harsh environments, the sensor operates reliably from -40°C to +85°C, offering excellent stability, repeatability, and selectivity for hydrogen. Its low power consumption and robust MEMS structure make it suitable for integration into portable detectors, hydrogen vehicle safety systems, and industrial monitoring equipment.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 7 × 7 × 1 cm |
