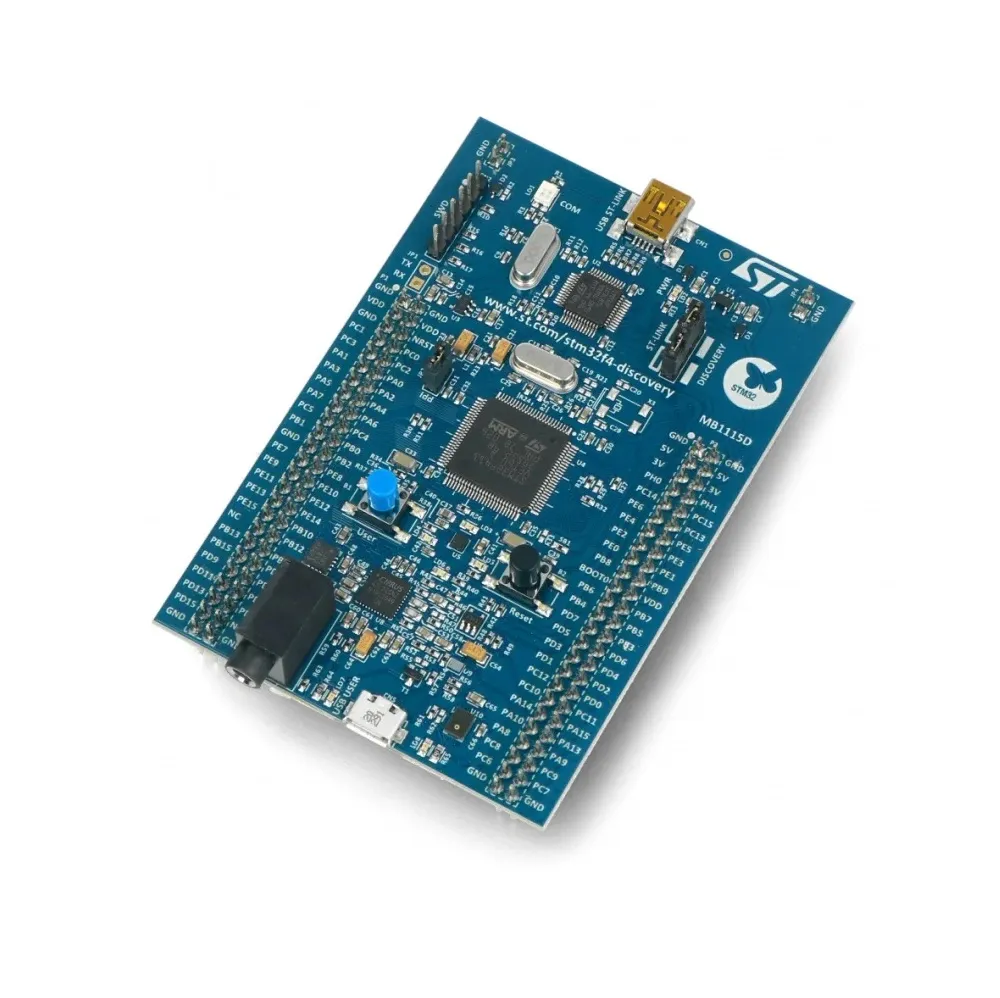

STM32F411VE Discovery Dev Board w/ ST-LINK/V2

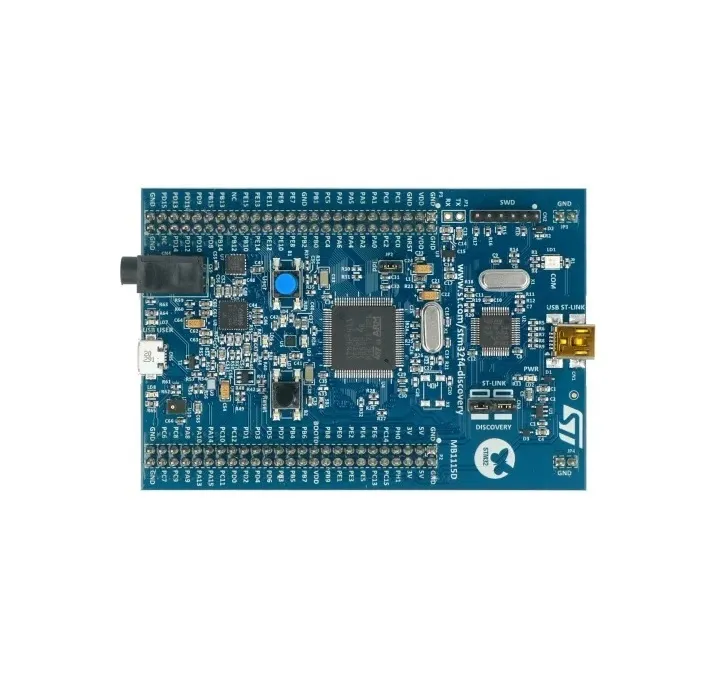

STM32F411VE Discovery Dev Board w/ ST-LINK/V2 - Image 2

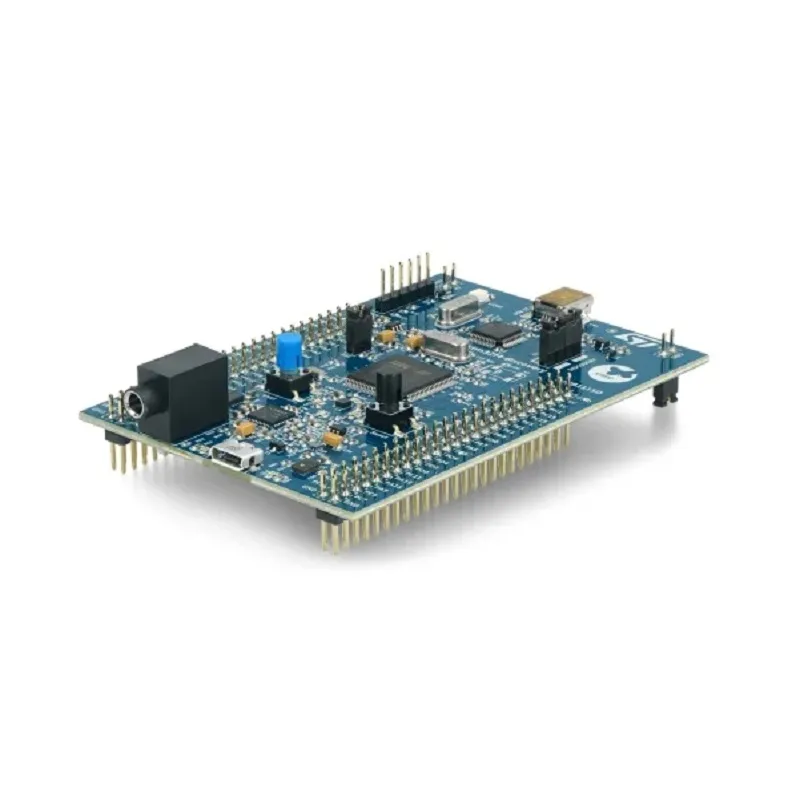

STM32F411VE Discovery Dev Board w/ ST-LINK/V2 - Image 3

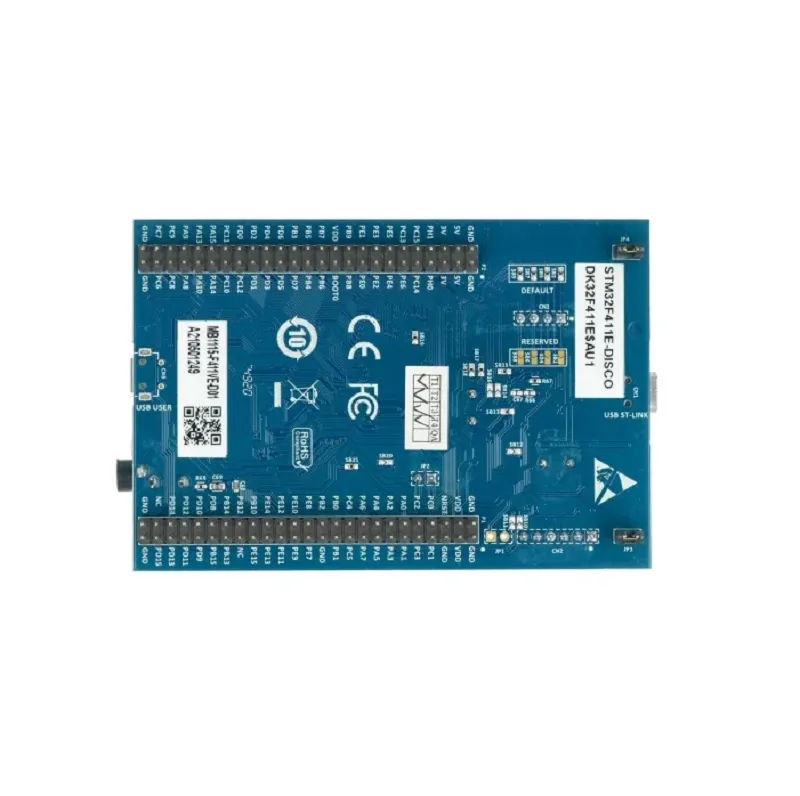

STM32F411VE Discovery Dev Board w/ ST-LINK/V2 - Image 4
SKU: SBCD-0424
📋 GST Invoice Available

STM32F411VE Discovery Dev Board w/ ST-LINK/V2

₹2,589.00 (Inclusive of all taxes)
Out of Stock

The STMicroelectronics STM32F411VE Discovery board offers a robust platform for high-performance embedded development, featuring the STM32F411VET6 Cortex-M4F microcontroller. With an integrated ST-LINK/V2 debugger and essential MEMS sensors, it accelerates prototyping for a wide range of applications.

Features

  • Features STM32F411VET6 MCU with a Cortex-M4F core clocked at 100 MHz.
  • Includes 512 KB Flash memory and 128 KB of RAM for ample program and data storage.
  • Equipped with an on-board ST-LINK/V2 debugger for seamless programming and debugging.
  • Integrates MEMS accelerometer, gyroscope, microphone, and a DAC for advanced sensing and audio.
  • Provides convenient Micro-AB USB for power and communication, alongside user and reset buttons.

Out of stock

Description

This development module enables rapid prototyping and project implementation utilizing the powerful 32-bit STM32F411VET6 microcontroller from STMicroelectronics. Leveraging the ARM Cortex-M4F core with a hardware floating-point unit, developers can explore new computational capabilities for demanding applications. Comprehensive software libraries and numerous examples, readily available from ST’s official website, simplify the development process.

Beyond its core processing capabilities, the Discovery board integrates a suite of peripherals crucial for embedded system design. It features an accelerometer and gyroscope for motion sensing, along with audio tools including a microphone and a DAC converter, making it suitable for interactive and data-logging projects. The board’s compact design and low power consumption further enhance its versatility for various embedded applications.

Key Features

  • Integrated STM32F411VET6 microcontroller (Cortex-M4F core, 100 MHz).
  • 512 KB Flash memory and 128 KB SRAM.
  • On-board ST-LINK/V2 debugger/programmer with selection mode switch.
  • Embedded LSM303DLHC 3-axis accelerometer and 3-axis gyroscope L3GD20.
  • Microphone and DAC converter for audio input/output capabilities.
  • User LED (x8), user button, and reset button for interactive control.
  • Micro-AB USB connector for power and virtual COM port.
  • Goldpin leads providing access to MCU I/O ports.

Applications

  • Sensor fusion and motion tracking systems.
  • Audio processing and voice interface development.
  • Industrial control and automation.
  • Low-power embedded systems.
  • Rapid prototyping for IoT devices.
  • Educational and hobbyist projects.

Technical Specifications

Item TypeDevelopment Board
Based OnSTM32 Based
MicrocontrollerSTM32F411VET6
CoreCortex M4F
Clock Frequency100 MHz
Flash Memory512 KB
RAM128 KB
PackageLQFP100
Power Supply Voltage5V / 3.3V via USB or external source
Accelerometer TypeLSM303DLHC (3-axis)
Gyroscope TypeL3GD20 (3-axis)

Frequently Asked Questions

What core architecture does the STM32F411VE Discovery board feature?

The STM32F411VE Discovery board is powered by an ARM Cortex-M4F core, operating at 100 MHz. This architecture includes a hardware floating-point unit (FPU), making it well-suited for digital signal processing, advanced control algorithms, and applications requiring complex mathematical computations with efficiency.

Does this board include an on-board debugger?

Yes, the STM32F411VE Discovery board integrates an ST-LINK/V2 debugger/programmer. This allows for direct flashing, debugging, and tracing of your applications without needing an external debugger, significantly streamlining the development workflow. It supports both SWD and JTAG interfaces.

What type of sensors are integrated into the STM32F411VE Discovery board?

The board features an LSM303DLHC 3-axis accelerometer and a L3GD20 3-axis gyroscope. These MEMS sensors provide comprehensive motion sensing capabilities, enabling applications like gesture recognition, orientation tracking, and vibration analysis directly on the development platform for various embedded projects.

What development environments and toolchains are compatible with the STM32F411VE?

The STM32F411VE is widely supported by various development environments including STMicroelectronics' STM32CubeIDE, Keil MDK-ARM, IAR Embedded Workbench, and GCC-based toolchains like those found in PlatformIO or VS Code with relevant extensions. Extensive HAL/LL libraries and examples facilitate project setup.

Package Includes

  • 1 x STMicroelectronics STM32F411VE Discovery Development Board

Additional Information

Weight 0.072 kg
Dimensions 12 × 10 × 4 cm
