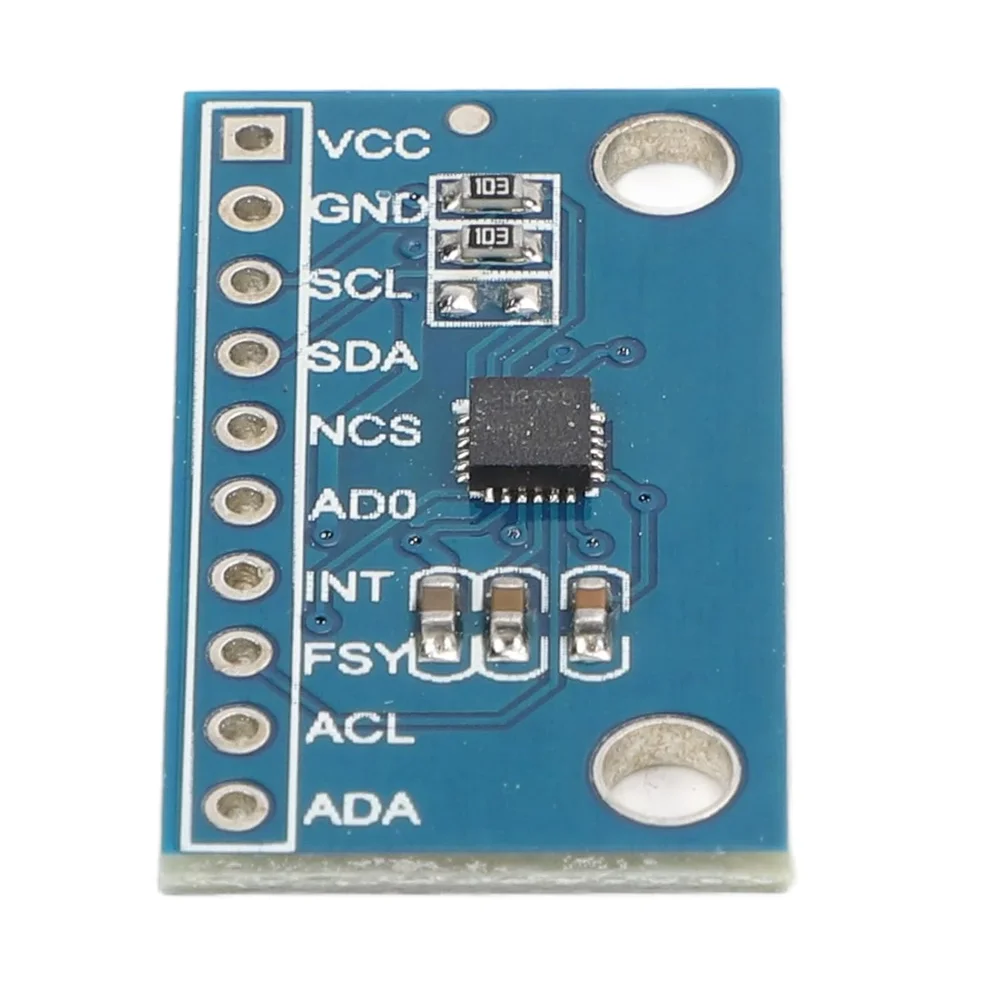

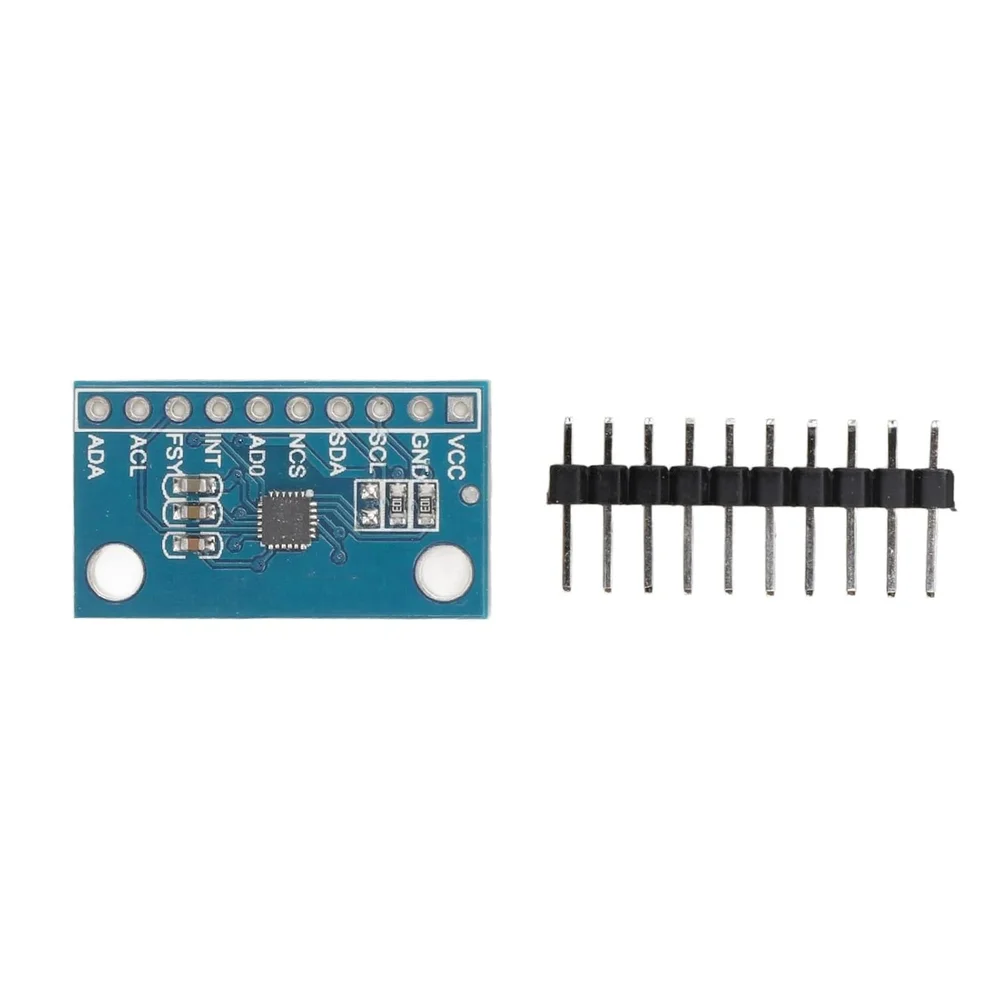

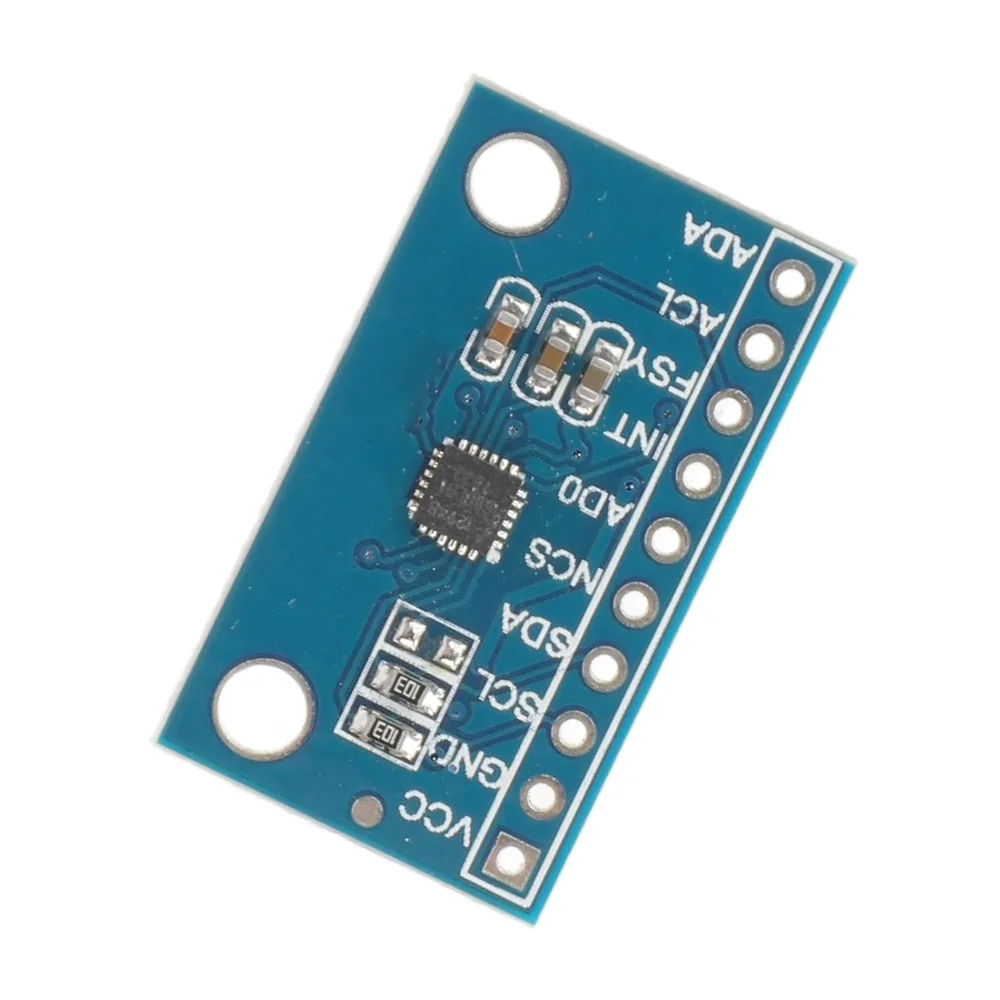

TDK InvenSense ICM-20948 Motion Tracking Sensor Module - 9-Axis IMU w/ DMP, I2C/SPI

The ICM-20948 module operates strictly on a 3.3V logic and supply voltage. The I2C and SPI communication lines are not 5V tolerant. For interfacing with 5V microcontrollers like some Arduino boards, you must use a logic level converter or a voltage divider on the SDA/SCL or SPI lines to prevent damage to the sensor IC.

The choice depends on your system's speed requirements and available pins. Use I2C (up to 400kHz) for simpler wiring with fewer connections (SDA, SCL) when moderate data rates suffice. Opt for SPI (up to 7MHz) when you need the highest possible data throughput for high-frequency motion sampling or low-latency control applications, as it supports faster burst reads.

The onboard DMP performs real-time sensor fusion algorithms, combining raw data from the gyroscope, accelerometer, and magnetometer. It outputs processed orientation data (like quaternions or Euler angles) and can handle gesture recognition. This offloads complex mathematical computations from your main microcontroller, saving processing power and simplifying application code.

Yes, for accurate heading (yaw) estimation, the magnetometer requires calibration to compensate for hard-iron and soft-iron distortions in its local environment. This process involves rotating the module through multiple orientations to map the magnetic field. Many libraries (e.g., for Arduino) provide calibration routines. The built-in temperature sensor aids in thermal drift compensation.

Its high precision and integrated DMP make it ideal for drones and UAVs for flight stabilization, robotics for balance and navigation, VR/AR controllers for motion tracking, wearable devices for activity monitoring, and industrial systems for vibration analysis and equipment orientation sensing. The programmable ranges allow optimization for both subtle human motions and high-dynamic robotic movements.
