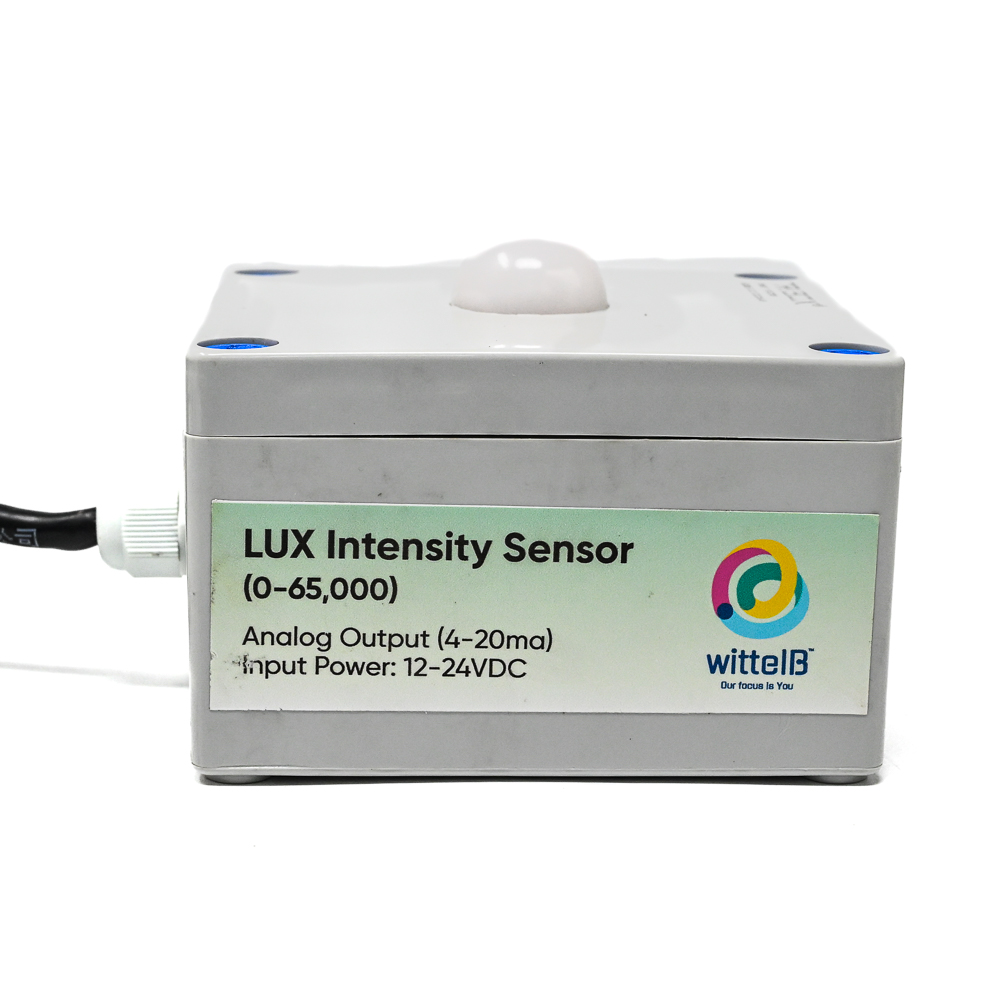

WIN-SN-LUX-AO(65k) Lux Sensor - 0-65k Lux Range, 4-20mA Analog Output
The WIN-SN-LUX-AO(65k) is a high-precision ambient light sensor delivering a 4-20mA analog output signal proportional to light intensity from 0 to 65,000 lux. Designed for direct integration with industrial PLCs, SCADA systems, and building automation controllers requiring a robust, linear 4-20mA interface.
Features
- Wide-range lux measurement from 0 to 65,000 lux with 0.054 lux resolution.
- Standard 4-20mA analog current loop output for industrial control compatibility.
- Robust operational range from -10°C to 60°C and up to 80% RH.
- Powered by a wide 12-24V DC supply, drawing up to 1A.

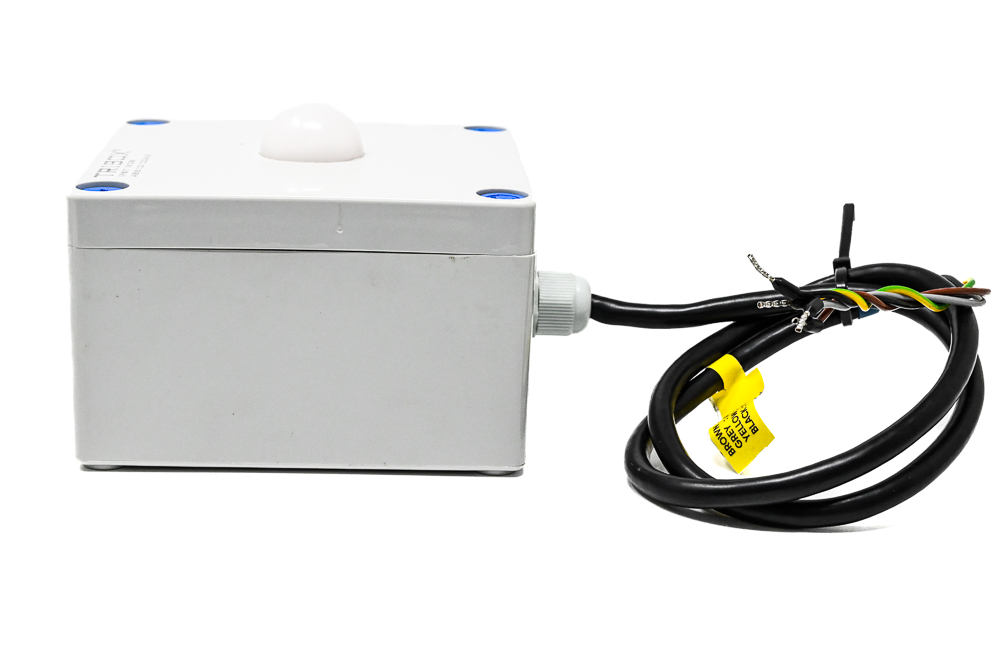

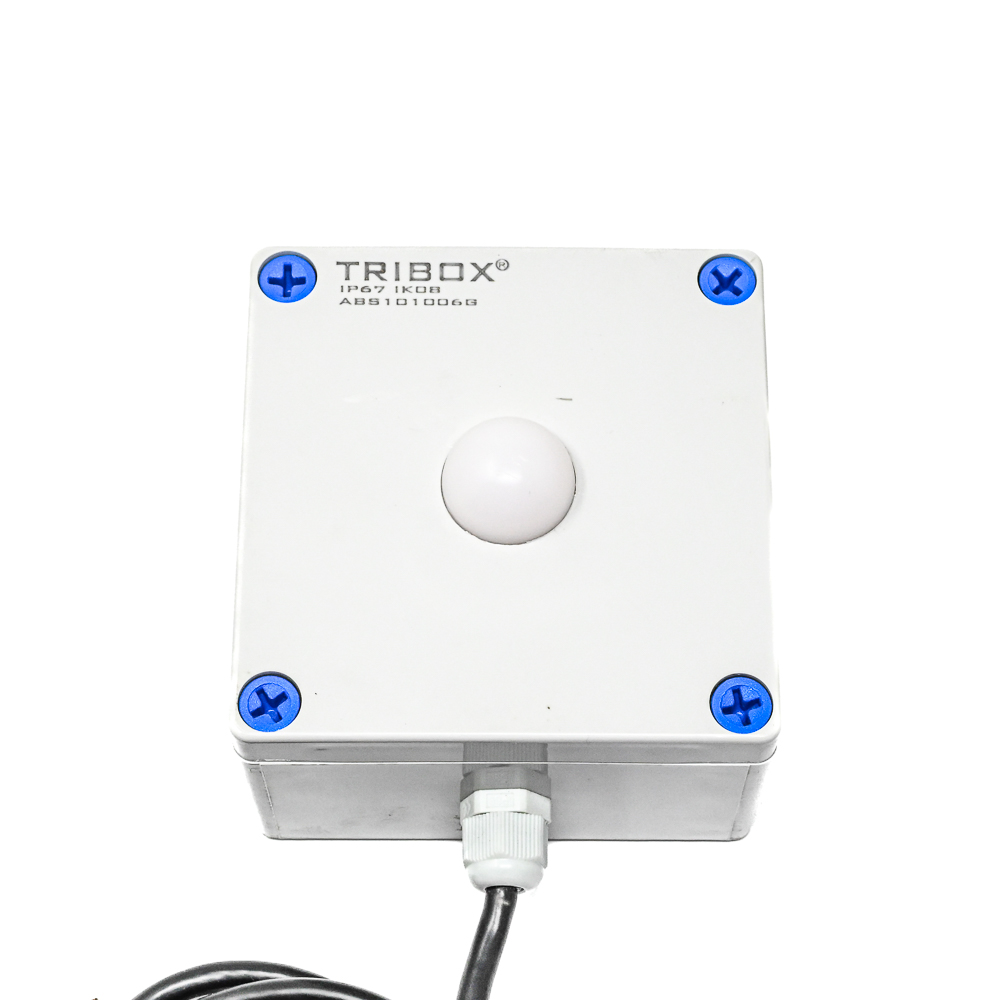

- Durable housing (100 x 100 x 50 mm) for reliable indoor/outdoor deployment.
Out of stock
The WIN-SN-LUX-AO(65k) ambient light sensor utilizes a high-sensitivity photodiode and precision signal conditioning circuitry to convert incident light intensity into a linear 4-20mA analog current signal. This output is industry-standard, providing inherent noise immunity and compatibility with a vast array of data acquisition systems, programmable logic controllers (PLCs), and building management systems without requiring additional signal converters.
Engineered for long-term stability in demanding environments, the sensor operates reliably across a temperature span of -10°C to 60°C and humidity up to 80% RH. Its factory calibration ensures accurate and consistent performance over time, making it suitable for critical applications in HVAC lighting control, greenhouse management, and outdoor daylight harvesting systems where reliable ambient light data is essential for automation and energy savings.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
