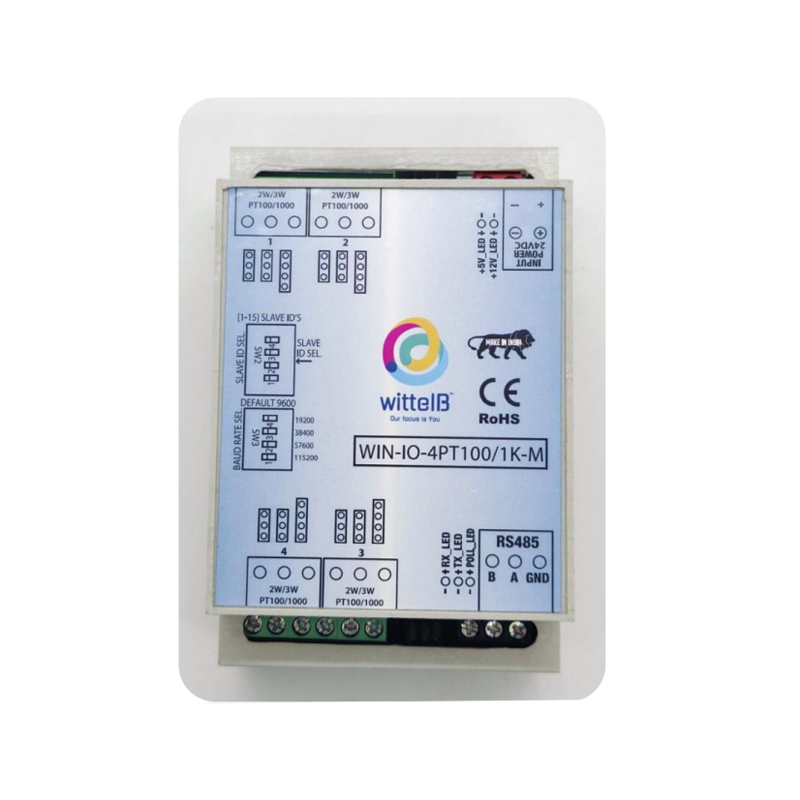

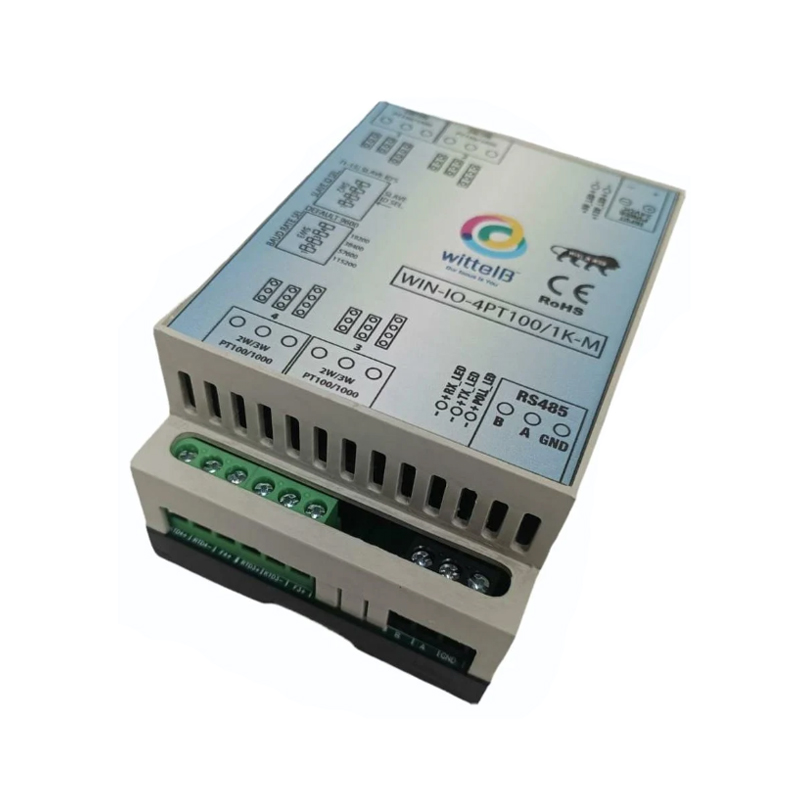

WIN-IO-4PT100/1000M 4-Channel PT100/PT1000 RTD to Modbus RS485 Module - DIN Rail Mount
The WIN-IO-4PT100/1000M is a DIN-rail mountable industrial module that converts signals from four 2- or 3-wire PT100 or PT1000 RTD temperature sensors into Modbus RTU over a long-range RS-485 network, compatible with PLCs, SCADA, and industrial automation systems.
Features
- Converts four 2- or 3-wire PT100/PT1000 RTD inputs to Modbus RTU (RS-485).
- Long-range RS-485 communication up to 700 meters without repeaters.
- DIN-rail mountable enclosure with LED status indicators for easy integration.
- Optical isolation and robust ESD/EFT protection for harsh industrial environments.
- Simple configuration via internal DIP switches for slave ID and baud rate.
Out of stock
The WIN-IO-4PT100/1000M is a signal conditioning and communication module designed for industrial temperature monitoring. It interfaces directly with up to four platinum resistance temperature detectors (RTDs), supporting both PT100 and PT1000 types in 2- or 3-wire configurations. The module performs the necessary signal conditioning and digitization, outputting the temperature data via a robust, optically isolated RS-485 interface using the standard Modbus RTU protocol.
Housed in a compact DIN-rail enclosure, it is built for reliability in electrically noisy environments. Features like resettable fuses, high-grade optical isolation, and surge protection (ESD up to ±30 kV) ensure stable operation and protect connected equipment. Its low power consumption and straightforward DIP-switch configuration make it suitable for integration into existing automation panels, HVAC control systems, and process monitoring networks.
Additional Information
| Weight | 0.14 kg |
|---|---|
| Dimensions | 7 × 11 × 5 cm |
