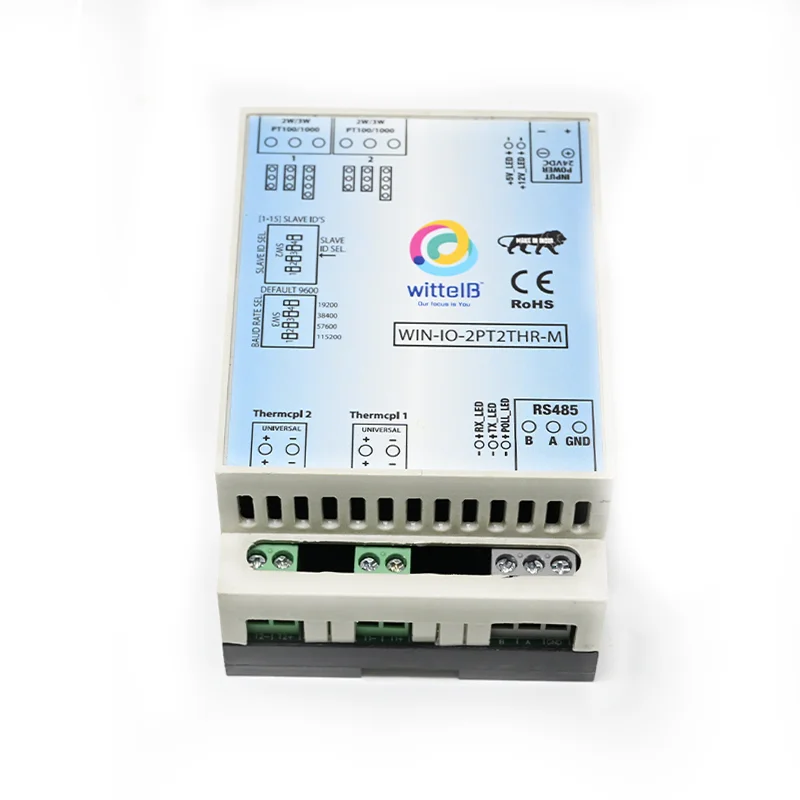

WIN-IO-2PT2THM 2-Channel RTD & 2-Channel Thermocouple to Modbus RS485 Module
The WIN-IO-2PT2THM is a DIN-rail mountable industrial temperature measurement module that converts two RTD (PT100/PT1000) and two thermocouple (K, J, N, R, S, T, E, B) inputs into a Modbus RTU signal over an isolated RS485 interface for integration into PLCs, SCADA, and industrial automation systems.
Features
- Multi-channel input for two RTDs (PT100/PT1000) and two thermocouples (K, J, N, R, S, T, E, B) with high-accuracy 15-bit/19-bit ADC resolution.
- Modbus RTU protocol over RS485 enables robust, long-distance communication up to 700 meters for remote monitoring and control.
- Optical isolation and resettable fuse protection ensure signal integrity and safeguard against reverse polarity and electrical transients.
- Simple DIP-switch configuration for baud rate (9600-115200 bps) and slave ID (1-15) eliminates complex software setup.
- Compact, DIN-rail mountable industrial housing with LED status indicators, powered by 24V AC/DC for low-power, reliable operation.
Out of stock
The WIN-IO-2PT2THM is a dedicated industrial interface module designed for precise temperature acquisition in automation and process control environments. It bridges the gap between analog temperature sensors and digital control networks by providing isolated signal conditioning for RTDs and thermocouples, outputting standardized Modbus RTU data frames over a robust RS485 bus.
Engineered for harsh industrial settings, the module incorporates optical isolation and protective fuses to defend against ground loops, ESD, and electrical fast transients (EFT). Its low-power design and DIN-rail form factor make it ideal for panel integration, while the configurable communication parameters allow seamless connection to PLCs, HMIs, and data acquisition systems without firmware modifications.
Additional Information
| Weight | 0.218 kg |
|---|---|
| Dimensions | 13 × 11 × 10 cm |
