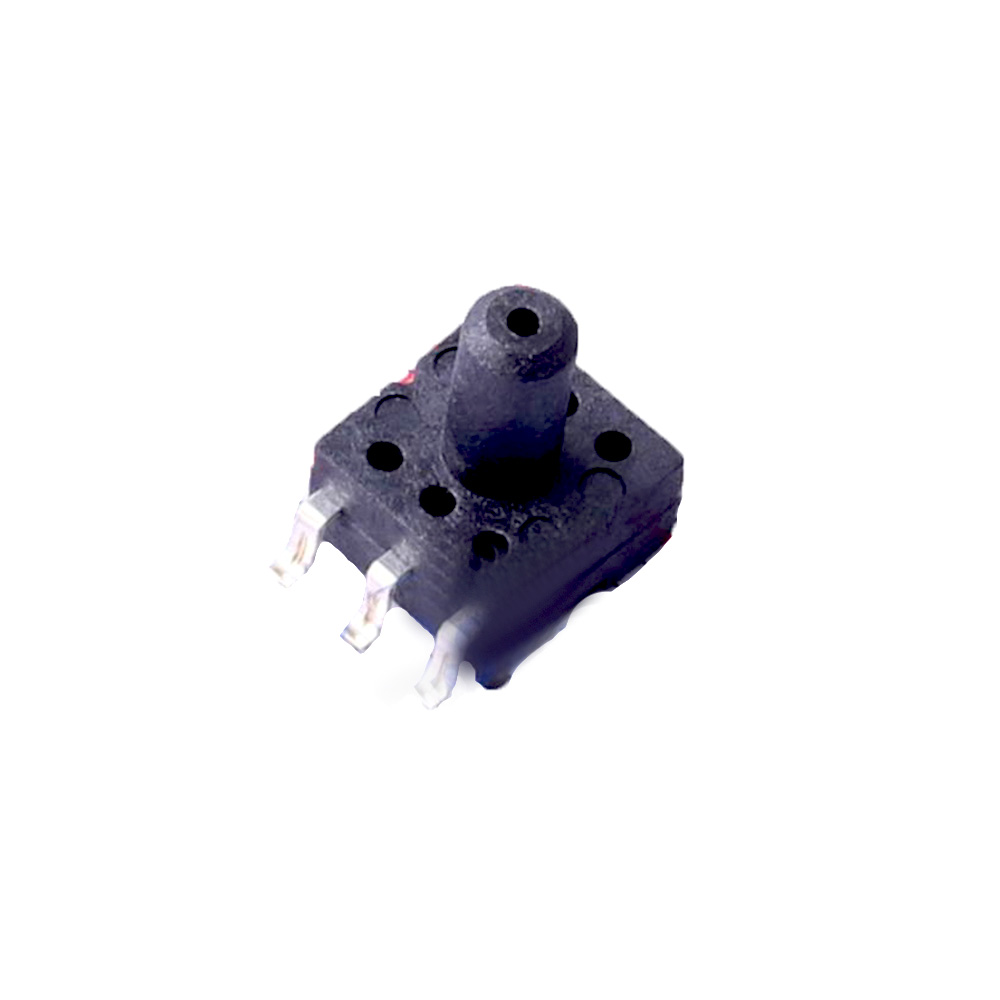

WFSensor WF100SPZ 0.4BG S6 AT Pressure Sensor, 0-40 kPa Gauge, SOP-6-2.54mm Package
The WFSensor WF100SPZ 0.4BG S6 AT is a silicon piezoresistive gauge pressure sensor delivering an analog voltage output for pressure measurement in non-corrosive gases. Housed in a compact SOP-6-2.54mm package, it is compatible with 5-10V DC systems and suitable for integration into consumer electronics, medical devices, and industrial control applications.
Features
- Silicon MEMS piezoresistive gauge pressure sensor with 0-40 kPa measurement range.
- Analog voltage output compatible with 5-10V DC supply voltage.
- Compact SOP-6-2.54mm DIP/SMD package for easy PCB integration.
- Wide operating temperature range from -40°C to 125°C.
- Designed for non-corrosive, non-conductive gas media applications.
Out of stock
The WF100SPZ 0.4BG S6 AT is a MEMS-based piezoresistive pressure sensor that translates applied pressure into a proportional analog voltage signal. Its silicon sensing element provides stable and repeatable measurements, housed in a robust SOP package suitable for automated assembly processes.
Engineered for long-term operational stability, this sensor is ideal for monitoring low-pressure gas systems in demanding environments. Its wide operating temperature range ensures reliable performance from industrial process monitoring to portable medical devices and HVAC controls.
Additional Information
| Weight | 0.01 kg |
|---|
