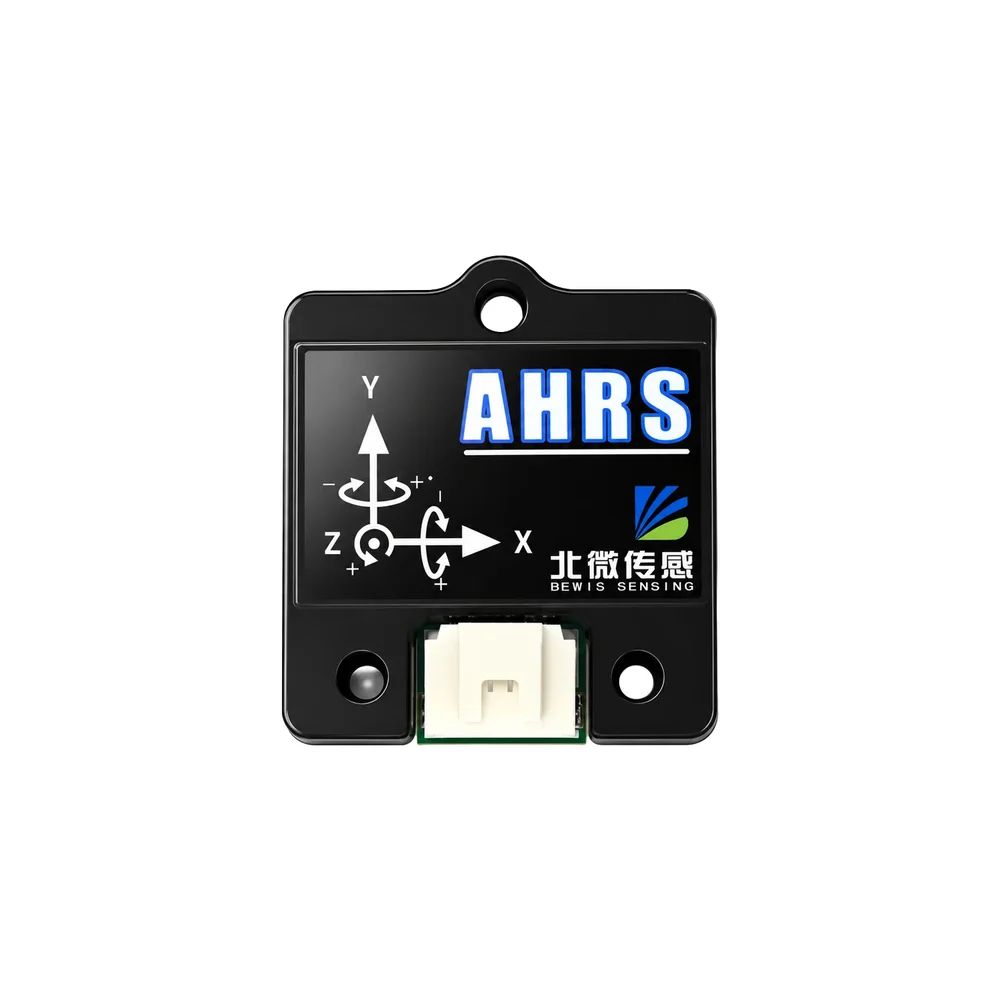

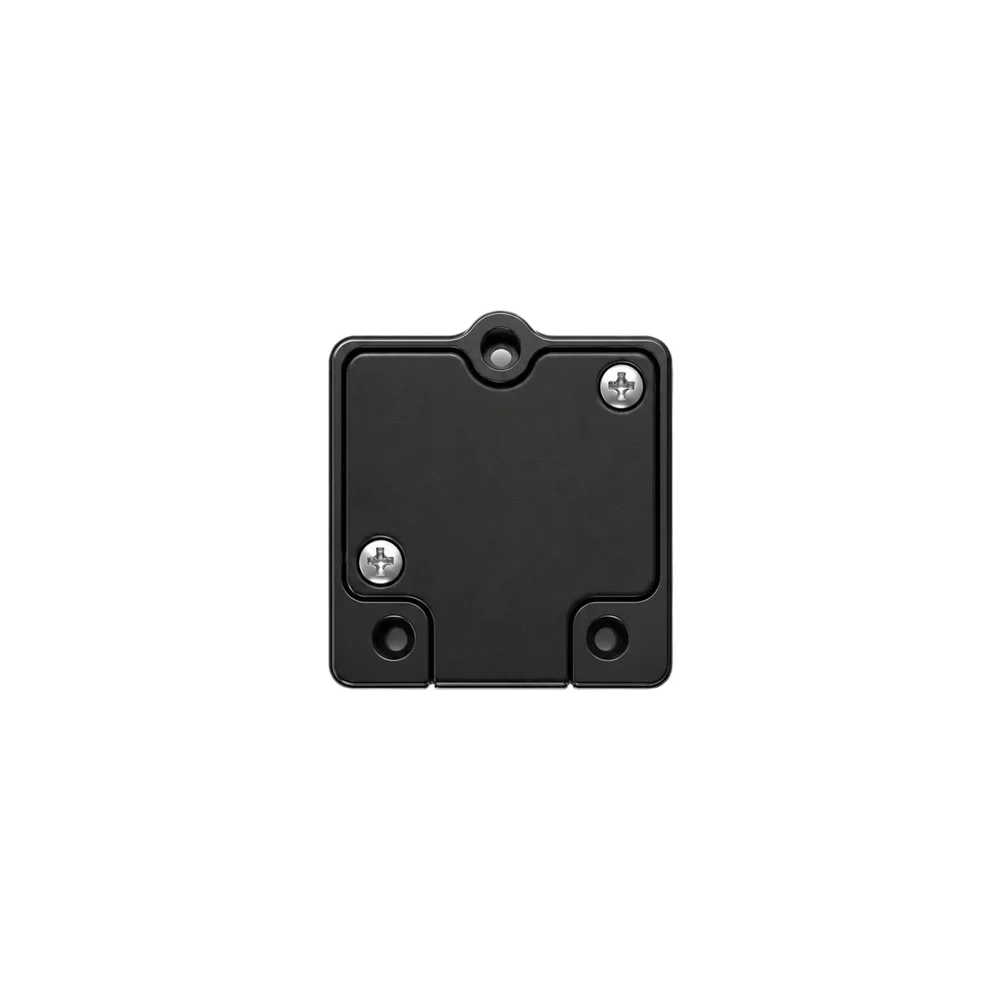

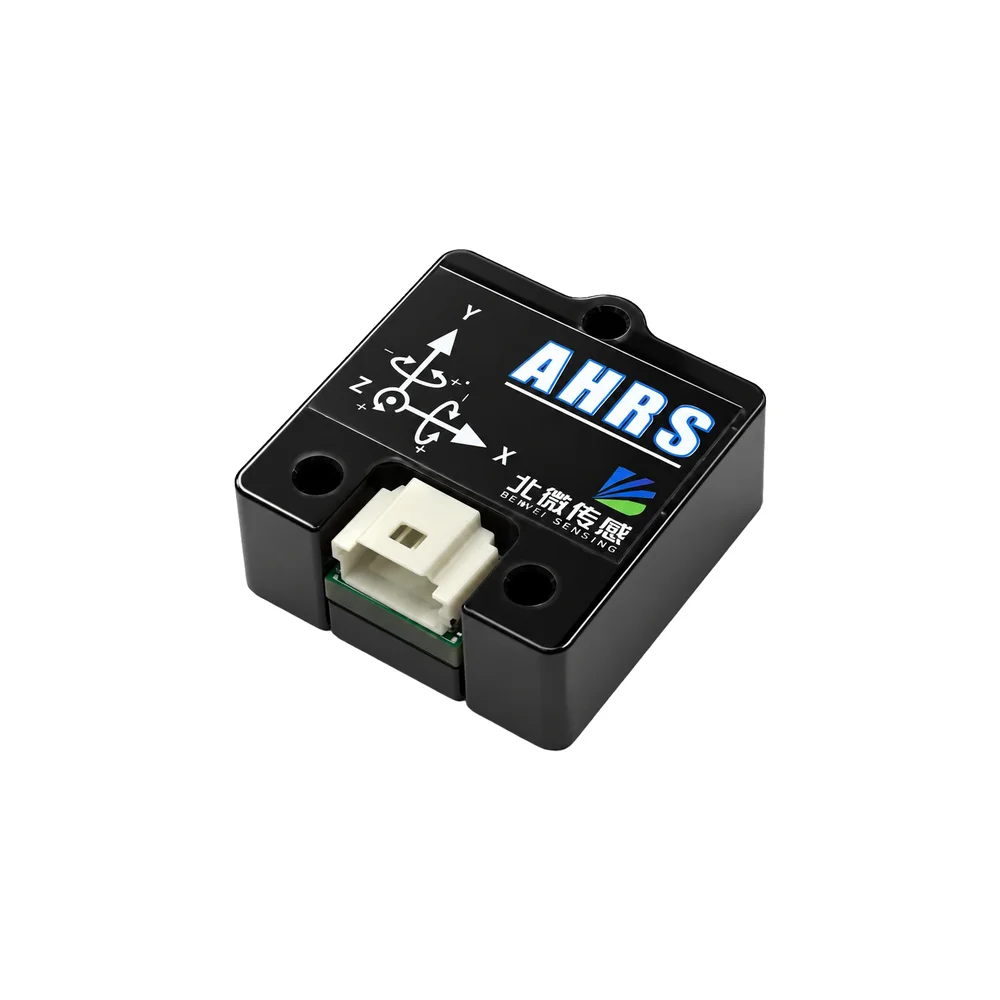

BWSENSING DMC630 9-Axis AHRS IMU Sensor High Precision MEMS Attitude & Heading, RS485

The DMC630 uses an industrial RS485 half-duplex serial interface. You will need an RS485 to USB converter or a microcontroller with an RS485 transceiver to communicate. Connect the module's A, B, and GND lines to your host controller, ensuring proper termination for bus stability. The baud rate is configurable between 9600 and 460800 bps.

The sensor provides a heading accuracy of ≤1° RMS under calibrated conditions. Accuracy can be affected by nearby ferromagnetic materials or strong electromagnetic fields. For best results, perform the built-in 16-point calibration routine in the final installation environment to compensate for hard and soft iron distortions.

While not explicitly listed in the provided specs, industrial RS485 IMU modules like the DMC630 typically operate on a wide DC input range, commonly 3.3V or 5V. Power consumption is generally low, in the tens to low hundreds of milliwatts. Please consult the official datasheet for the exact voltage requirements and current draw.

The DMC630 is an AHRS (Attitude and Heading Reference System), meaning it outputs processed orientation data. It provides real-time Euler angles (roll, pitch, yaw) and likely quaternions, which are calculated by its internal processor fusing data from all nine axes. This eliminates the need for complex sensor fusion algorithms on your host controller.

Yes. With an operating temperature range of -40℃ to +85℃ and an industrial RS485 interface, it is designed for harsh conditions. The MEMS sensors are robust against vibration, and the RS485 protocol provides excellent noise immunity for long-distance communication in electrically noisy industrial or outdoor settings.
