SparkFun Triple Axis Accelerometer Breakout LIS3DH SEN-20659 With Headers
The SparkFun LIS3DH Triple Axis Accelerometer Breakout is a low-power 3-axis MEMS accelerometer module with 12-bit resolution, designed for easy integration with 3.3V microcontrollers like Arduino, Raspberry Pi, and ESP32 via I2C or SPI interfaces.
Features
- High-performance LIS3DH MEMS accelerometer with 12-bit resolution.
- Selectable full-scale ranges: ±2g, ±4g, ±8g, and ±16g.
- Dual digital interface support: I2C (default) and SPI communication.
- Advanced embedded functions: free-fall, motion, and orientation detection.
- Low-power operation with multiple modes and a 32-level FIFO buffer.
Out of stock

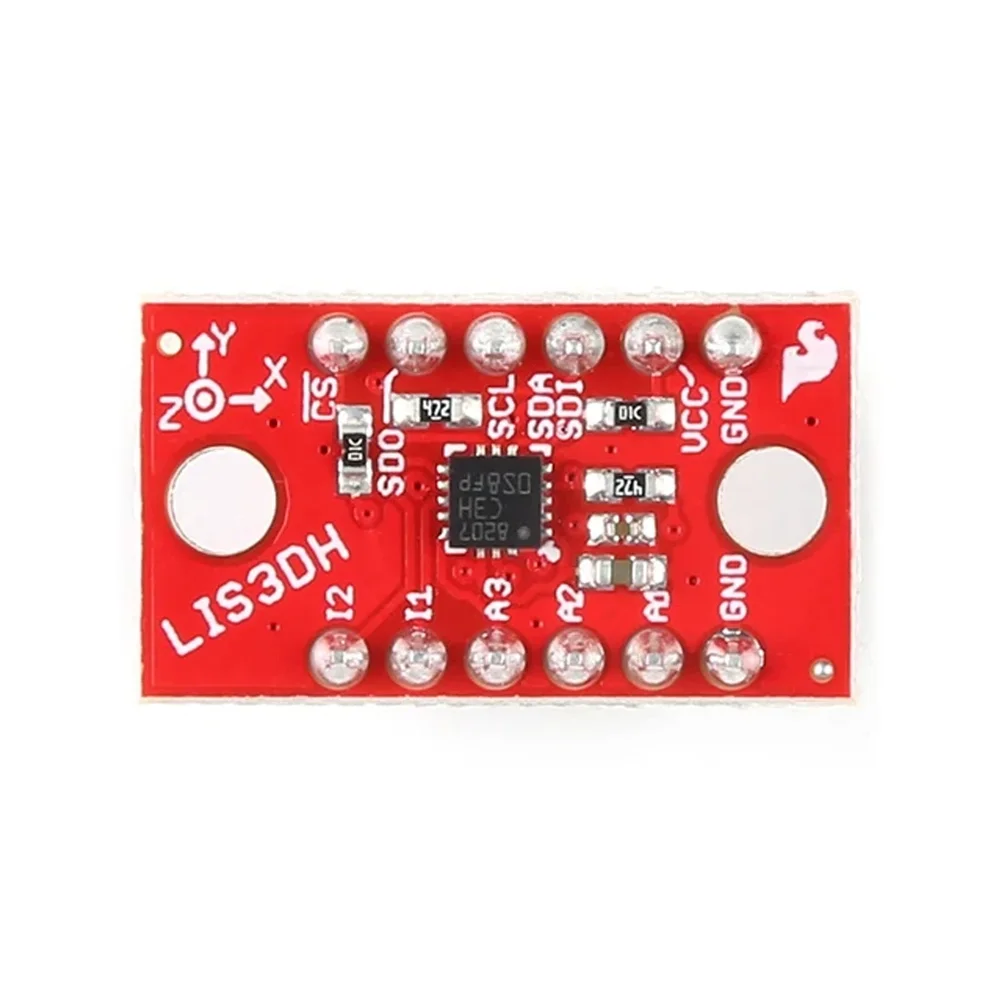

The SparkFun LIS3DH breakout board provides a robust and accessible interface to the STMicroelectronics LIS3DH MEMS accelerometer. The sensor utilizes a capacitive sensing principle to measure static acceleration (tilt) and dynamic acceleration (shock, vibration) across three orthogonal axes. Its integrated signal conditioning and ADC deliver stable, high-resolution data.

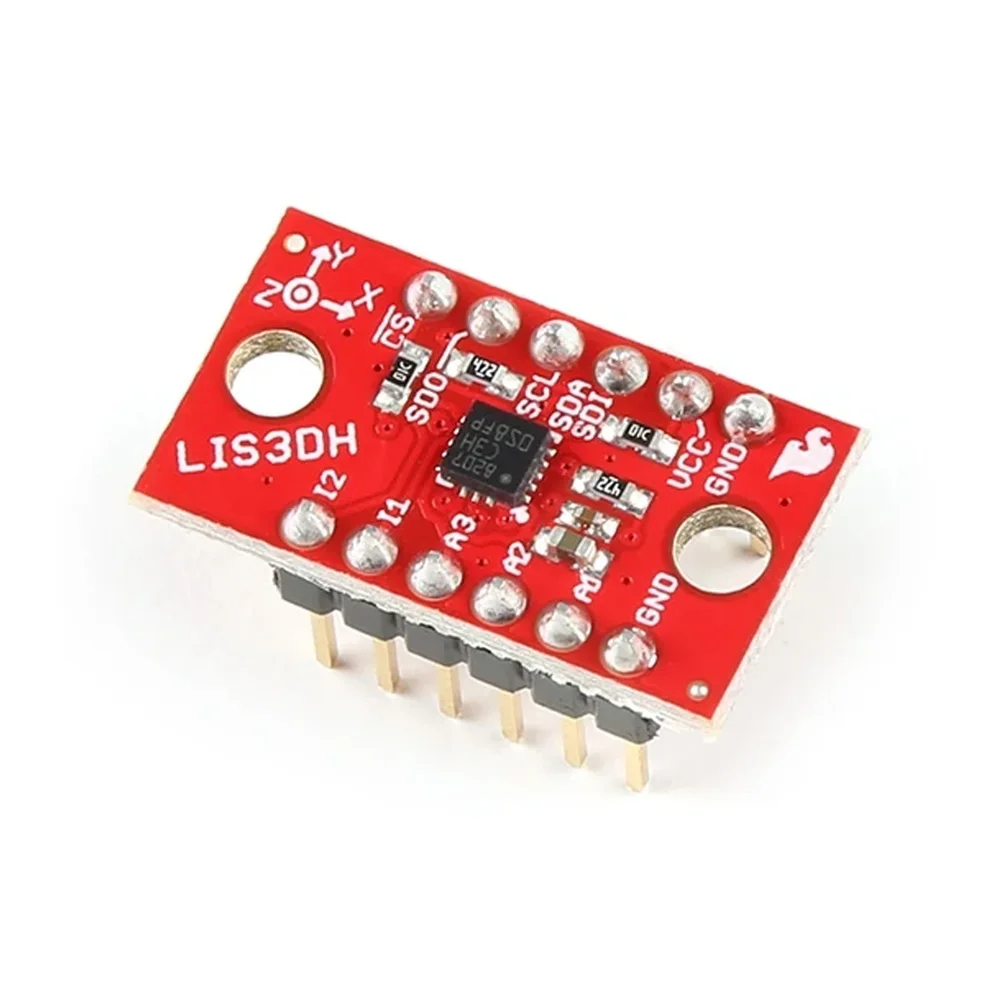

Designed for prototyping, the module operates from 1.7V to 3.6V, making it ideal for battery-powered portable devices. The onboard voltage regulator and level shifting ensure clean power and logic compatibility for 3.3V systems. The pre-soldered headers facilitate rapid connection to breadboards and development platforms.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 2.3 × 1.4 × 1.2 cm |
