WeAct Studio STM32H723VGT6-H723VG LCD Core Demo Board

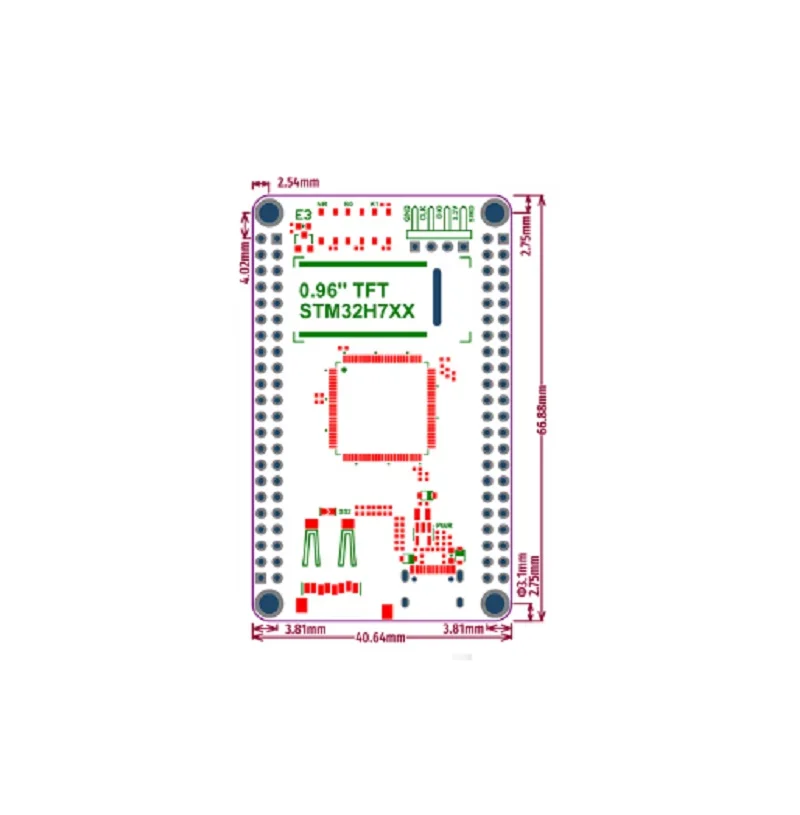

WeAct Studio STM32H723VGT6-H723VG LCD Core Demo Board - Image 2
WeAct Studio STM32H723VGT6-H723VG LCD Core Demo Board - Image 3
SKU: IOWC-1218
📋 GST Invoice Available

WeAct Studio STM32H723VGT6-H723VG LCD Core Demo Board

₹1,559.00 (Inclusive of all taxes)
Out of Stock

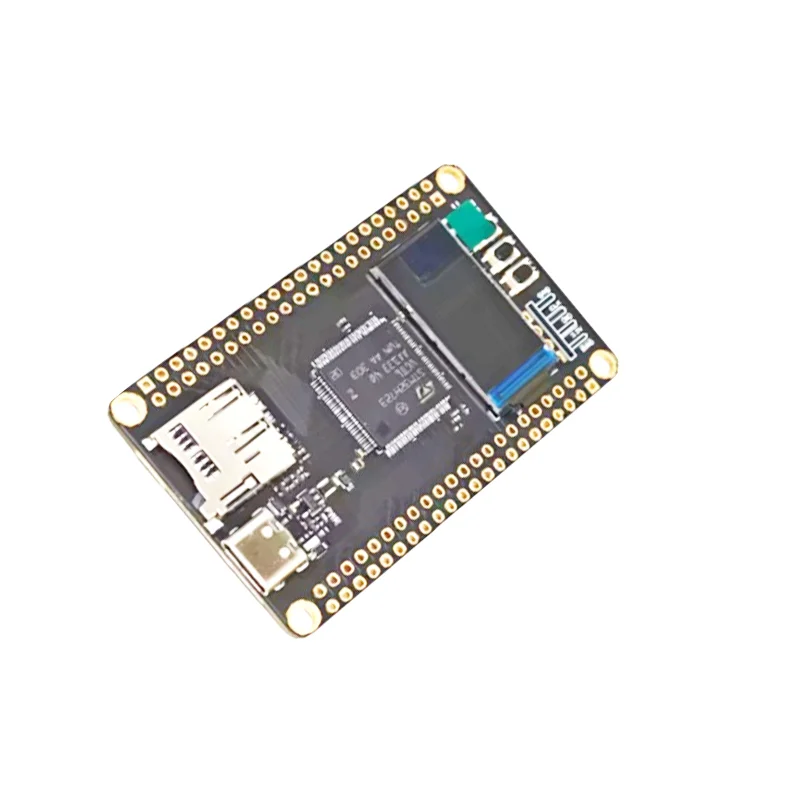

WeAct Studio’s STM32H723VGT6-H723VG LCD Core Demo Board is a high-performance development platform featuring a 550 MHz Arm Cortex-M7 MCU with 1 MB Flash and 564 KB RAM, designed for advanced DSP and graphics-accelerated embedded applications.

Features

  • High-performance Arm Cortex-M7 core running at up to 550 MHz for demanding embedded tasks.
  • Integrated 1 MB Flash and 564 KB RAM to support complex applications and large data buffers.
  • On-board LCD controller with Chrom-ART hardware graphics acceleration for efficient display rendering.
  • Includes DP-FPU and L1 cache for enhanced digital signal processing and computational speed.
  • External memory interface for expanded storage and connectivity options for advanced peripherals.

Out of stock

Description

The WeAct Studio STM32H723VGT6-H723VG LCD Core Demo Board is engineered around the STM32H723VGT6 microcontroller, leveraging the Arm Cortex-M7 core’s 550 MHz clock speed to deliver exceptional processing power for real-time control, digital signal processing, and graphical user interfaces. Its architecture includes a double-precision floating-point unit (DP-FPU) and L1 cache, significantly accelerating mathematical operations and data access.

This board is specifically designed for applications requiring a local display, featuring an integrated LCD controller and Chrom-ART Acceleratorâ„¢ for hardware-accelerated graphics rendering, reducing CPU load. The combination of substantial on-chip memory (1 MB Flash, 564 KB RAM) and an external memory interface provides developers with the resources needed for sophisticated firmware, complex algorithms, and buffering high-resolution display data.

Key Features

  • High-speed 550 MHz Arm Cortex-M7 CPU with DP-FPU for intensive computational workloads.
  • Chrom-ART Acceleratorâ„¢ for hardware-accelerated graphics, optimizing display performance.
  • Ample on-chip memory with 1 MB Flash for code storage and 564 KB RAM for data processing.
  • External memory interface (FSMC/FMC) supports connection to additional RAM, NOR/NAND flash, or LCD displays.
  • Comprehensive peripheral set including timers, ADCs, communication interfaces (USART, SPI, I2C, USB).
  • L1 cache (I/D) improves execution efficiency for critical routines and data.
  • Robust power management suite supporting multiple low-power modes for energy-sensitive applications.

Applications

  • Advanced Human-Machine Interfaces (HMI) with color TFT displays.
  • Industrial control systems requiring real-time processing and graphical feedback.
  • Digital signal processing (DSP) and audio/visual processing applications.
  • Prototyping high-performance IoT edge devices with local user interfaces.
  • Embedded systems development for automotive, medical, or instrumentation.

Technical Specifications

MicrocontrollerSTM32H723VGT6
CPU CoreArm Cortex-M7
CPU FrequencyUp to 550 MHz
Flash Memory1 MB
RAM564 KB
Graphics AccelerationChrom-ART Accelerator
Floating-Point UnitDouble-Precision FPU (DP-FPU)
CacheL1 Cache (I/D)
External Memory InterfaceFSMC/FMC

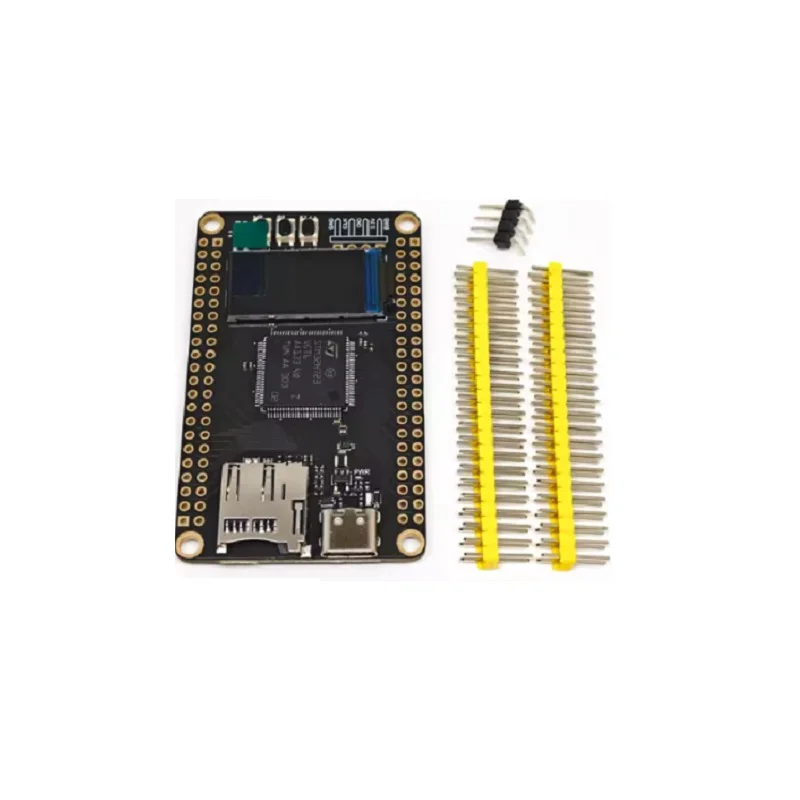

Package Includes1x STM32H723VGT6-H723VG LCD Core Demo Board

Frequently Asked Questions

What development environment can I use with this STM32H723 board?

You can develop for this board using STMicroelectronics' STM32CubeIDE or STM32CubeMX with the H7 HAL/LL libraries. It is also compatible with ARM Keil MDK, IAR Embedded Workbench, and PlatformIO. Start by installing the STM32H7 series device pack and configuring the system clock and peripherals via CubeMX before writing your application code in C/C++.

How do I connect and drive an LCD display with this core board?

The board's STM32H723VGT6 MCU includes a built-in LCD-TFT controller. Connect your parallel RGB display to the board's FSMC/FMC interface pins. Use STM32CubeMX to enable the LTDC peripheral, configure timings for your specific display panel, and allocate a frame buffer in SDRAM or internal RAM. The Chrom-ART accelerator can then be used via the HAL to perform hardware-accelerated 2D operations like blending and filling.

What is the power supply requirement for the STM32H723VGT6 demo board?

The board typically requires a regulated 3.3V supply for the MCU core and I/O. Check the specific pinout for the VDD input. The high-speed 550 MHz core can draw significant current during peak operation, so ensure your power source can provide adequate current, often in the range of several hundred milliamps, especially when driving external peripherals or a display backlight.

Package Includes

  • 1 x WeAct Studio STM32H723VGT6-H723VG LCD Core Demo Board

Additional Information

Weight 0.035 kg
Dimensions 6 × 10 × 2 cm
