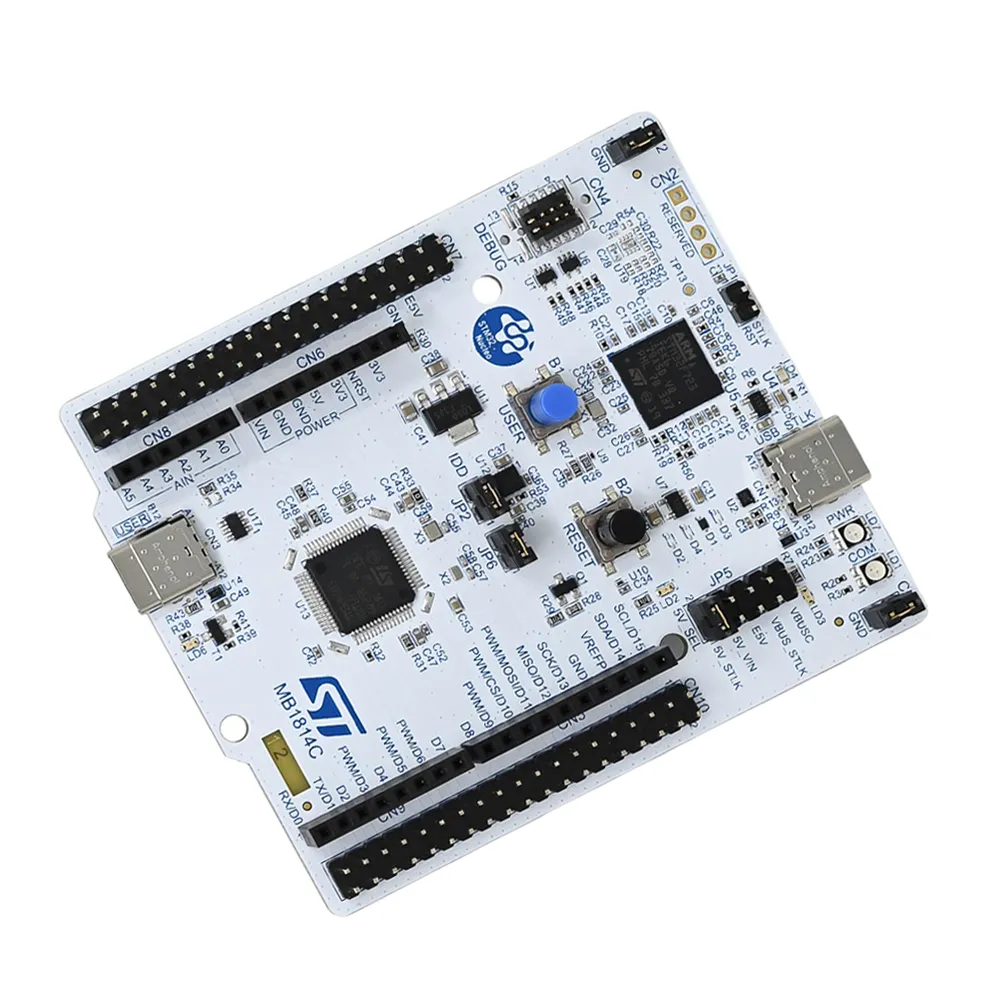

STM32 Nucleo-64 w/ ST-LINK & Arduino Support

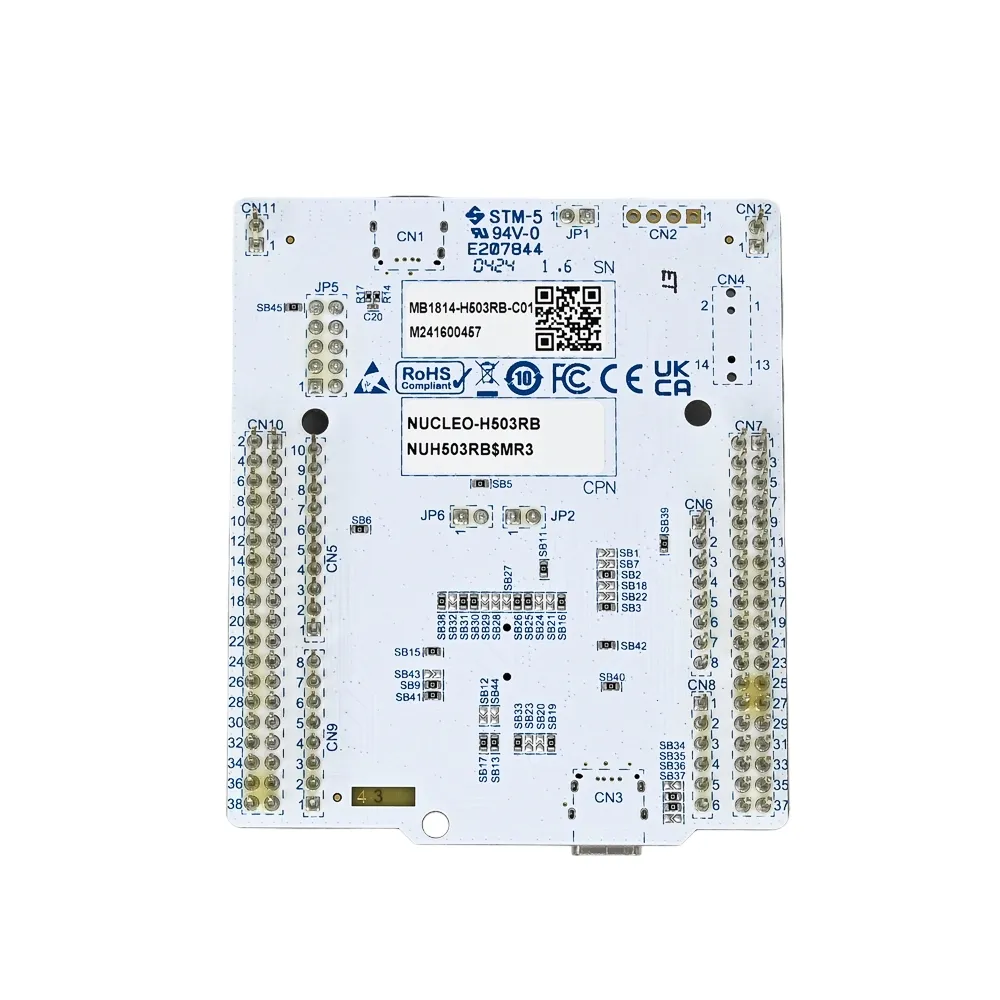

STM32 Nucleo-64 w/ ST-LINK & Arduino Support - Image 2
SKU: SBCD-0031
📋 GST Invoice Available

STM32 Nucleo-64 w/ ST-LINK & Arduino Support

₹3,459.00 (Inclusive of all taxes)
Out of Stock

The STM32 Nucleo-64 provides an affordable and flexible platform for evaluating and prototyping with STM32 microcontrollers. Featuring an on-board ST-LINK debugger and Arduino Uno V3 compatibility, it streamlines development for embedded applications.

Features

  • Features an STM32 microcontroller for powerful embedded application development.
  • Integrated ST-LINK/V2-1 debugger/programmer eliminates the need for external tools.
  • Arduino Uno V3 connectivity and ST morpho headers ensure extensive hardware expansion.
  • Flexible power supply via USB VBUS or external sources for versatile deployment.

Out of stock

Description

The STM32 Nucleo-64 Development Board serves as an accessible and versatile platform for evaluating and prototyping a wide range of STM32 microcontrollers. Engineered for embedded engineers, students, and hobbyists, this board facilitates rapid development by offering Arduino Uno V3 compatibility and comprehensive ST morpho headers for seamless hardware expansion and peripheral integration.

Equipped with an integrated ST-LINK/V2-1 debugger/programmer, the Nucleo-64 board streamlines the debugging and flashing process, removing the necessity for additional debugging hardware. It fully supports the STM32Cube software ecosystem, alongside popular IDEs like STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM, accelerating firmware development and validation. Its flexible power options and inherent low-power design make it ideal for both high-performance and energy-efficient embedded systems.

Key Features

  • Supports STM32 microcontrollers in LQFP64/LQFP48 packages, enabling a broad selection of MCUs.
  • Features an on-board ST-LINK/V2-1 debugger/programmer for direct firmware upload and real-time debugging.
  • Provides Arduino Uno V3 compatible connectivity, ensuring access to a vast ecosystem of shields.
  • Includes ST morpho extension headers, granting full access to all MCU I/Os for custom peripheral integration.
  • Equipped with an on-board 32.768 kHz crystal oscillator for accurate real-time clock (RTC) functionality.
  • Comes with a user LED and two push-buttons (user and reset) for basic interaction and control.
  • Offers USB connectivity with USB re-enumeration capabilities, facilitating various USB device roles.
  • Compatible with key development environments including STM32CubeIDE, IAR Embedded Workbench, and Keil MDK-ARM.

Applications

  • Rapid prototyping and evaluation of STM32 microcontrollers for various embedded systems.
  • Development of IoT edge devices, smart sensors, and connected applications.
  • Control systems for robotics, industrial automation, and motor drives.
  • Educational platforms for learning ARM Cortex-M architecture and embedded programming.
  • Implementation of low-power applications requiring efficient resource management.

Technical Specifications

Microcontroller Core32-bit ARM Cortex-M (Specific MCU depends on variant)
On-board DebuggerST-LINK/V2-1
RAM32 KB SRAM
Flash Memory128 KB Flash
Operating Voltage3.3V (logic level)
ConnectivityUSB, Arduino Uno V3 Headers, ST Morpho Headers
Clock Support32.768 kHz LSE, up to 24/48 MHz HSE (external/internal)
Power OptionsUSB VBUS or External Supply
Development ToolsSTM32CubeIDE, IAR Embedded Workbench, Keil MDK-ARM

Frequently Asked Questions

What is the primary function of the integrated ST-LINK debugger on the Nucleo-64 board?

The on-board ST-LINK/V2-1 debugger/programmer allows for direct firmware flashing and real-time debugging of the STM32 microcontroller. This eliminates the need for external debugging probes, simplifying the development workflow and making it more cost-effective for prototyping and evaluation.

How does the Nucleo-64 board ensure hardware expansion compatibility?

The Nucleo-64 board offers dual expansion options. It includes Arduino Uno V3 compatible headers, enabling the use of a wide range of existing Arduino shields. Additionally, ST morpho extension headers provide access to all STM32 microcontroller I/O pins, allowing for flexible connection to custom peripherals and modules.

What software development environments are supported by the STM32 Nucleo-64?

The STM32 Nucleo-64 board is compatible with several industry-standard development environments. These include STMicroelectronics' own STM32CubeIDE, as well as third-party tools like IAR Embedded Workbench and Keil MDK-ARM. This broad support provides developers with flexibility in their preferred toolchain for firmware creation and debugging.

Can the Nucleo-64 board be powered through multiple methods?

Yes, the Nucleo-64 board supports flexible power supply options. It can be conveniently powered via the USB VBUS connector, which is ideal for desktop development setups. Alternatively, it can be supplied through an external power source, offering versatility for integration into various embedded applications or standalone operations.

Package Includes

  • 1 x STM32 Nucleo-64 Development Board

Additional Information

Weight 0.038 kg
Dimensions 8 × 7 cm
