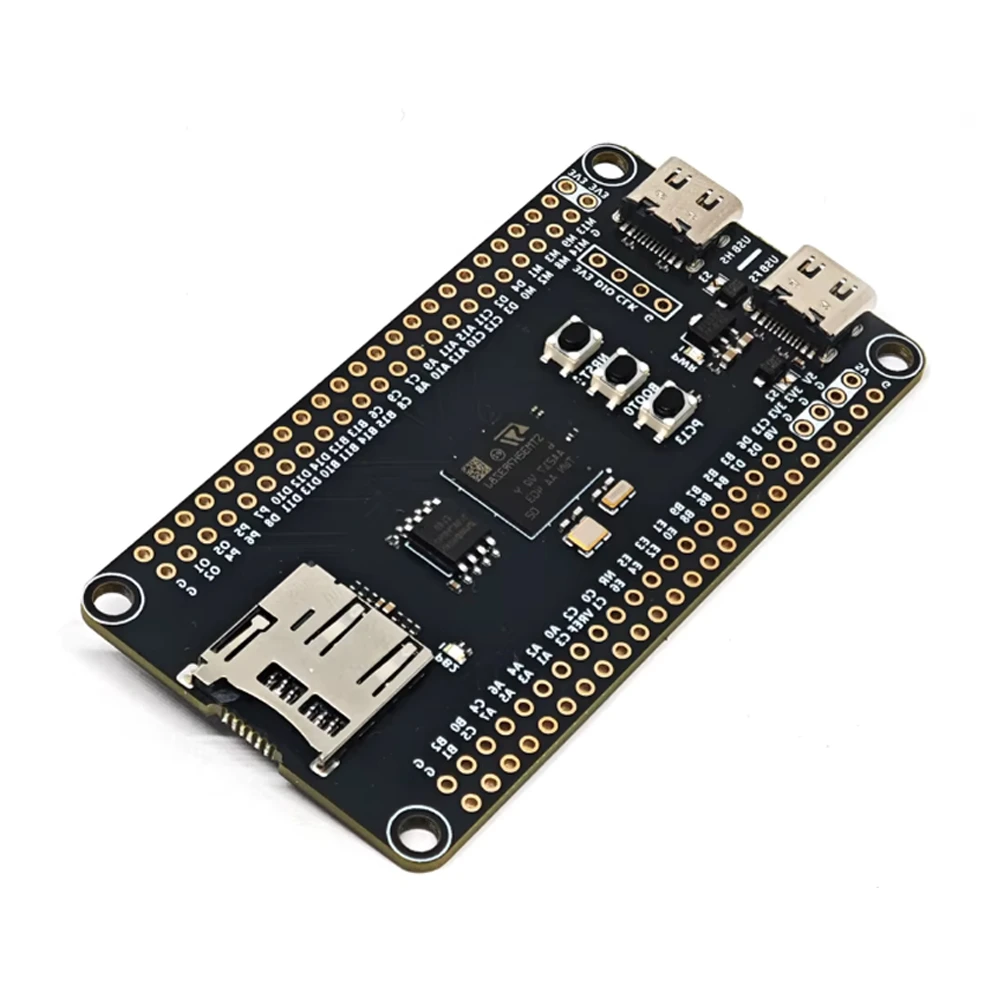

WeAct Studio STM32H7R3Z8J6 480MHz Cortex M7 Development Board
The WeAct Studio STM32H7R3Z8J6 development board features a high-performance 480MHz Arm Cortex-M7 core, extensive GPIO, and rich communication interfaces (UART, SPI, I2C, CAN FD), making it ideal for demanding industrial control, robotics, and high-speed IoT applications.
Features
- 480MHz Cortex-M7 Core: Delivers exceptional processing power for real-time control, sensor fusion, and digital signal processing tasks.
- Rich Peripheral Set: Includes multiple UART/USART, SPI, I2C, I2S, and CAN FD interfaces for broad sensor and actuator connectivity.
- Advanced Analog Capabilities: Features dual 12-bit ADCs (17 channels) and a 12-bit DAC for high-precision measurement and control.
- Flexible Memory & Clocking: Equipped with 32KB I/D cache, Octo-SPI interface for external flash, and a robust clock system with 6 sources and 3 PLLs.

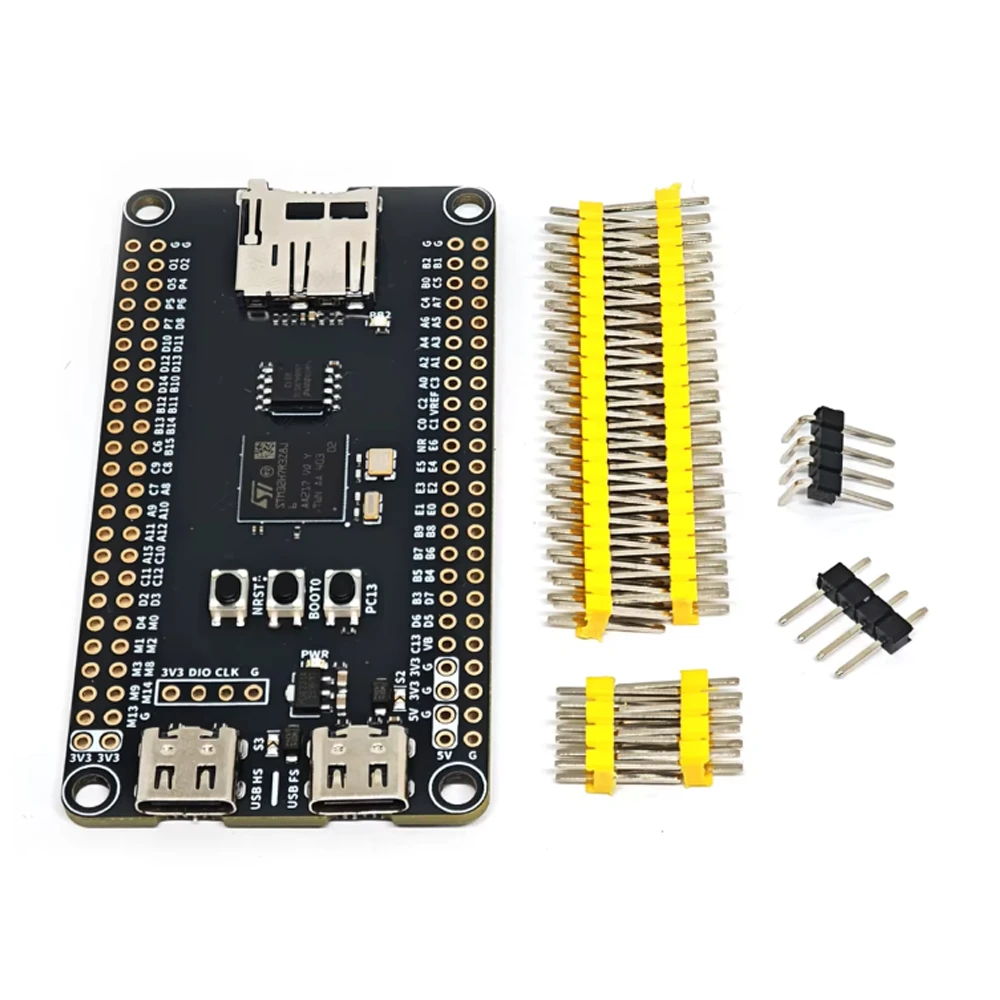

- Compact & Prototype-Ready: Comes with pre-soldered headers, offering up to 94 GPIOs in a compact 79x38mm footprint for rapid system integration.
Out of stock
The WeAct Studio STM32H7R3Z8J6 development board is engineered around the high-performance STM32H7R3 MCU, leveraging a 480MHz Arm Cortex-M7 core with dedicated instruction and data caches. This architecture provides the computational throughput required for complex embedded applications such as motor control, audio processing, and secure industrial IoT gateways.
Built for system integrators and embedded developers, the board offers a comprehensive suite of industrial-grade peripherals, including 18 configurable timers, dual 12-bit ADCs, and a 12-bit DAC. Its robust clock system with multiple PLLs and clock safety ensures reliable operation in timing-critical environments. The inclusion of an Octo-SPI interface allows for high-speed external memory expansion, supporting data-intensive tasks.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 8 × 7 × 2 cm |
