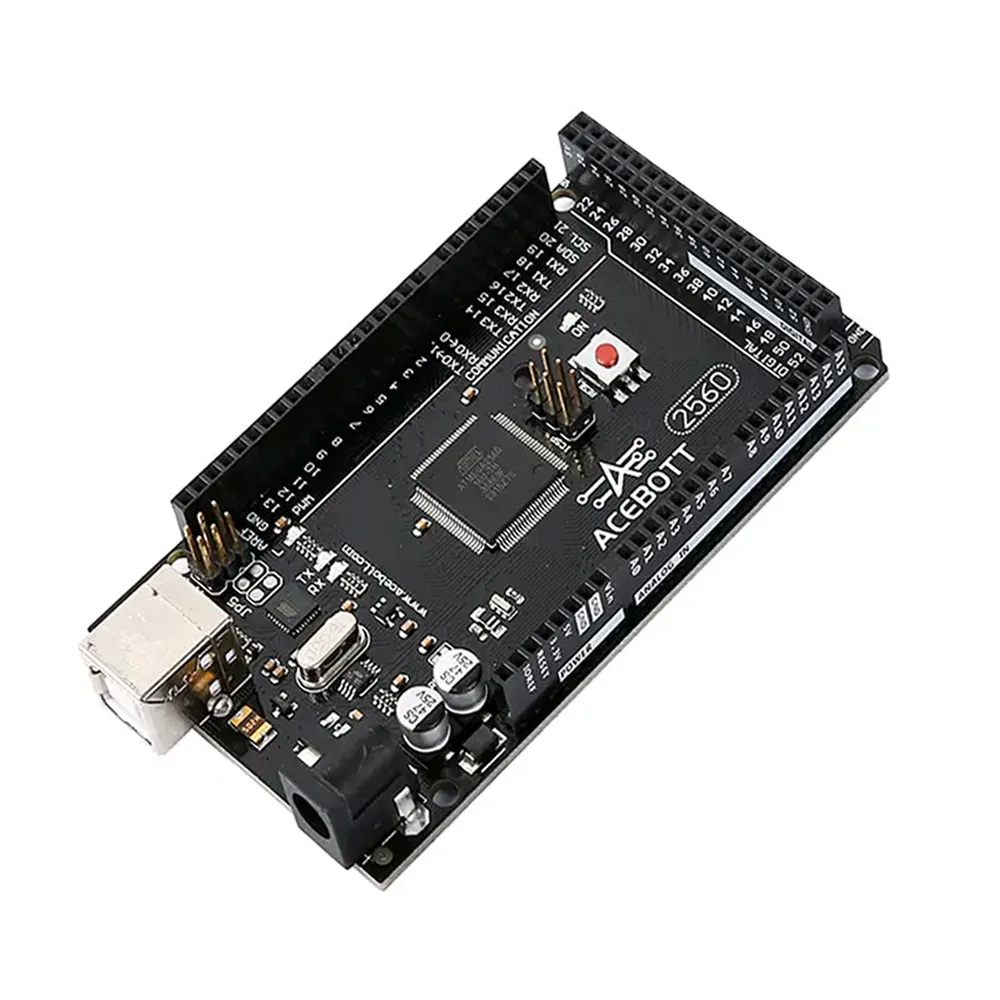

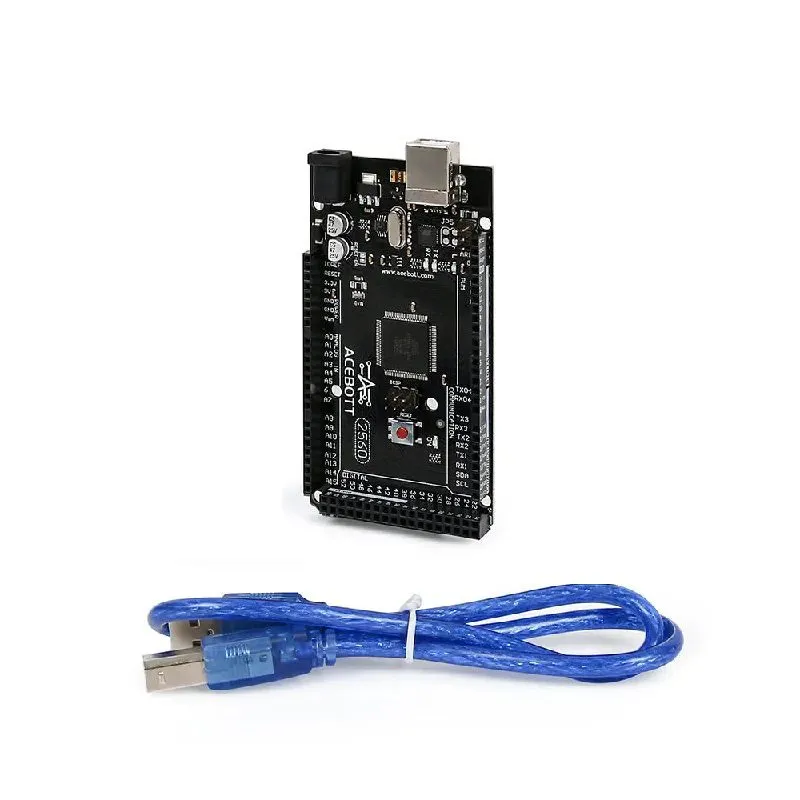

ACEBOTT MEGA 2560 R3 Development Board with USB Cable
The ACEBOTT MEGA 2560 R3 is an Arduino-compatible development board featuring an ATmega2560 microcontroller, offering 54 digital I/O pins and 16 analog inputs for extensive project versatility. It operates at 5V and provides a recommended input voltage range of 7-12V, making it ideal for a wide array of embedded systems and prototyping applications.
Features
- Powered by the robust ATmega2560 microcontroller, clocked at 16MHz.
- Offers extensive I/O with 54 digital pins (15 supporting PWM) and 16 analog inputs.
- Equipped with 256KB Flash, 8KB SRAM, and 4KB EEPROM for complex code and data storage.
- Fully compatible with the Arduino IDE and most Arduino Mega R3 expansion shields.
Out of stock
The ACEBOTT MEGA 2560 R3 Development Board serves as a powerful and versatile platform for advanced embedded projects, built around the ATmega2560 microcontroller. This board significantly expands upon the capabilities of smaller Arduino variants, providing 54 digital input/output pins, 15 of which support PWM output, alongside 16 analog input pins. Operating at 5V and featuring a 16 MHz clock speed, it delivers robust performance for demanding applications. Its generous memory configuration includes 256 KB of flash memory for program storage, 8 KB of SRAM for runtime data, and 4 KB of EEPROM for non-volatile data.
Designed for seamless integration into the Arduino ecosystem, the ACEBOTT MEGA 2560 R3 is fully compatible with the Arduino IDE and most shields developed for the Arduino Mega R3. Connectivity is straightforward, incorporating a standard USB port for programming and serial communication, a power socket for external power supply (7-12V recommended), an ICSP header for direct chip programming, and a reset button. This comprehensive feature set makes it an excellent choice for robotics, automation, and projects requiring extensive sensor and actuator interfacing.
Additional Information
| Weight | 0.068 kg |
|---|---|
| Dimensions | 19 × 13 × 3 cm |
